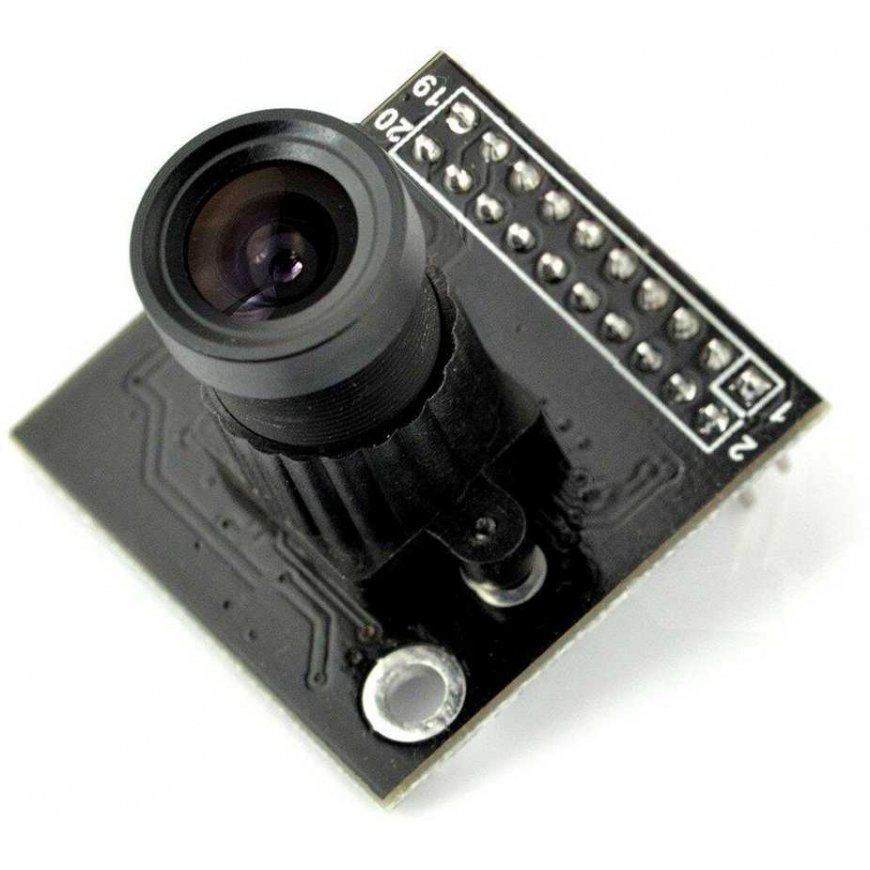

ArduCam OV5642 5MPx camera module + lens HQ M12x0.5
49.00 €
Ikm. maksa no 2,16 €
3558764 AN-06664
5904422349912
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Camera module with OV5642 matrix, resolution 5 MPx, size 1/4" with output in JPEG format. The transfer rate at full resolution 2592x1944px is 15 frames per second. It has a lens M12x0.5 1/4". The device operates with a voltage of 3.3 V, interacts via a parallel interface.
Specifications:
- Supply voltage: 3.3V
- Matrix OV5642, CMOS, 5 MPx, 1/4"
- Built-in LDO voltage regulator
- Resolution: max. 2592x1944px (5 MPx)
- Pixel size: 1.4 x 1.4 µm
- Viewing range: 3673.6 x 2738.4 µm
- Speed (fps):
- 5 MPx (2592x1944): 15 frames per second
- 1080p (1920x1080): 30 frames per second
- 720p (1280x720): 60 frames per second
- VGA (640x480): 60 frames per second
- QVGA (320x240): 120 frames per second
- Output formats:
- YUV (422/420) / YCbCr422,
- RGB565/555/444,
- CCIR656,
- compressed 8-bit data
- 8/10-bit RAW RGB data
- 1/4" lens with M12x0.5 connector
