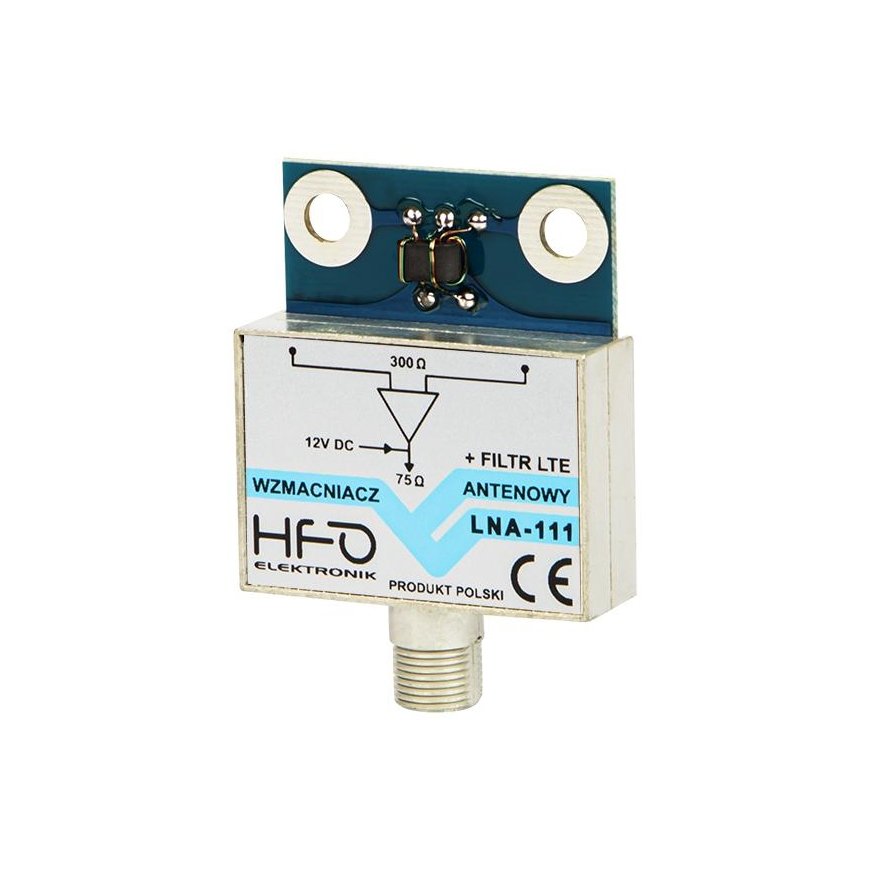

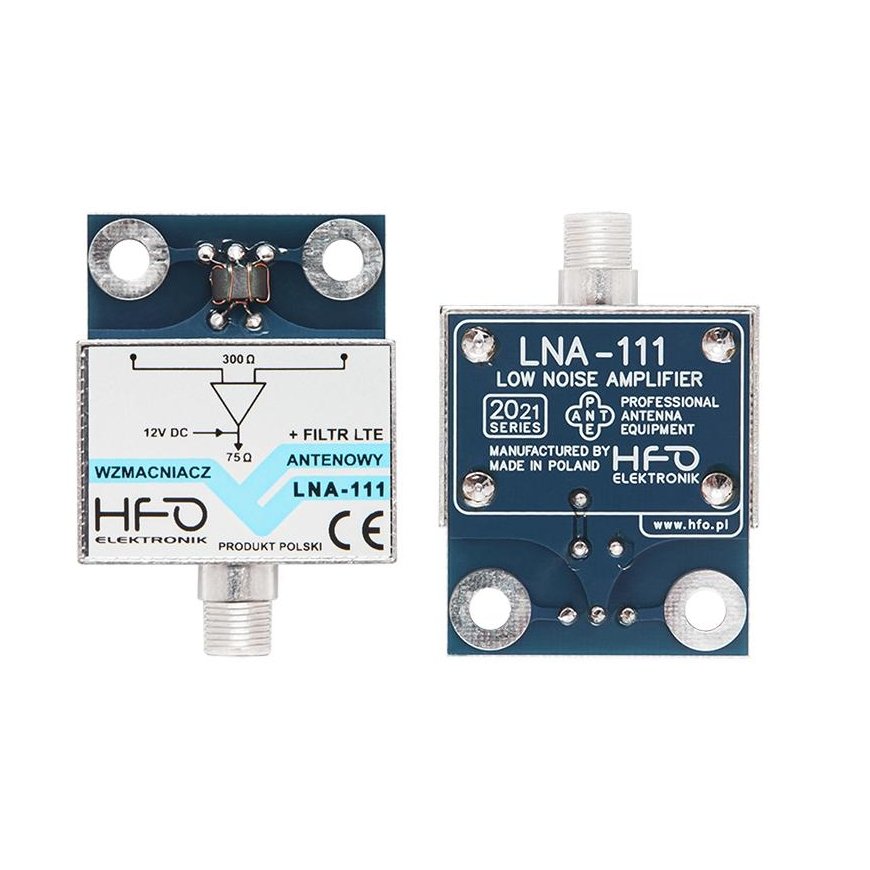

Blow Oem Antenna Amplifier LNA-111-5G 14dB HFO
23.42 €
3555731 3463
5900804123965
Piegāde 11-17 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The LNA-111 antenna preamplifier is used to amplify weak terrestrial television signals. It is designed to be mounted directly on the antenna terminals in the antenna box. This solution ensures amplification of weak signals already at the antenna output, which is especially important with a low signal-to-noise ratio. The shielding of the amplifier in the casting significantly reduces sensitivity to interference.
Specifications:
- Gain level: 14dB
- Gain frequency band: UHF and VHF (6-60 channels)
- Input impedance: 300 ohms
- Output impedance: 75 ohms
- Power supply voltage: DC 12V
- Current consumption: 30mA
- Temperature range: -33 – +55C
- Relative humidity: 20-80%
- Dimensions: 14x40x44mm (without F connector), 54mm (with F connector)
