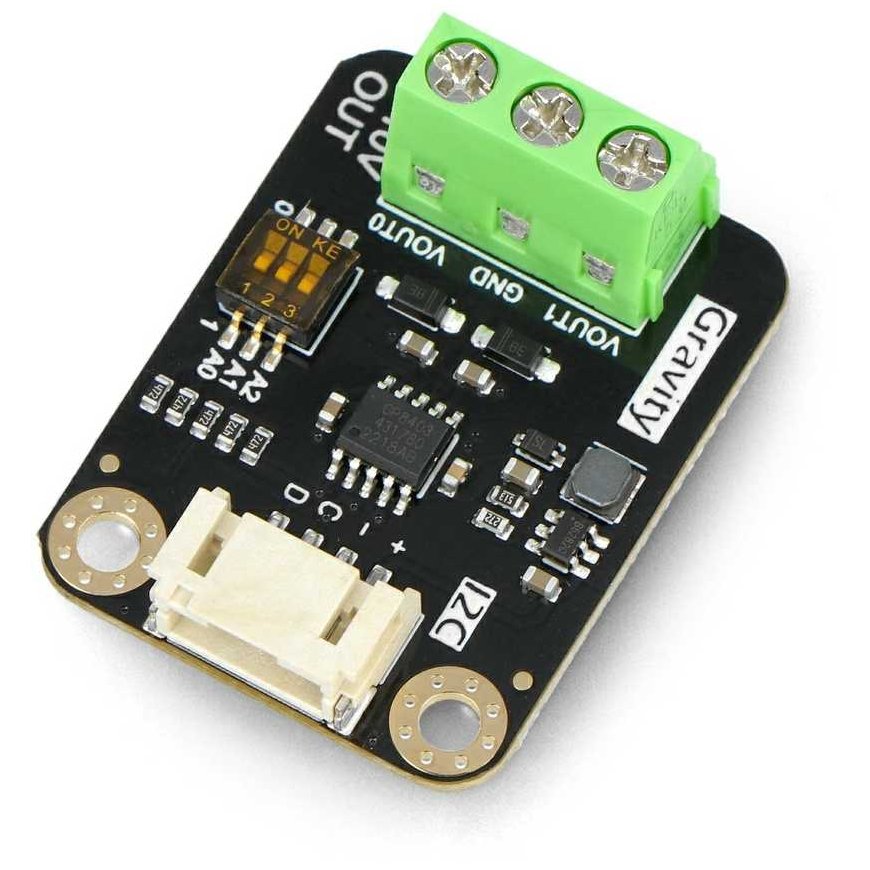

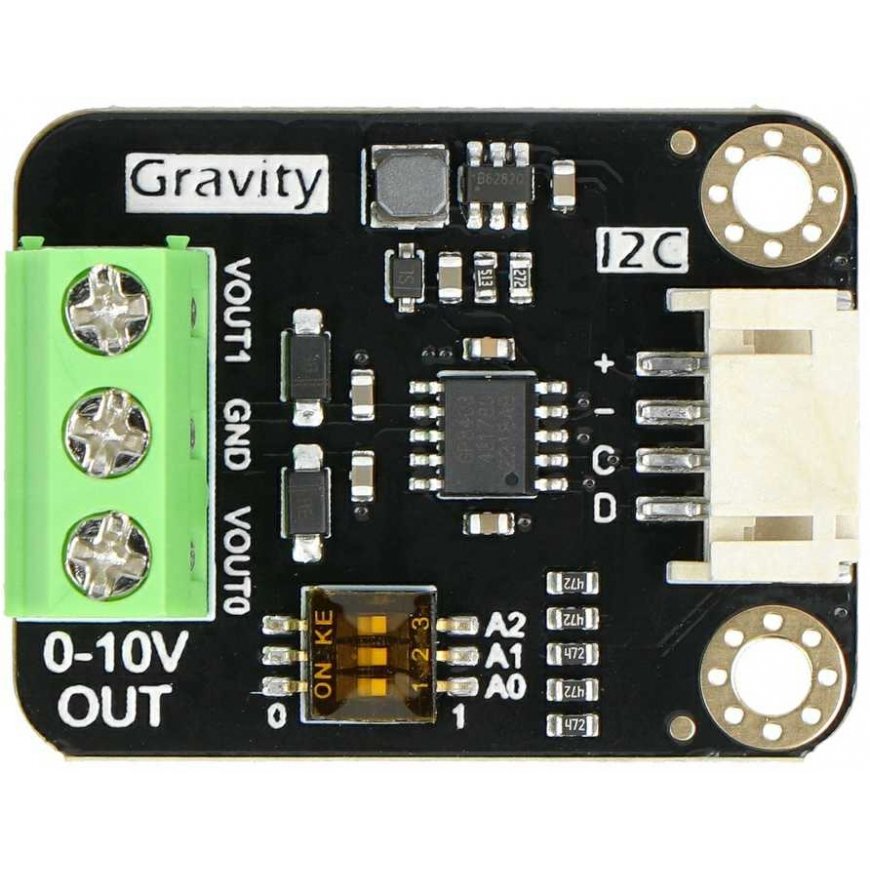

Gravity - 2 Channel I2C DAC Module 0-10V - DFRobot DFR0971
29.00 €
3551022 AN-21993
6959420922727
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Gravity - 2-channel DAC 0-10 V I2C module allows you to control industrial devices with voltages from 0 V to 10 V. It is supplied with voltages from 3.3 V to 5 V. Using an Arduino board, it can be used with most devices on the market, such as light controllers, inverters, valves and pumps. In addition, this module supports 8 different I2C addresses, which can be changed using the built-in DIP switch.Main features:
- Integrated chip: GP8403
- Supply voltage range - from 3.3 V to 5 V
- Output voltage error is less than 0.5%
- Power consumption is less than 4 mA
- Short-circuit protected outputs
- Dual-channel 0-5 V / 0-10 V output for connecting and controlling standard voltage / analog devices

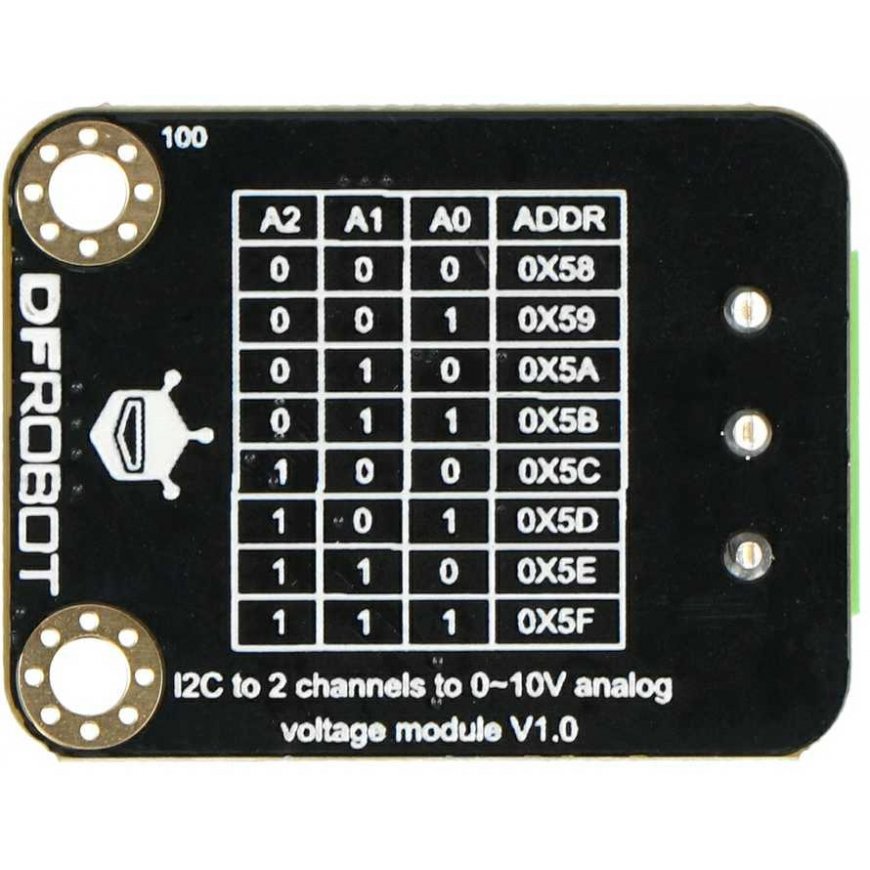

- Adjustable I2C addresses: 0x58, 0x59, 0x5A, 0x5B, 0x5C, 0x5D, 0x5E, 0x5F
- Supply voltage range: 3.3 V to 5 V
- Interface: I2C
- I2C addresses: 0x58, 0x59, 0x5A, 0x5B, 0x5C, 0x5D, 0x5E, 0x5F
- Built-in chip: GP8403
- Input signal: 12 bit
- Output voltage VOUT0: 0 V to 10 V
- VOUT1 output voltage: 0 V to 10 V
- Output voltage error: less than 0.5%
- Power consumption: less than 4 mA
- Connector standard: Gravity PH2.0-4P

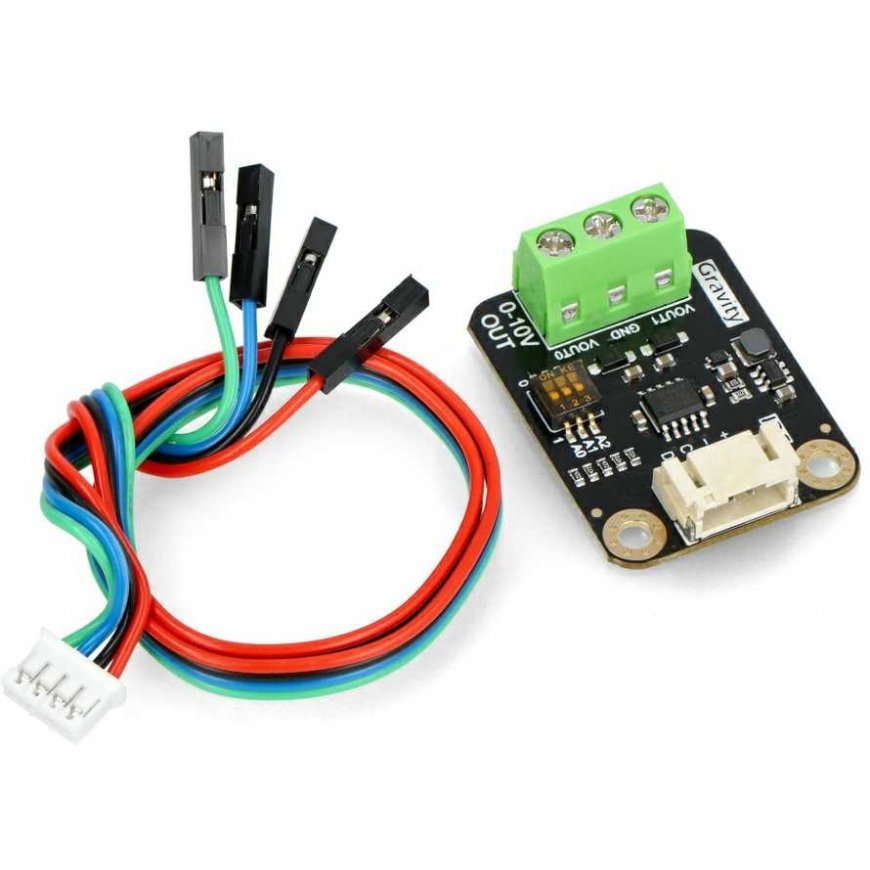

- 2-channel DAC I2C module
- Connecting cable with Gravity connector
