IPS LCD display 1.14" 240x135px, SPI, for Raspberry Pi Pico, Waveshare 19340
19.00 €
3550867 AN-18991
5904422371876
Piegāde 8-13 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

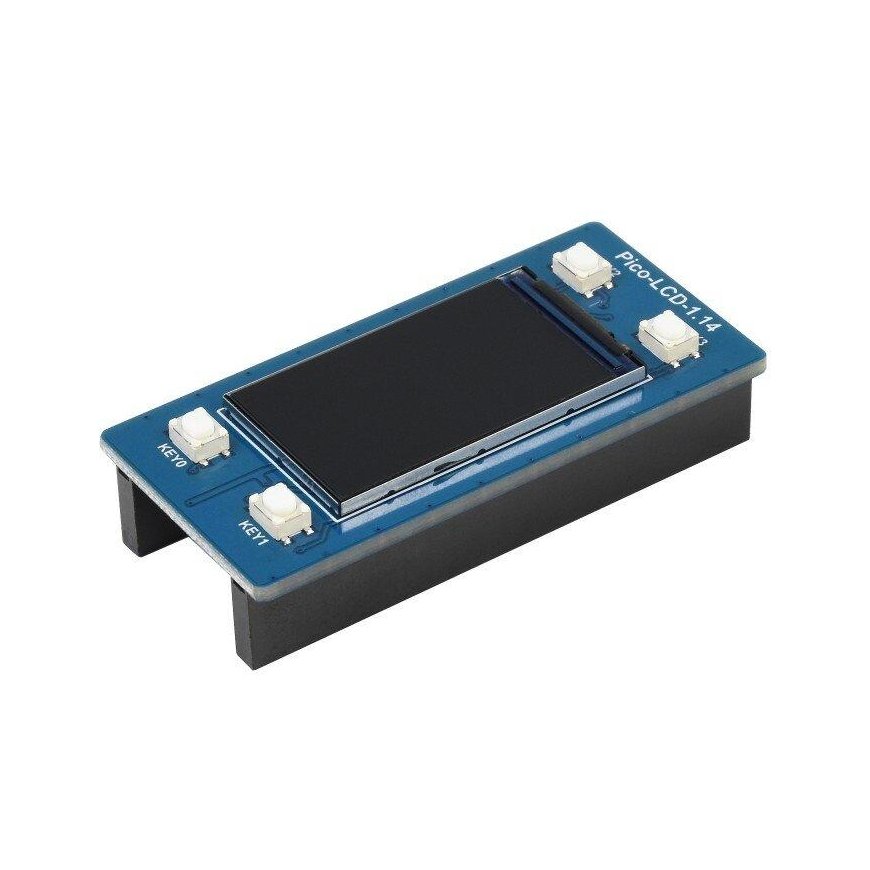

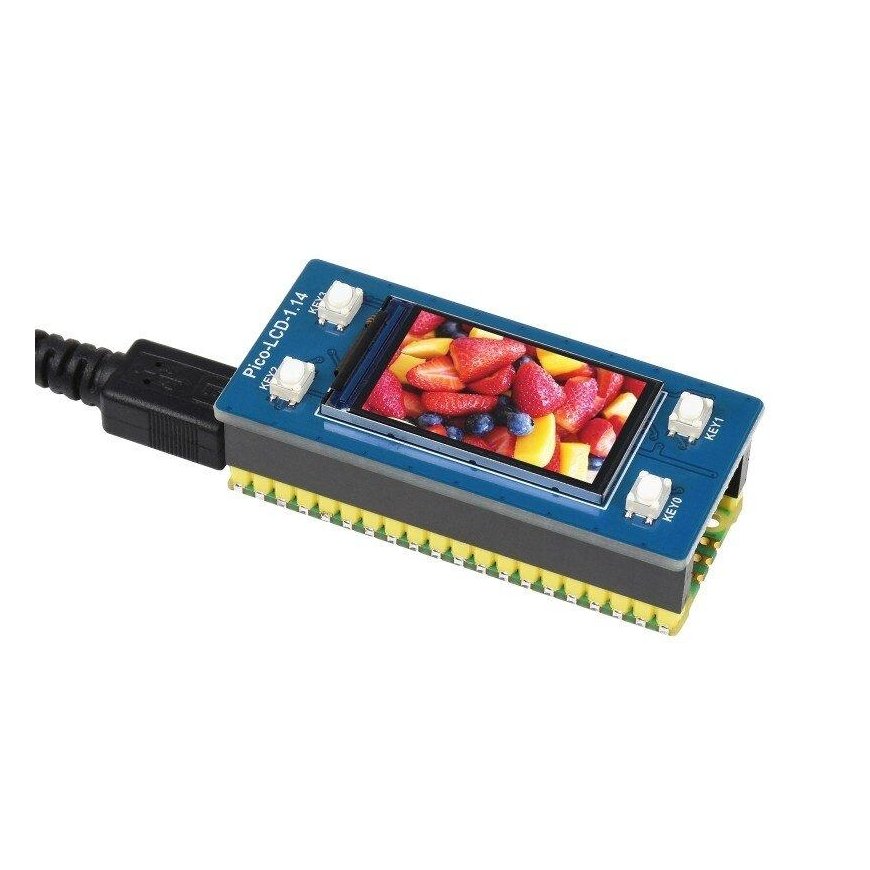

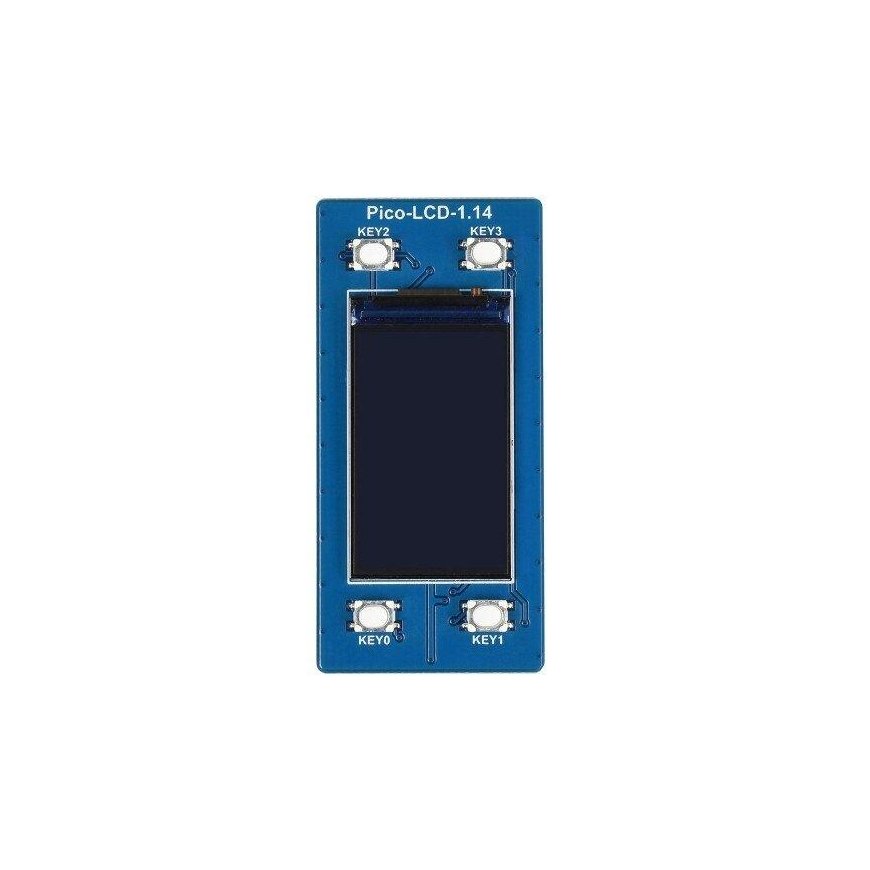

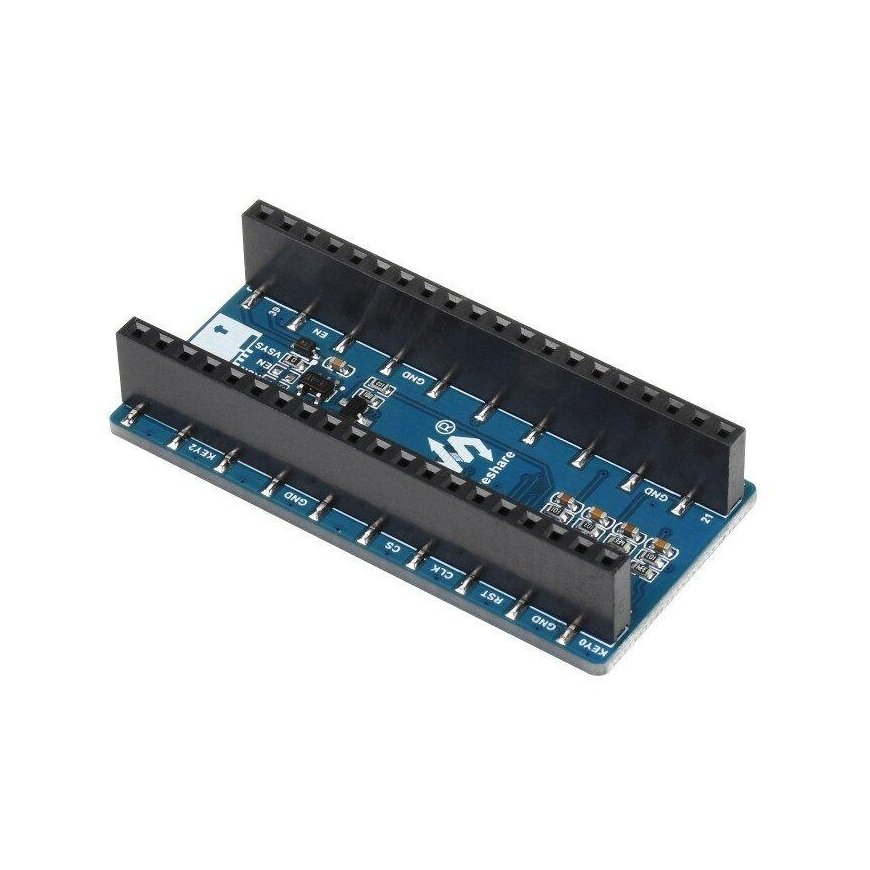

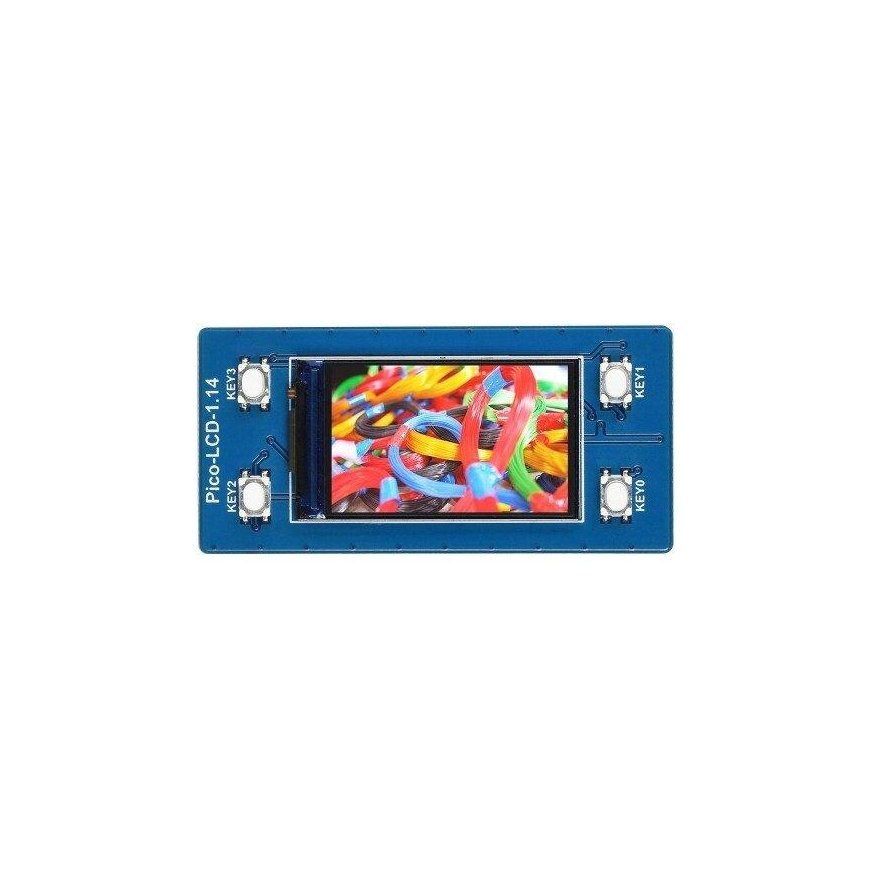

1.14” IPS LCD screen for the Pico minicomputer version of the Raspberry Pi. The screen resolution is 240x135px. The module is manufactured by Waveshare and comes with an ST7789 controller. It has 4 usable buttons for user interaction. The screen uses an SPI communication interface and is powered from 2.6 V to 5.5 V. It can be programmed in C/C++ and MicroPython.
Specifications:
- Compatible with Raspberry Pi Pico
- Diagonal size: 1.14"
- Resolution: 240x135px
- Display type: IPS LCD
- Communication interface: SPI
- Color gamut: 65K RGB colors
- Pixel size: 0.1101 x 0.1035 mm
- Equipped with 4 usable buttons
- Controller: ST7789
- Operating voltage: 2.6 to 5.5 V
- Programming language: C/C++/MicroPython
- Dimensions: 52 x 25 mm
