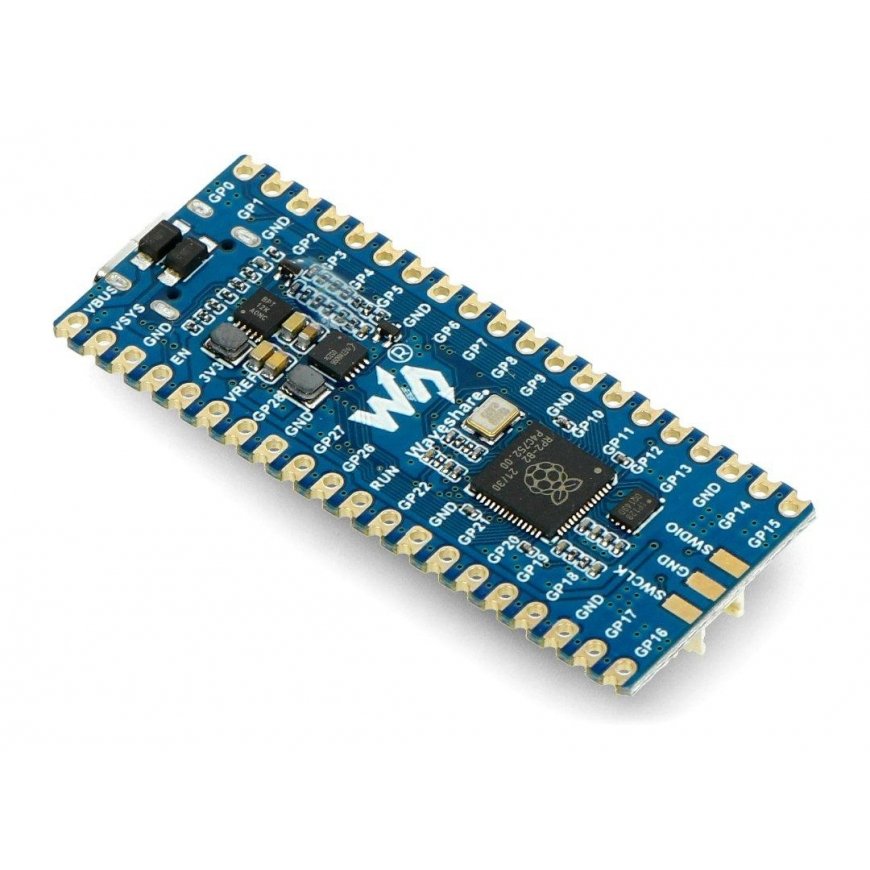

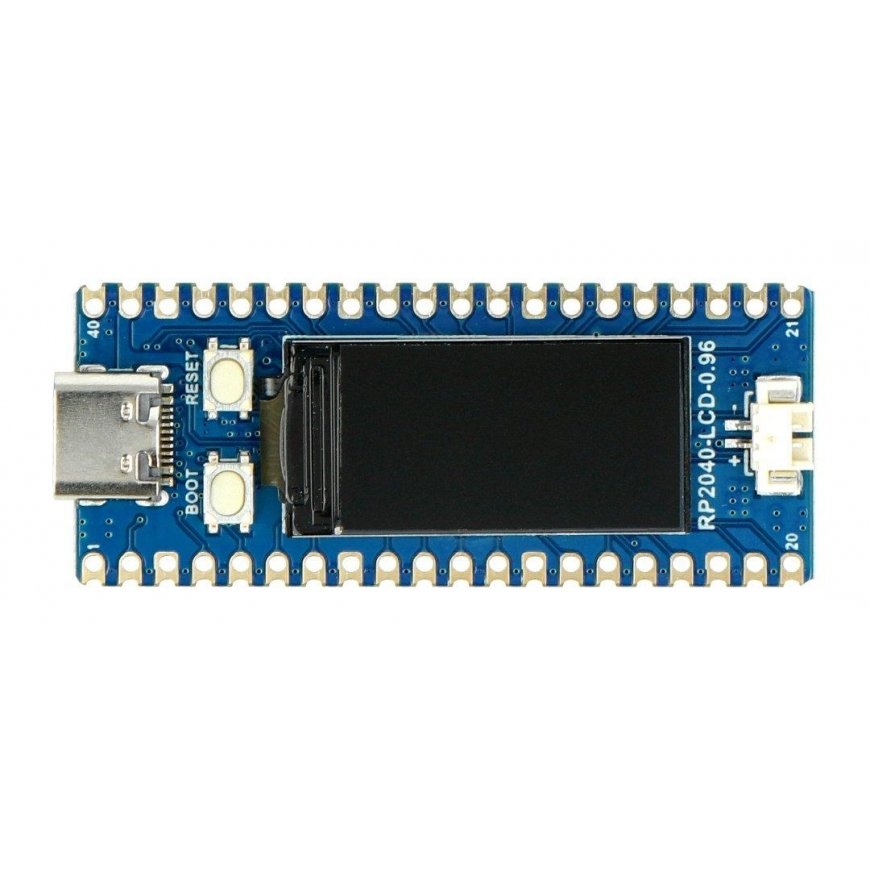

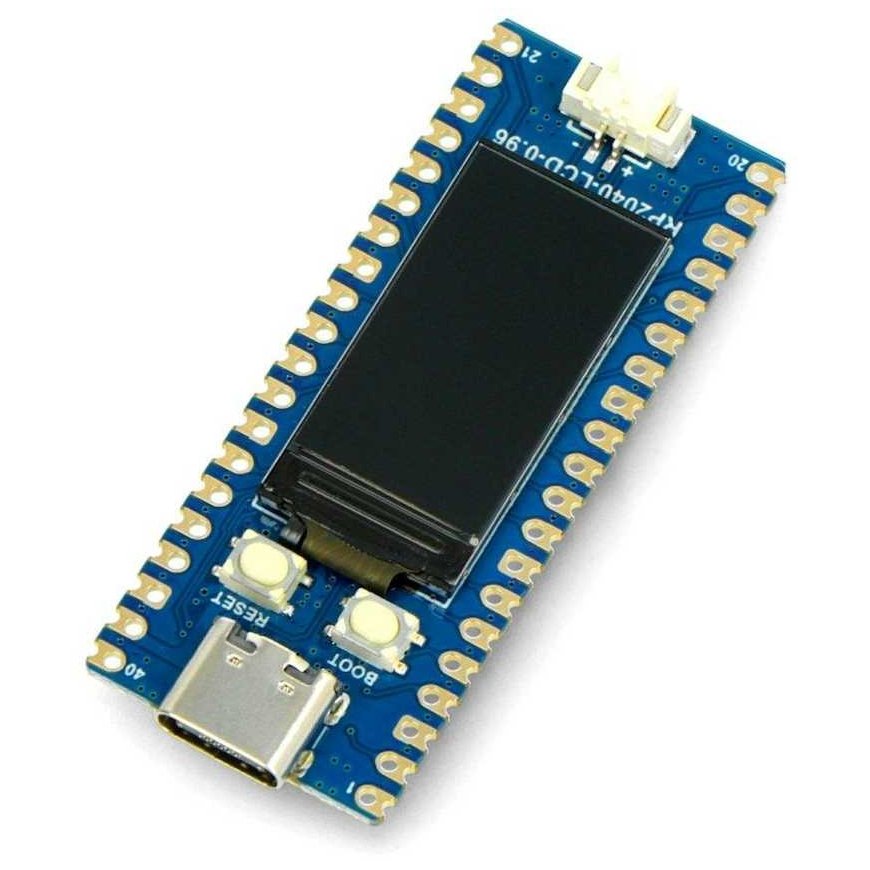

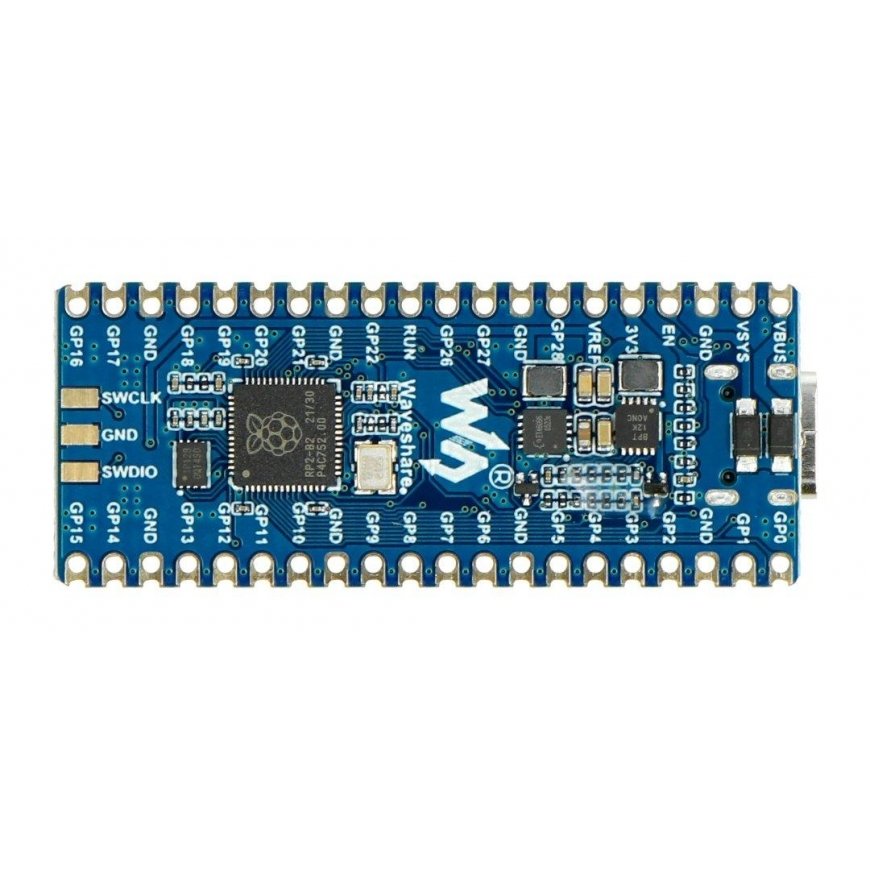

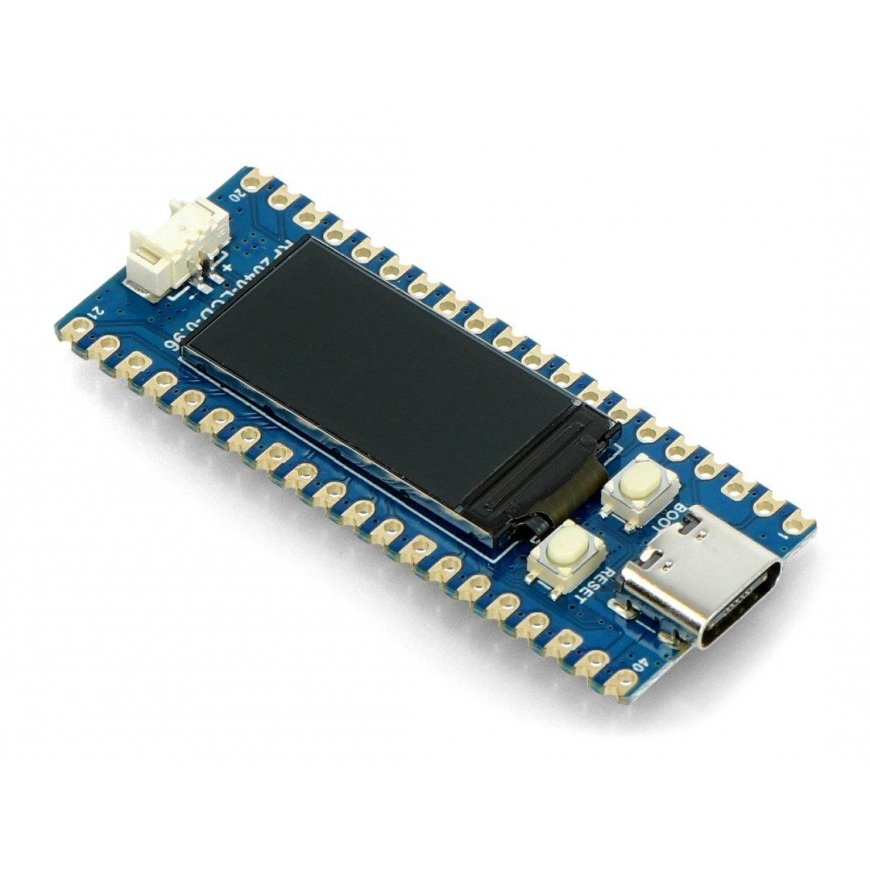

RP2040-LCD-0.96 - board with RP2040 microcontroller and IPS LCD display - Waveshare 20330
22.88 €
3550563 AN-20537
5904422381578
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The LED bulb is powered by 230 V with an E27 thread. It consumes only 9 W with a luminous flux of 740 lumens. The light color is warm white.Main features:
- Equipped with RP2040 microcontroller chip, developed in the UK
- Dual-core Arm Cortex M0+ processor
- 0.96" color IPS LCD screen with 160x80px and 65K display colors
- Lithium battery charging/discharging port - suitable for mobile devices
- Integrated TPS63000 DC-DC chip, high-efficiency DC-DC step-up circuit, 1.8A current switch
- USB 1.1 with device and host support
- Drag and drop programming using USB mass storage
- 26 multi-function GPIO pins, compatible with Raspberry Pi Pico pins
- 2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC, 16x PWM interfaces
- Integrated temperature sensor
- 8x programmable I/O (PIO) to support optional peripherals
- Chip: Raspberry Pi RP2040
- Core: ARM Cortex-M0+ dual-core 133 MHz
- SRAM: 264KB
- Integrated Flash memory: 2 MB
- Pins: 26 multi-function GPIO pins
- Interfaces: 2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC, 16x PWM
- Display: LCD IPS
- Diagonal: 0.96”
- Resolution: 160x80px
- Display colors: 65k colors
- Development environment: Raspberry Pi C/C++ SDK or MicroPython
- Power connector: USB Type-C
- Board dimensions: 51 x 21 mm
- Screen dimensions: 28 x 13.5 mm
