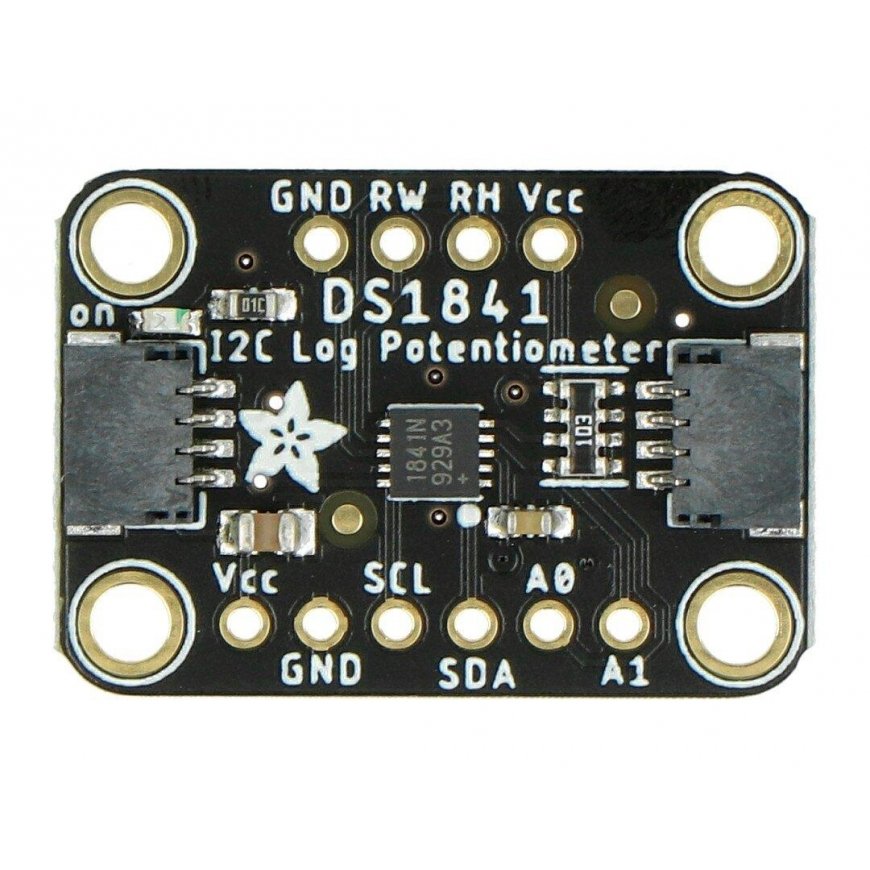

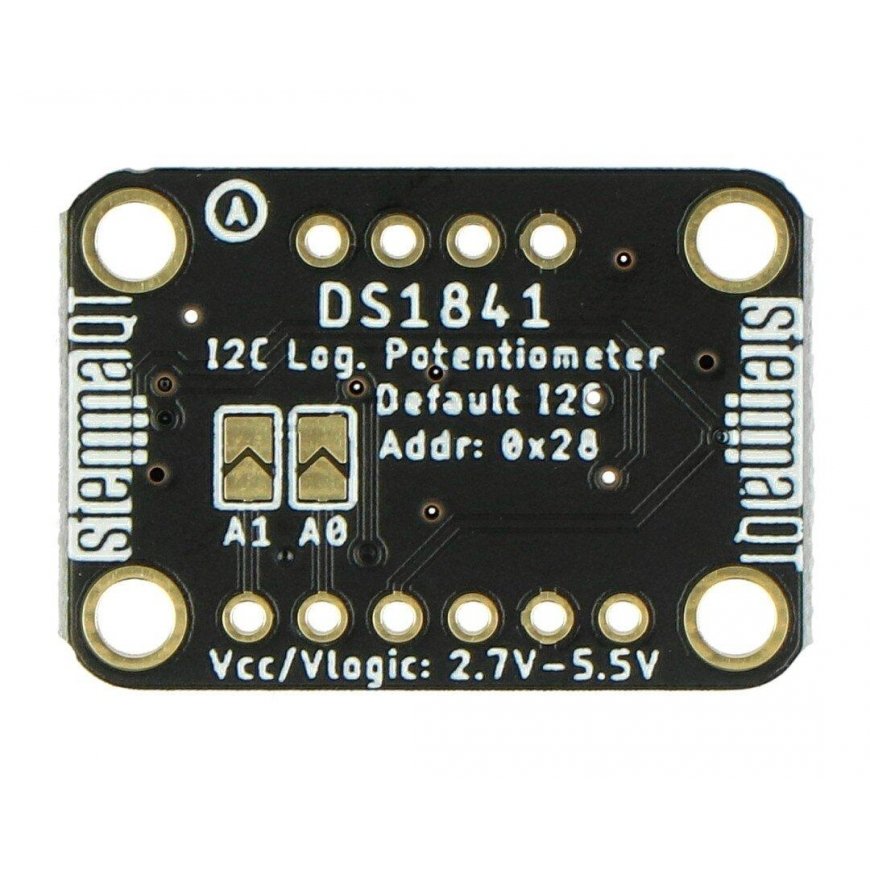

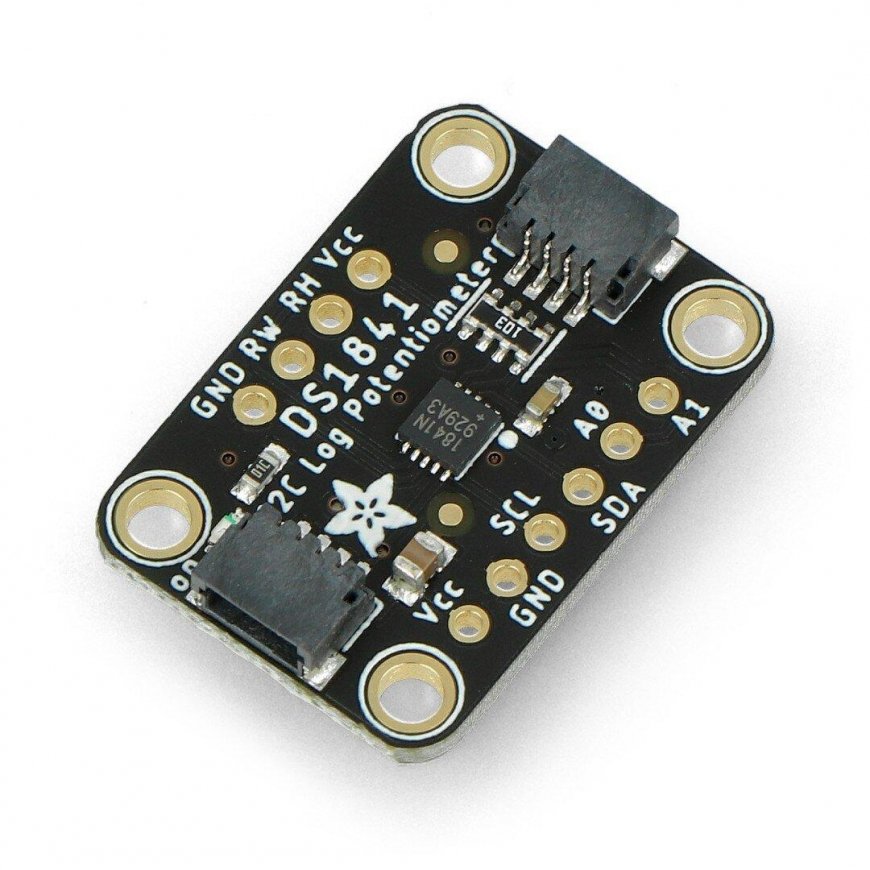

DS1841, I2C digital potentiometer 10K I2C STEMMA QT / Qwiic I2C, Adafruit 4570
21.75 €
3549081 AN-17712
5904422354572
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Adafruit digital potentiometer allows you to adjust the circuit without turning the knob manually. Module with I2C interface, in which the resistance of the slider is logarithmic. Potentiometer with resistance from 22 kΩ to 3.7 kΩ and 128 hook points. Logarithmic type devices are used for sound adjustment, as they better correspond to the human ear's response to sound.
Specifications:
- Supply voltage: 2.7 to 5 V
- Logarithmic resistor: from 22 kΩ to 3.7 kΩ
- Fixed resistor: 3.6 kΩ
- Temperature sensor: chip/ADC
- Operating temperature: -40 °C to 100 °C
- LUT: 72 B
- Interface: I2C
- Dimensions: 25.5 x 17.6 x 4.6 mm
Included:

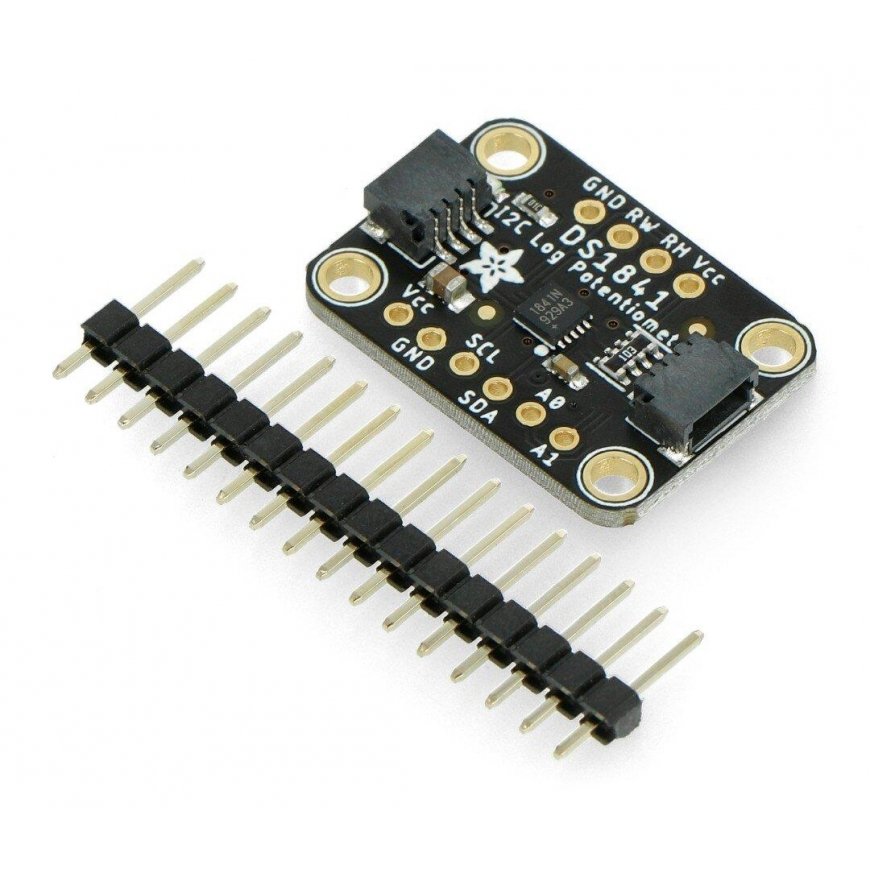

- Sensor module
- Goldpin connectors
Links:
Manufacturer's page
Manual
