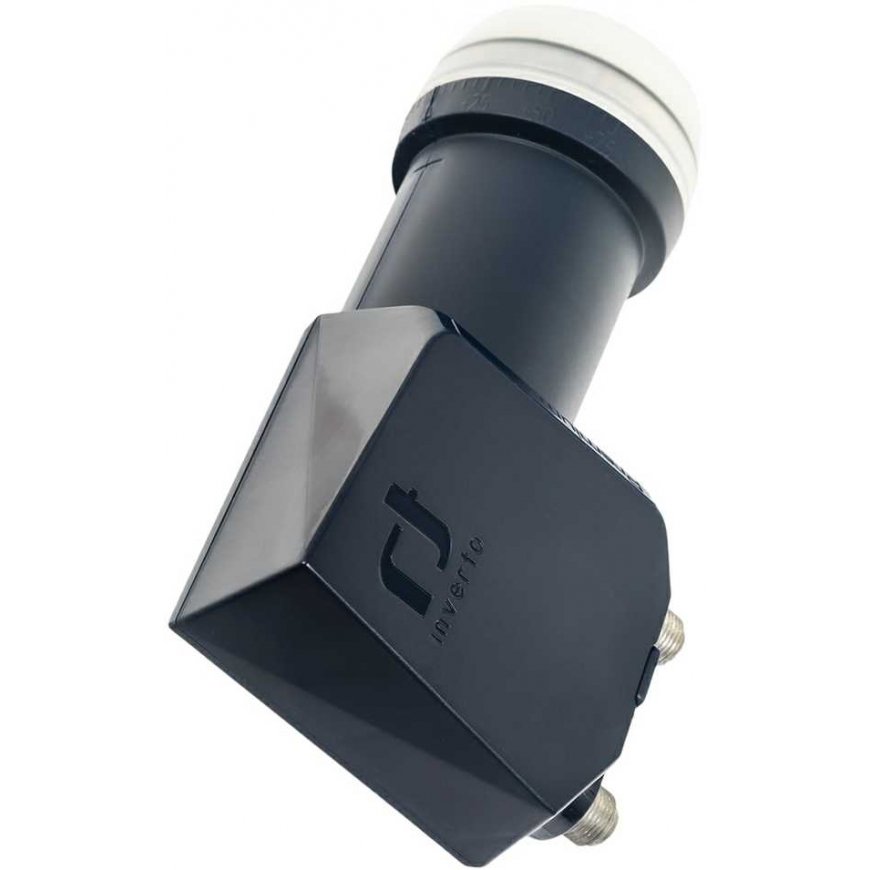

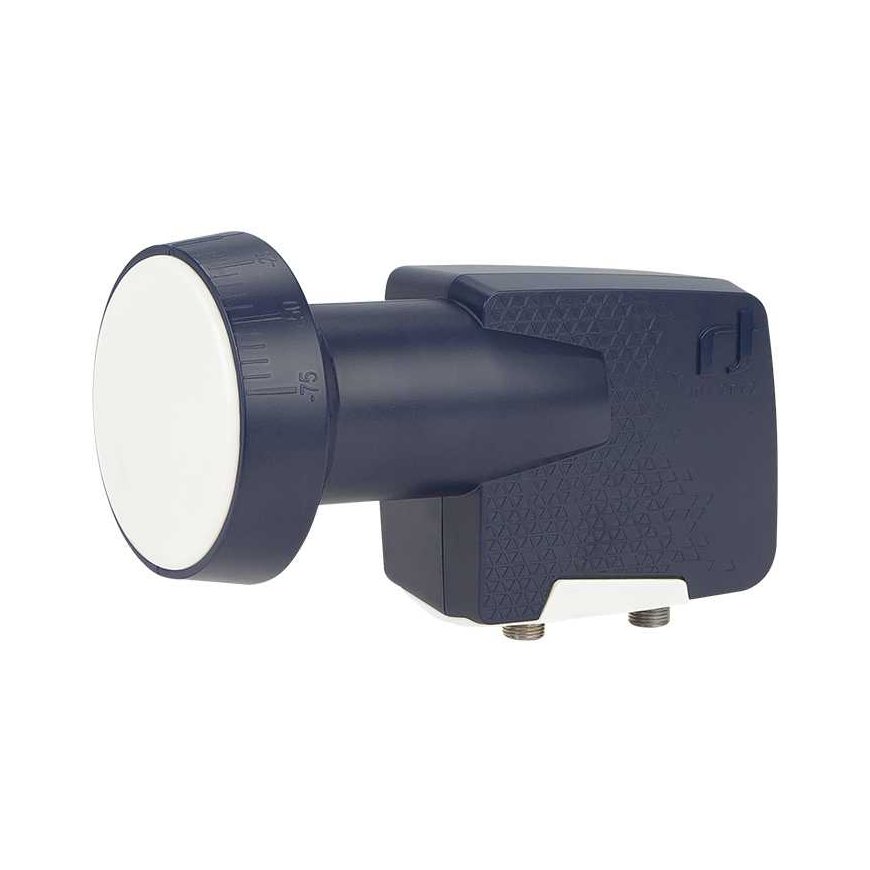

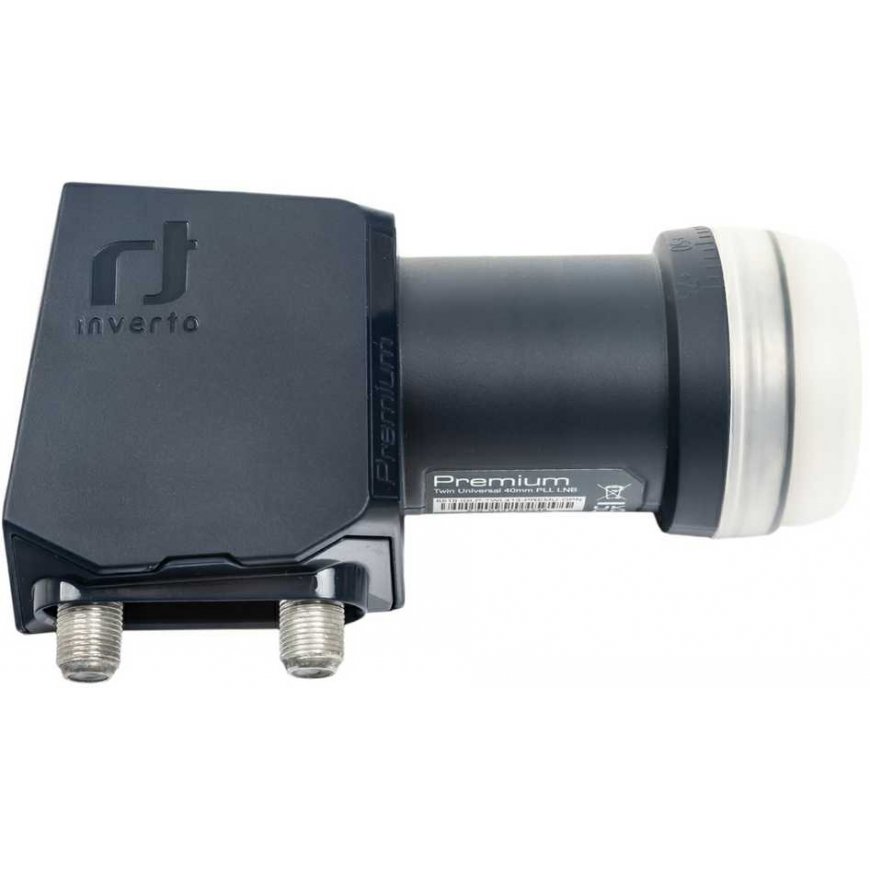

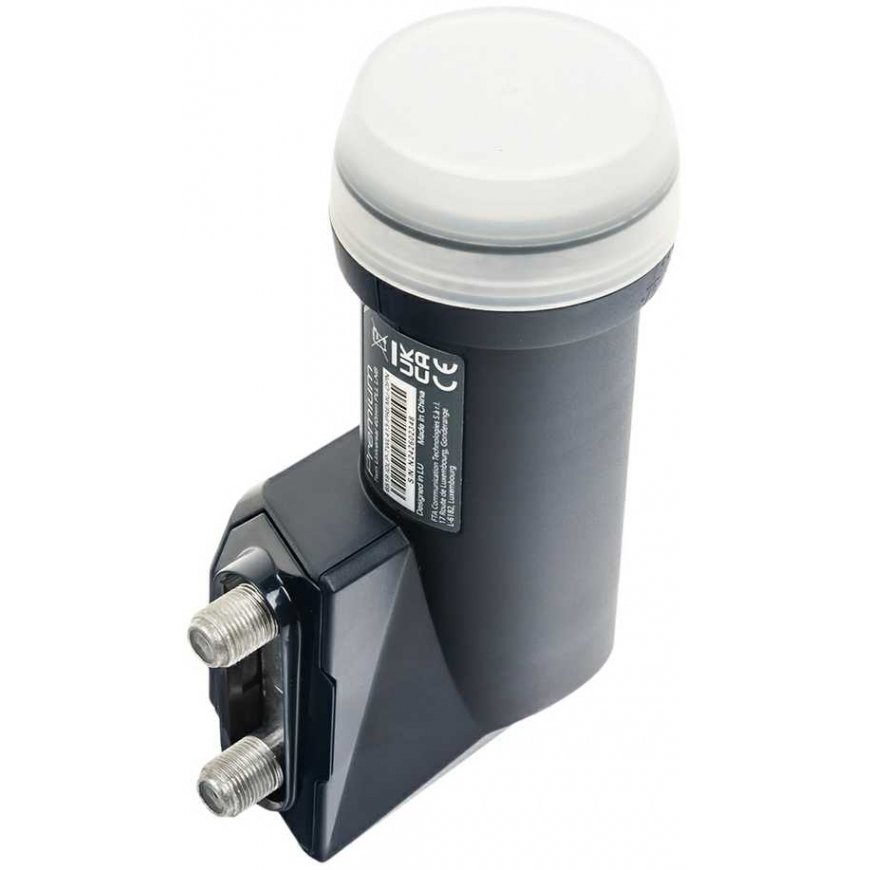

Blow 77-189 Sat converter inverto twin premium
29.00 €
3407589 77-189#
5453002616802
Piegāde 8-12 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
INVERTO TWIN PREMIUM SAT converter
It allows you to receive satellite TV and radio from one satellite and distribute two single receiver decoders (or 1 dual PVR receiver). The converter supports HD and UHD transmission, provides unique RF performance, very low power consumption and limits 4G/LTE transmission interference. Manufactured to the highest quality standards. It is the ideal solution for demanding satellite TV users worldwide.
Characteristics:
- Low phase noise compatible with DVB-S2 (HD and UHD)
- Very low noise level
- Low power consumption
- High cross polarization isolation
- High frequency stability
- F slot cover
Specification:
- Input frequency range: 10.7GHz ~ 12.75GHz
- Output frequency range: 950MHz ~ 2150MHz
- Low frequency band: 9.75 GHz
- High frequency band: 10.6 GHz
- Self-noise : 0.2 dB typ. (max. 0.7dB)
- Frequency accuracy: 500 kHz max.
- Conversion gain: 55 dB min .
- Gain variation (across the band): 3 dB
- Image rejection: 40 dB min.
- Ca control signal (V): 11.0V ~ 14.0V
- Cb(H) control signal: 16.0V ~ 20.0V
- Cc control signal (band switching): 22 kHz 4 kHz, 0.4V ~ 0.8V pp
- VSWR output: 2.5:1
- Z Power usage: Max. 120mA @ 11V DC ~ 20V DC
- Operating temperature: -35C ~ +60C
- Output impedance: 75 Ω
- Output connector type: F type
- Weight: 218 grams
