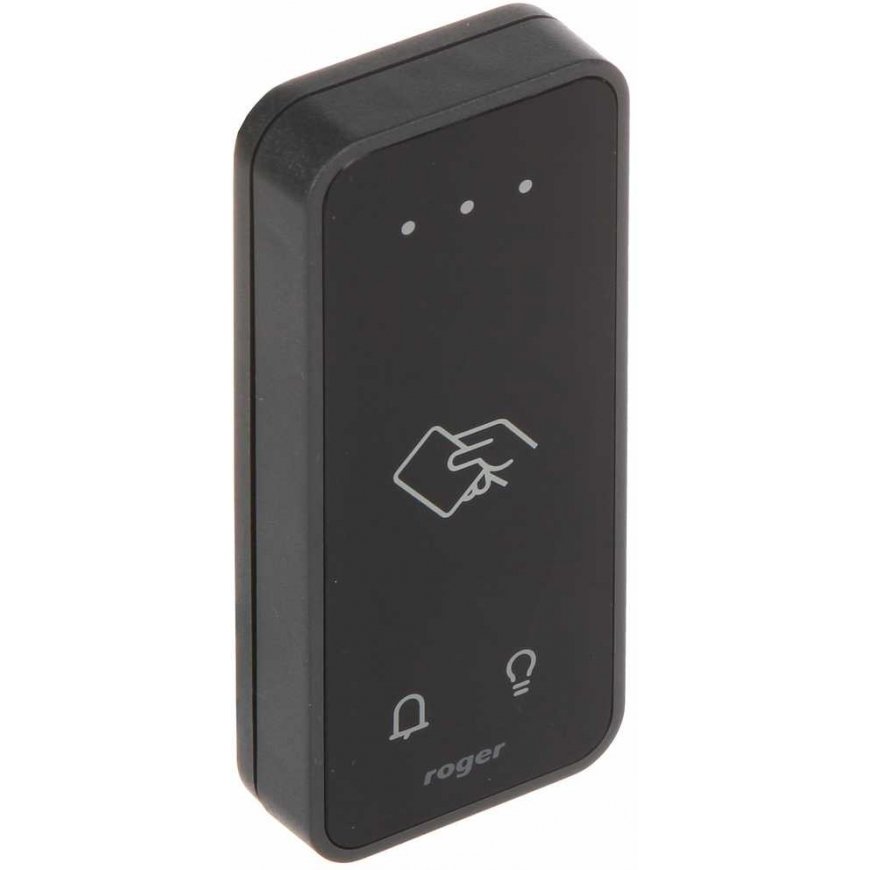

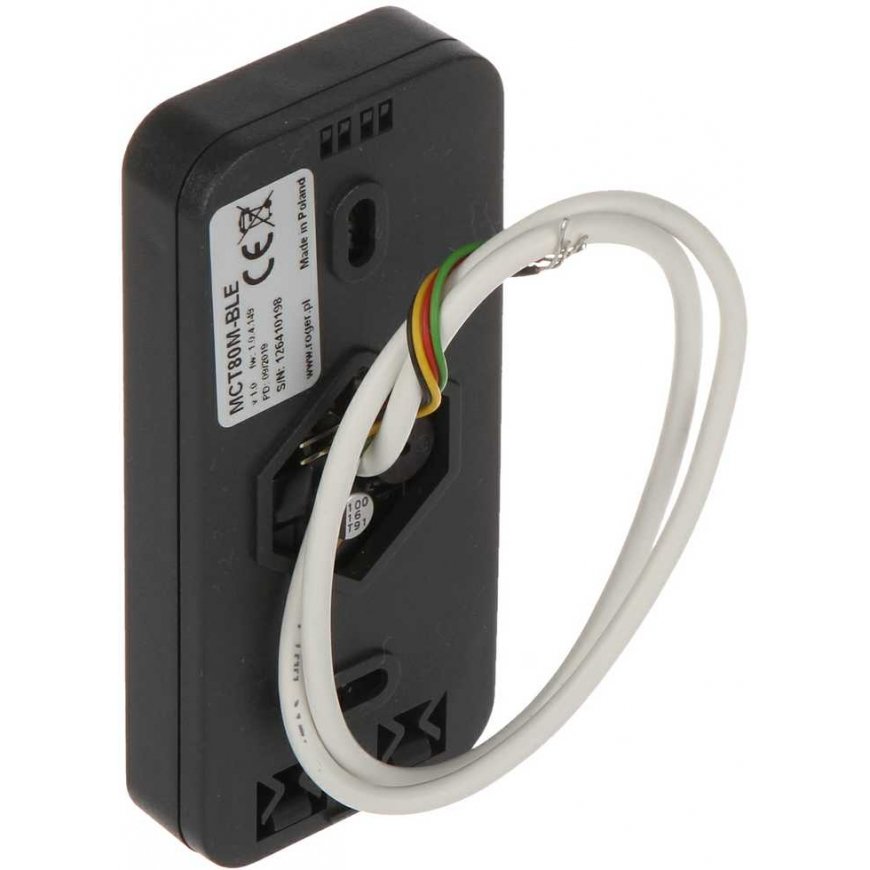

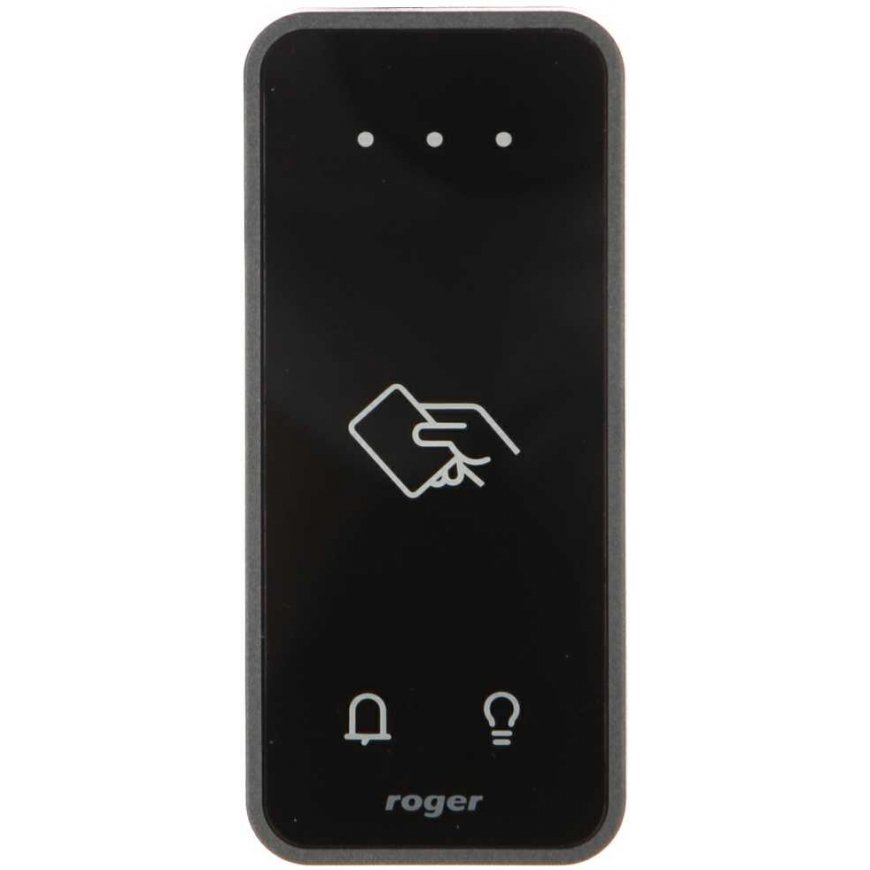

CONTACTLESS READER MCT80M-BLE ROGER
3372070 MCT80M-BLE
5907608961250
Piegāde 8-12 d.d.
Viss par produktu
The external card and tag reader is designed for work in the access control system and building automation RACS 5.
Thanks to the terminal, users can be recognized not only with remote card standard 13.56 MHz MIFARE® Ultralight/Classic/DESFire/PLUS, but also through a mobile device (phone) with NFC or Bluetooth technology.
There are two function keys on the scanner, labeled Call and Light, which can alternatively be used for other functions than indicated by their associated symbols.
The deduction range for identification using Bluetooth technology can reach up to several meters. The rest of the methods require the identifier to be brought closer to the calculator at a distance of several centimeters.
The device complies with the IP65 sealing class.
| Support : | RACS 5 (Roger) |
| Card support : | MIFARE 13.56 MHz |
| Remote card reading distance : | max. 7 cm |
| Integrated keyboard : | - |
| Automatic work : | - |
| Call Button : | ✔ |
| Light Button : | ✔ |
| Tamper output : | ✔ |
| Connection : | RS-485 |
| Main features : | Mobile phone identification with NFC / Bluetooth Anti-sabotage protection (detection of removal from the installation site and opening of the housing) LED indication Audible signal |
| Meals : | 12V DC |
| Average current consumption : | 60 mA |
| Working temperature : | -25 °C ... 60 °C |
| Permissible relative humidity of the environment : | 10 ... 95% (non-condensing) |
| Sealing class : | IP65 |
| Weight : | 0.09 kg |
| Dimensions : | 100 x 45 x 16 mm |
| Manufacturer / Brand : | ROGER |
| Warranty : | 3 years |
