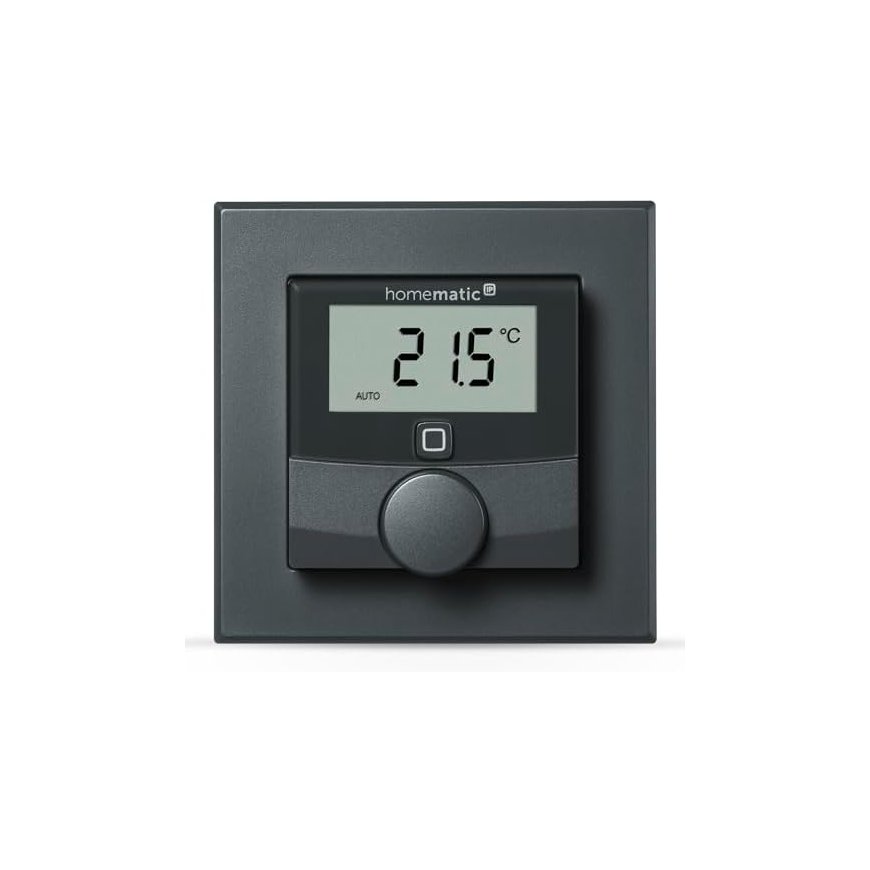

Wall thermostat with humidity sensor, anthracite - HmIP-WTH-A

Homematic IP represents a complete revolution in the field of Smart Home , providing you with uncompromising German quality, comprehensive solutions and extensive modularity with a large range of devices.

One such device is the Anthracite Wireless Wall Thermostat with Humidity Sensor (HmIP-WTH-A) from the Homematic IP series with a 1.74- inch backlit LED display to display temperature and humidity , a smart way to regulate heating and save energy.

The programmable thermostat with a humidity sensor is part of the Homematic IP smart home system , which allows you to adjust the temperature in time and control several thermostatic heads of the Homematic IP series (HmIP-eTRV) in one room.

Due to its compact dimensions , the wall thermostat (HmIP-WTH-A) is similar in size to a light switch. The device can be controlled intuitively with the help of a rotating ring, which simultaneously performs the function of a button. The temperature can be accurately determined in 0.5 °C steps, which is then automatically sent to the central unit (HmIP-HAP) .

System flow

The wireless connection of the wall thermostat (HmIP-WTH-A) to the central unit (HmIP-HAP) allows you to conveniently set up and control the complex Homematic IP smart home system using an intuitive app (for Android and iOS CZ) for smartphones. The mobile application allows you to respond immediately to messages and alerts from your smart home system and connects all Homematic IP devices through a free, unlimited cloud, allowing you to set up and manage the system from anywhere in the world, transfer important information, update the device software. and software that transfers configuration and operating commands from the Homematic IP application to individual smart home devices.

Intelligent management

Up to three adjustable heating profiles: the temperature can be adjusted in time intervals (up to 6 heating phases per day with individually adjustable temperature).

Other heating, cooling or air conditioning devices can also be controlled via Homematic IP switching actuators. The wall thermostat can control both heating and cooling control mode.

Thanks to the integrated sensor, it allows, among other things, to assess the state of air humidity in the room and thus effectively manage air conditioning or ventilation.

Possible applications of the thermostat include direct regulation of the heat source or use as a room sensor to measure and set the temperature in a multi-zone control system.

Boost function to quickly warm up the room

This function can be used if you need to increase the room temperature quickly. A short press on the ring control button will activate Boost mode . All selected thermostatic heads will be opened up to 80% for 300 seconds and the room will heat up faster.
When the Boost function is in active mode, the wall thermostat will display a countdown until the mode is terminated.

A unique solution

Homematic IP wall thermostats replace conventional wall thermostats, control the room temperature and the heating process according to individual needs, which allows you to immediately save and reduce energy costs by up to 30%.

The system becomes really sophisticated with a thermostatic head, window and door sensor (HmIP-SWDx) and a central unit (HmIP-HAP) where all system functions can be fully exploited, including intelligent heating prediction for maximum energy. savings. In the mobile app (Android and iOS CZ) you can set up to several weekly temperature profiles , different daily temperature increase or decrease modes (day and room) or a number of advanced scenarios.

By creating profiles and scenarios, you can take into account all heating automation needs related to energy saving and temperature sensing. You can set the night mode so that you get a good night's sleep, wake up to a pleasant temperature in the morning and enter a heated bathroom.

Enjoy moments of leisure in your living room with an individually set temperature or save valuable energy when you are away from home.

Voice control

The Homematic IP smart home system, which includes wall thermostats, supports voice control and communication with Google Assistant and Amazon Alexa. To make the connection safe, stable and reliable, the system has its own unique radio technology between individual devices.

Easy assembly

Wireless connectivity and battery operation allow simple installation without cables. This means that the thermostat can be placed anywhere in the room and thus measure the room temperature in the desired place. Fixing with installation material (pins, screws) or fixing with attached adhesive tapes.

Power is provided by two AAA batteries with a service life of up to 2 years. The thermostat can be integrated into a 55mm battery component stand (HmIP-DS55) or run battery-free with a 55mm battery component power supply (HmIP-BPS-2) for underground installation.

Open design for integration into several types of frames from third-party manufacturers (e.g. Berker, Elso, Gira, Merten, Jung, etc.).

A wide range of uses

Ideal for general use in homes, offices, businesses, medical facilities, etc.

Advanced heating prediction, unique control algorithm and time programs will reduce heating costs and ensure optimal desired temperature without unnecessary energy waste.

Function:

- Display of set and actual temperature and humidity on 1.74 inch (4.4 cm) backlit LED display
- Setting the temperature in 0.5°C steps with a ring on the device or program
- Up to 6 adjustable heating profiles , 6 phases and 13 changes per day
- Increase function for quick heating of the room
- Compatible with third party 55mm frames
- Can be attached to the Homematic IP stand (HmIP-DS55) for extended battery life
- Or can be powered from a 230V -> 3V home IP source (HmIP-BPS-2)
- Wireless connection via encrypted protocol
- Voice control support (Amazon Alexa, Google Assistant)
- Google Home and Home Connect Plus support

Package Contents:

- 1x wall thermostat with humidity sensor
- 1x replaceable frame
- 1x mounting plate (wall bracket)
- 2x alkaline AAA batteries
- assembly material
- Czech instructions

Parameters:

Series: Homematic IP

Autonomous: no (requires HmIP-HAP central unit)

Power supply: 2x 1.5V LR03/micro/AAA

Current consumption: max. 50mA.

Battery life: 2 years (typical)

Degree of protection: IP20

Operating temperature: 0 to 35 °C

Dimensions (W x H x D): without frame 55 x 55 x 23.5 mm

including frame 86 x 86 x 25 mm

Package dimensions: 122 x 112 x 48 mm

Weight: 100g (with batteries)

Weight with packaging: 205.9g

Operating frequency: 868.0-868.6 MHz, 869.4-869.65 MHz

Wireless distance (in open space): 250 m

Color: anthracite
