GADĀDĀS IESLĒGŠANAS BAROŠANAS APGĀDE CCTV Pulsar PSD12020 12V/2A
19,20 €
18.20 €
3185870 PSD12020
5906881446898
Piegāde 8-12 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

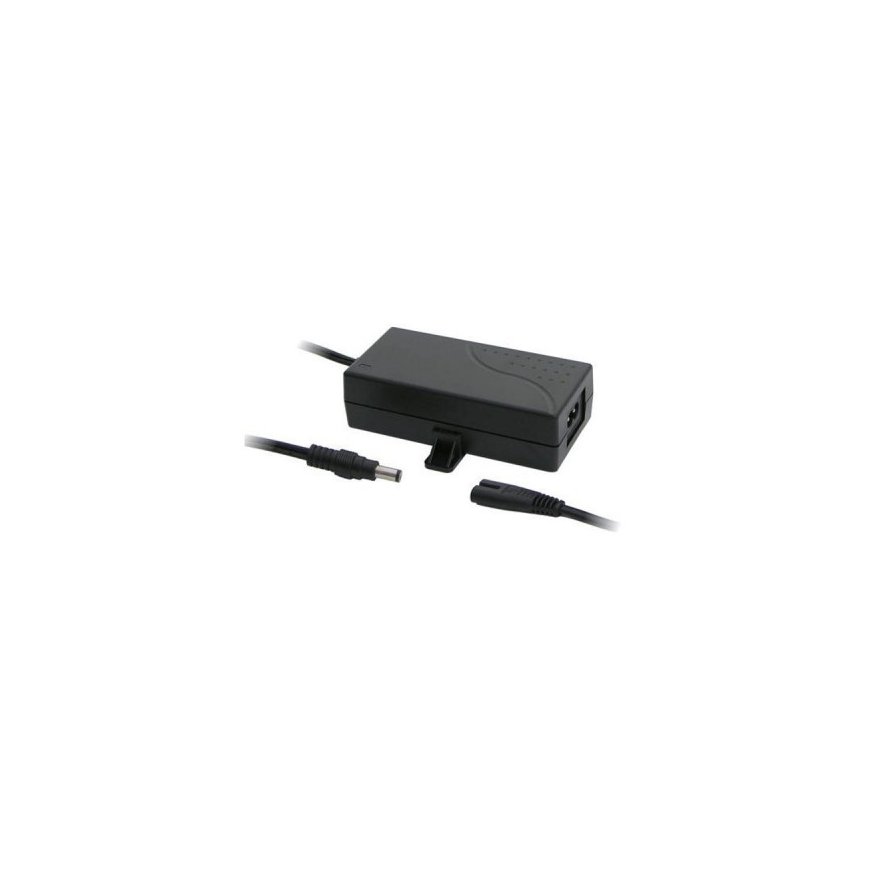

DESKTOP CONTROL POWER SUPPLY Pulsar PSD12020 12V/2A
- Power supply 90 ÷ 264 V AC 50 ÷ 60 Hz
- Current consumption 0.23A@230VAC max.
- Power supply 24W max.
- Efficiency 83%
- Output voltage 12V DC
- Output current tAMB<30°C 2A - see 1 diagram.
- Output current tAMB=40°C 1.4A - see 1 diagram.
- Pulsation voltage 100mV pp max.
- SCP electronic short circuit protection, automatic return
- OLP overload protection 105-150% power supply, automatic return
- Optical indicator of LED operation - presence of constant voltage
- Working conditions temperature -10 oC÷40 oC
- relative humidity 20%...90%, no condensation
- Dimensions (LxWxH) 86 x 72 (50) x 32 [mm]
- Net/gross weight 0.21 kg / 0.24 kg
- Protection class PN-EN 60950-1:2007 II (second)
- DC cable length 1.45m + DC5.5/2.1 plug
- AC cord length 1.15 m + power plug
- Storage temperature -20ºC...+60ºC
- * To extend the life of the power supply, the recommended load current is 1.4A.
- Model: PSD12020
- Sealing class: For indoor use only
- Output voltage: 12V
- Variable supply voltage: 90÷264VAC/50Hz
- Power supply: 24W
- Optical performance indication: Yes
- OLP surge protection: Yes
- Output current: 2A
- SCP short circuit protection: Yes
- Plug v3: 2.1/5.5mm
