BleBox SwitchBox DIN - 230V WiFi relay - Android/iOS app

50,36 €
Ikm. maksa no 2.20 €
3184342

AN-22446

5900168580527

Piegāde 2026-07-22 Latvijas teritorijā +1 diena

Skaits

Šī prece Jūs ieinteresēja
(Lasīt pakalpojumu sniegšanas noteikumus)

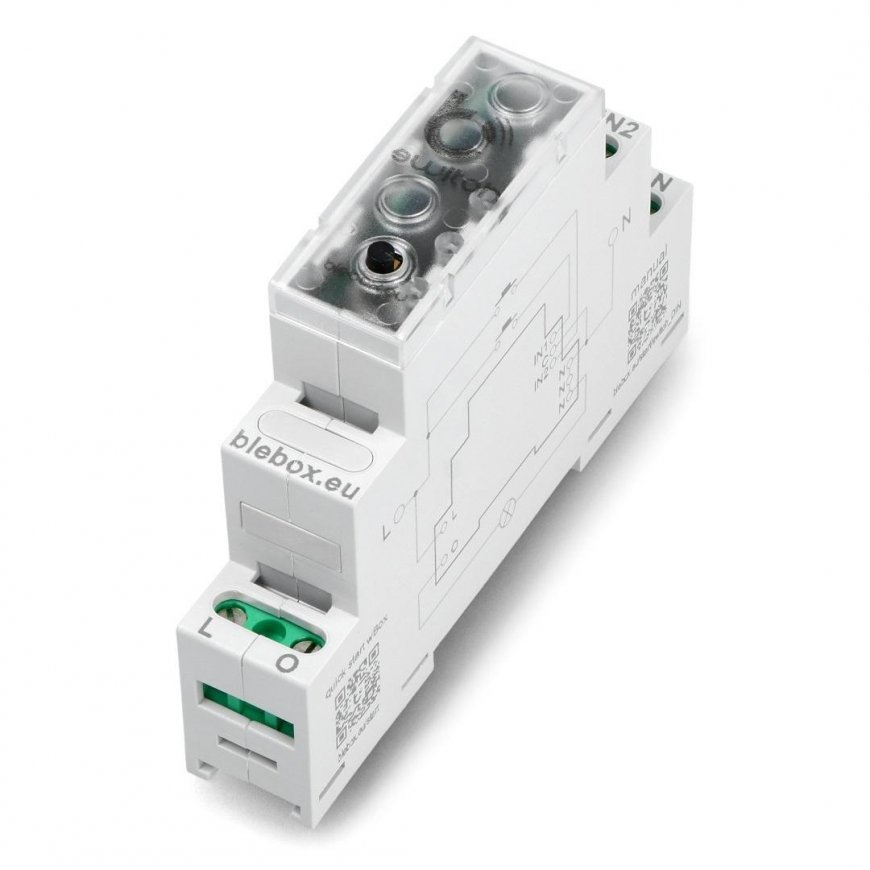

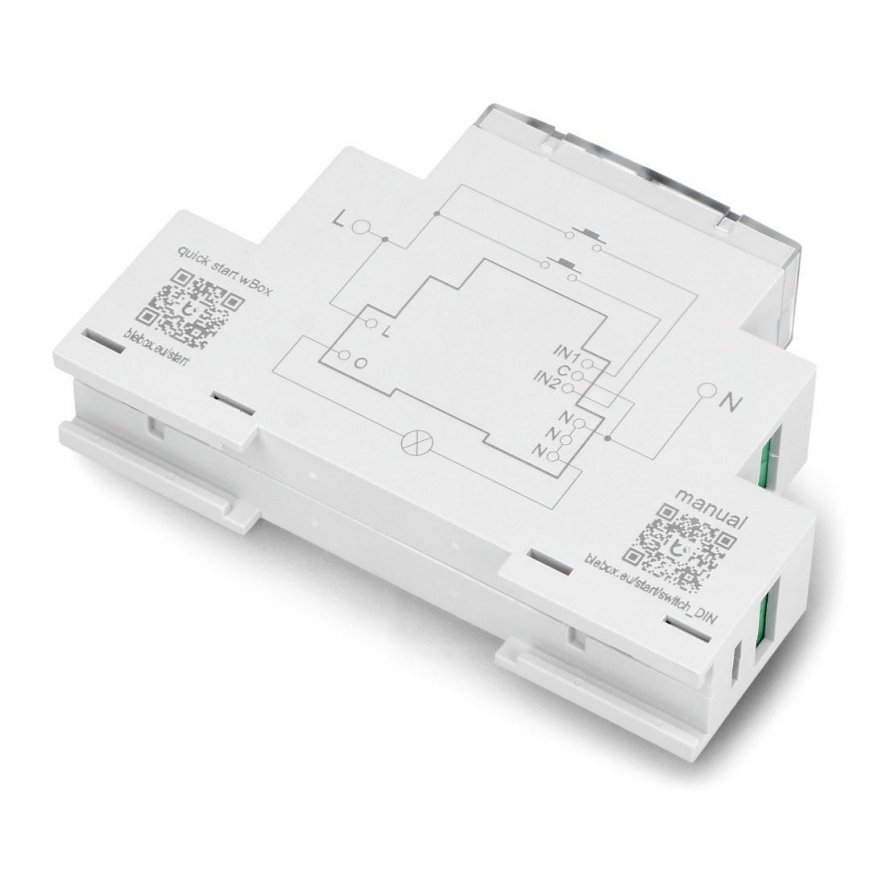

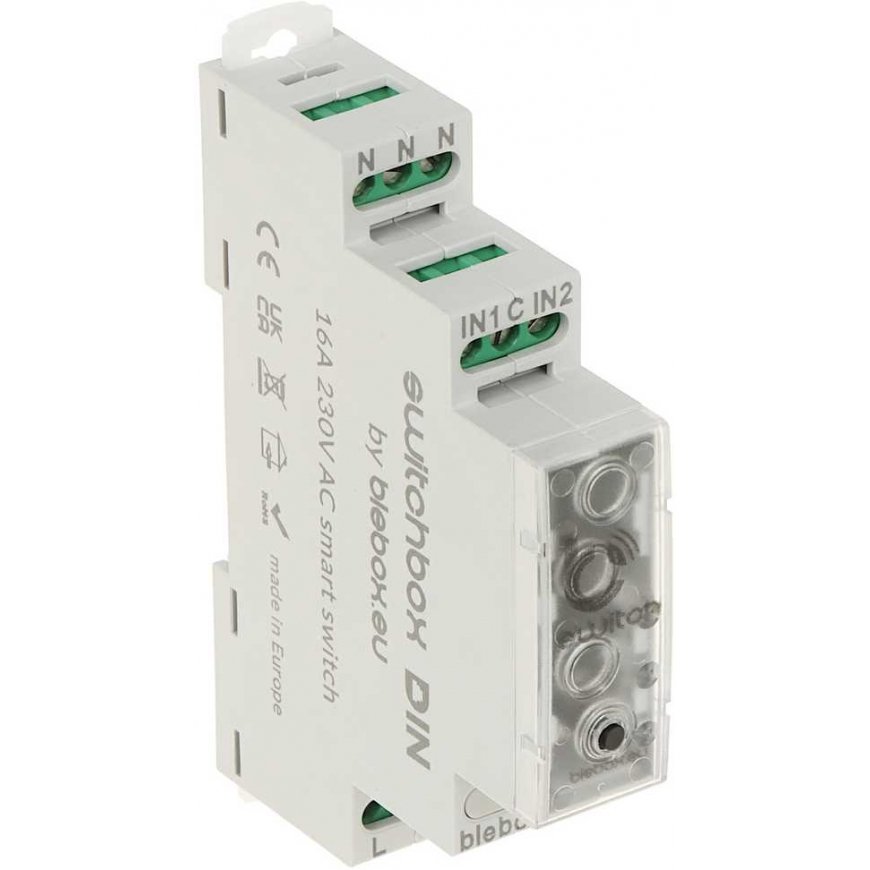

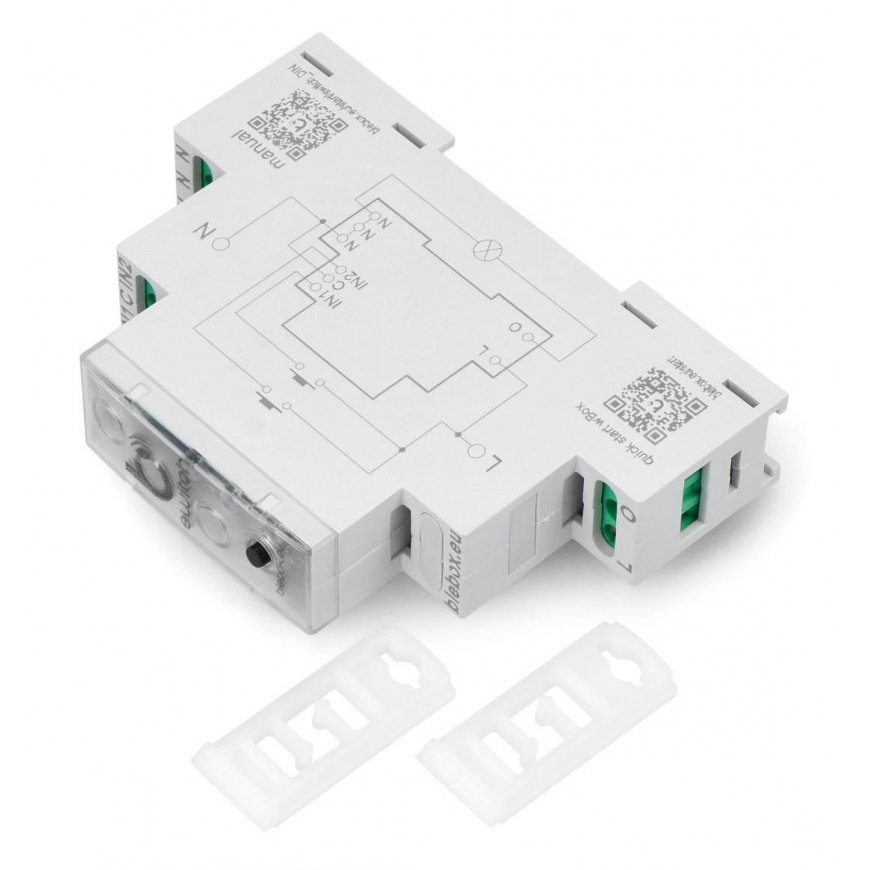

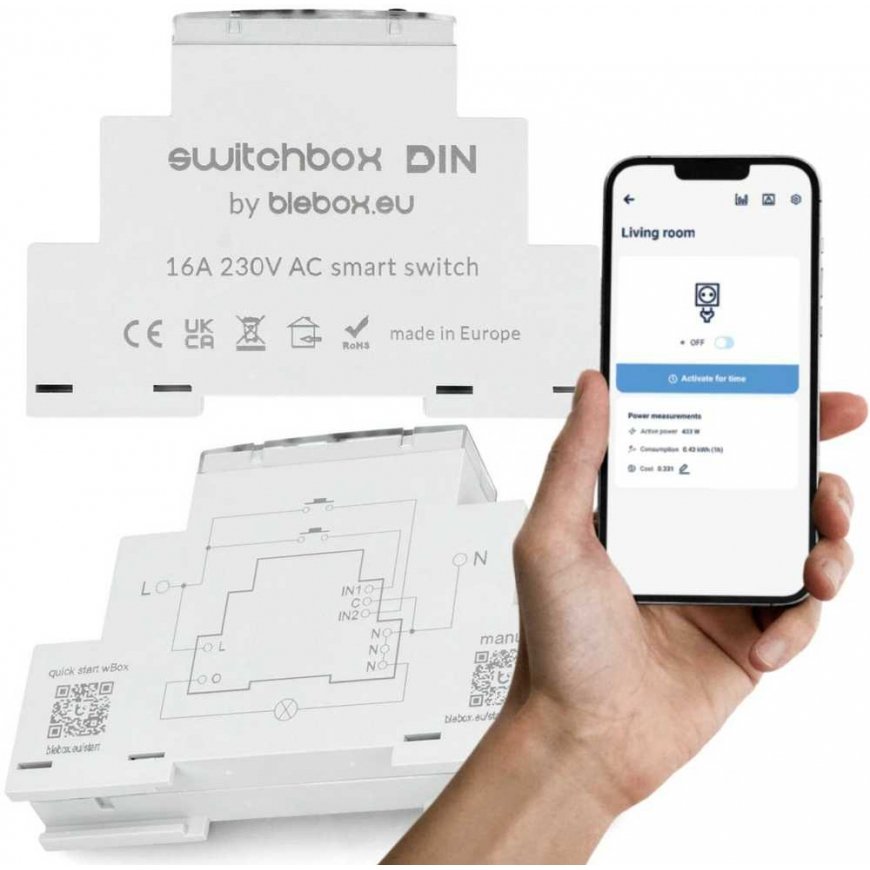

The module allows you to control home appliances up to 3.6 kW via WiFi using an app for mobile devices. The controller is designed to be mounted on a DIN rail in a distribution box, so installation requires the assistance of an electrician. It is mostly used in industrial automation and smart home solutions. With the SwitchBox DIN you can control machines, household appliances or lighting. It also collects information about the energy consumption of controlled devices. You can create 1 or 2 wired central buttons or, using the ActionBox module, wireless buttons that send a signal to the controller via WiFi. The module is powered by 230 V voltage.

Main features:
  • Remote control of 3.6 kW circuits
  • Mounting on a DIN rail
  • Measurement of the amount of energy consumed by controlled devices
  • Individual device work schedule
  • Astronomical clock function
  • Option to create 1 or 2 wired central buttons or wireless buttons with the ActionBox module
  • Compatibility with voice assistants such as Google Home or Alexa
  • Ability to link with uRemote and sRemote remote controls and inBox button module
  • Automation together with other BleBox sensors:
    • windSensor
    • airSensor
    • rainSensor
    • tempSensor
Specifications:
  • Mounting: on 35 mm DIN rail
  • Supply voltage: 230 V AC
  • Power consumption: < 1 W
  • Number of outputs: 1
  • Maximum current: 16 A
  • Maximum power:
    • AC1 (resistive, power factor: 0.95): 16 A / 230 V AC = 3680 W
    • AC3 (IEC60947-4-1): ~0.15 kW / 240 V AC
  • Measuring range: From 0 W to 3680 W
  • Number of entrances: 2
  • Input voltage range: 12V to 230V AC/DC
  • Supported buttons: monostable, two-pole
  • Signaling on the body: colored lighting
  • Transmission standard: µWiFi, compatible with WiFi, 802.11g
  • Transmission frequency: 2.4 GHz
  • Transmission type: two-way, encrypted
  • API: Open
  • Degree of protection: IP20
  • Body: ABS, acrylic
  • Operating temperature: from -20 °C to 50 °C
  • Dimensions: 98.8 x 17.5 x 64.5 mm
