Triton ROPAM OUTPUT EXPANDER EXP-O8T-RN
69,69 €
69.59 €
Ikm. maksa no 2,69 €
3172888 EXP-O8T-RN
5907565617931
Piegāde 11-15 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

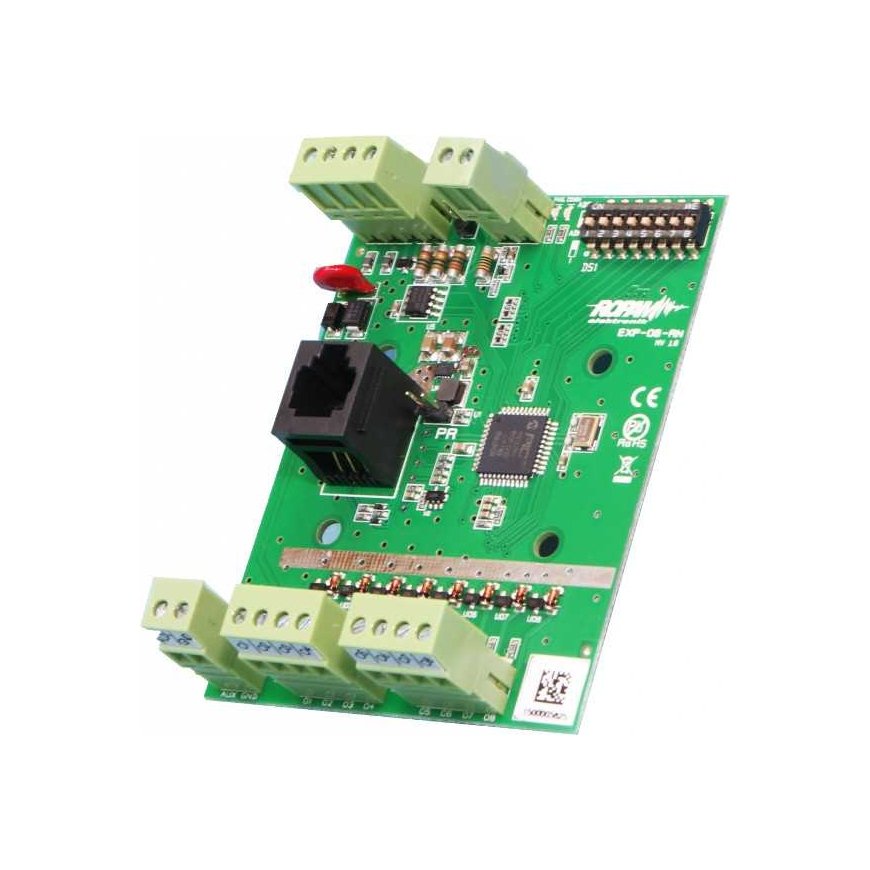

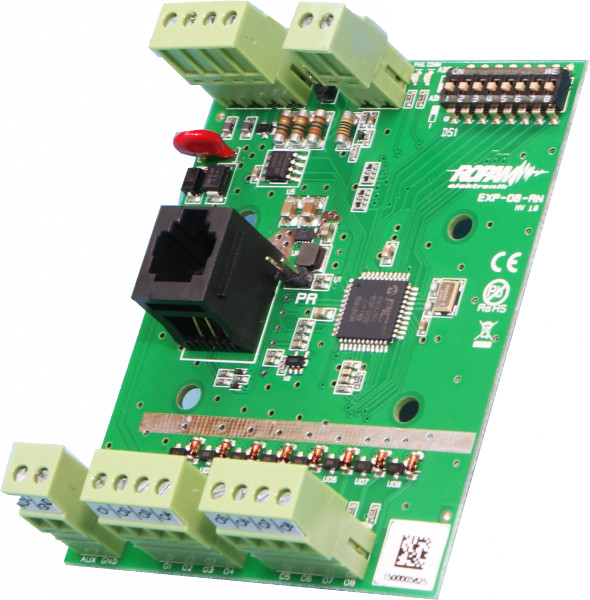

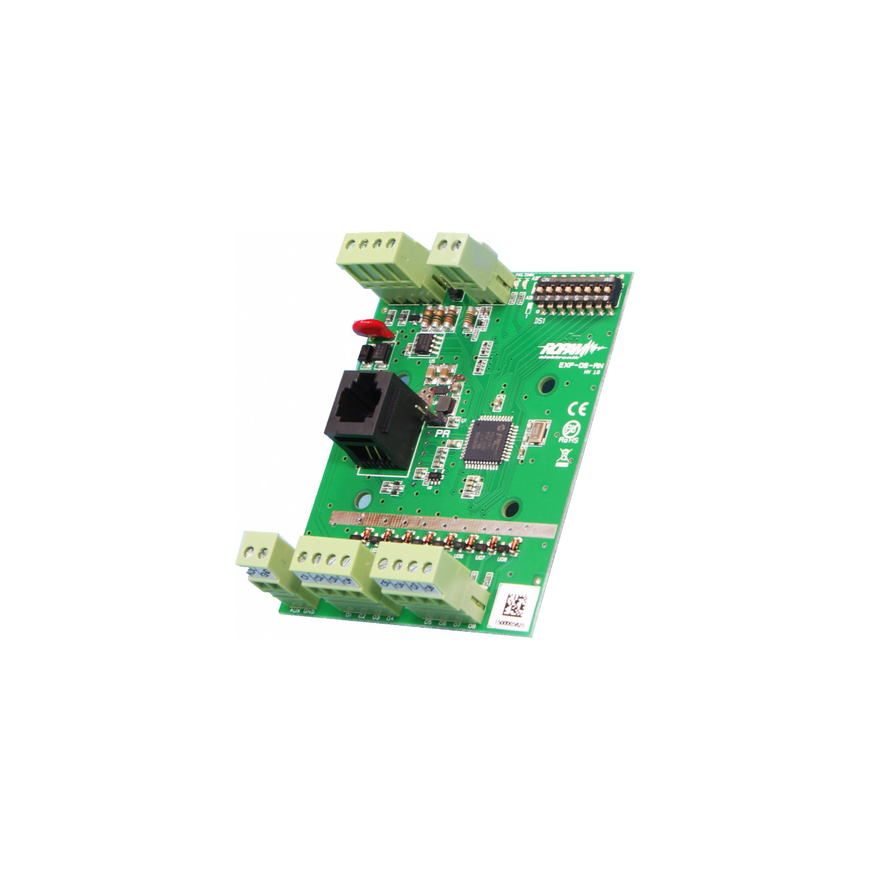

ROPAM OUTPUT EXPANDER EXP-O8T-RN
- Compatibility: OptimaGSM, Hub-SimplePLC, (RopamNET),
- system module on the system bus (-RN RopamNET),
- 8 additional controlled outputs in the system,
- 8 transistor outputs 0.7A (controlled by GND), max voltage 24VDC,
- Protected outputs: short circuit (OCP), overload (OLP), thermal (OHP), overvoltage (OVP),
- MOSFET transistors with a low resistance of 500 mOhm,
- designed to control resistive or inductive DC receivers,
- output control according to the specification of a particular control panel,
- protected 12VDC/100mA AUX power from the RopamNET bus,
- TAMPER input for connecting an anti-tamper contact (NC),
- removable terminal connectors grouped by ports,
- optical signaling of operation and output status,
- PCB assembly in system housings,
- Model: EXP-O8T-RN
