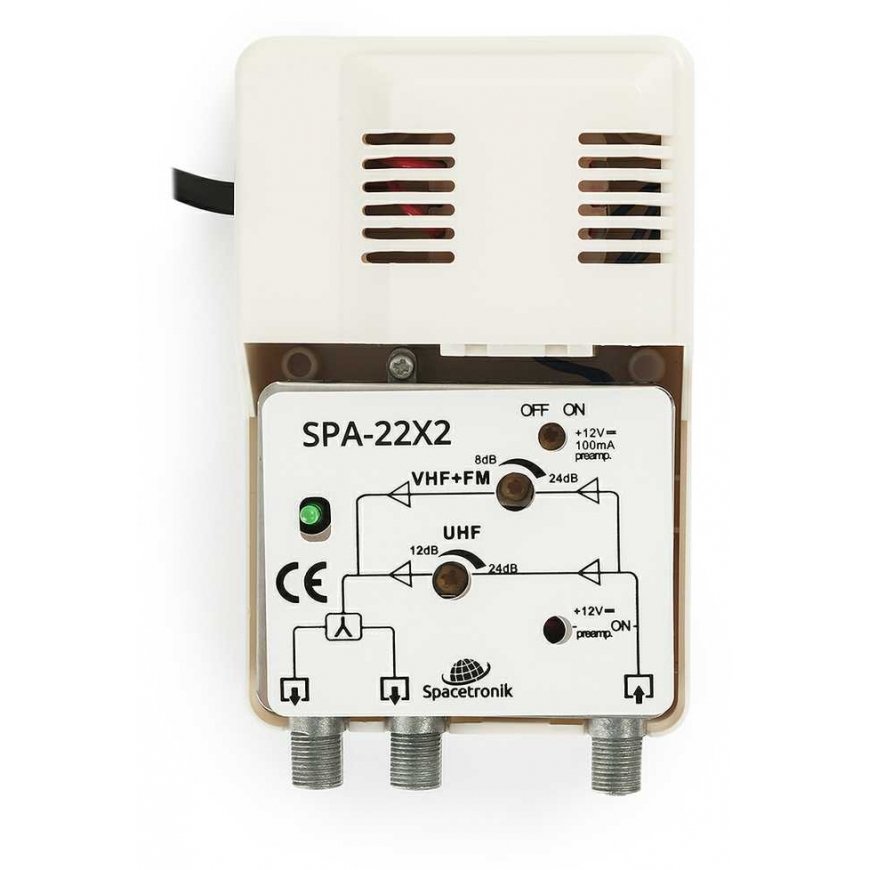

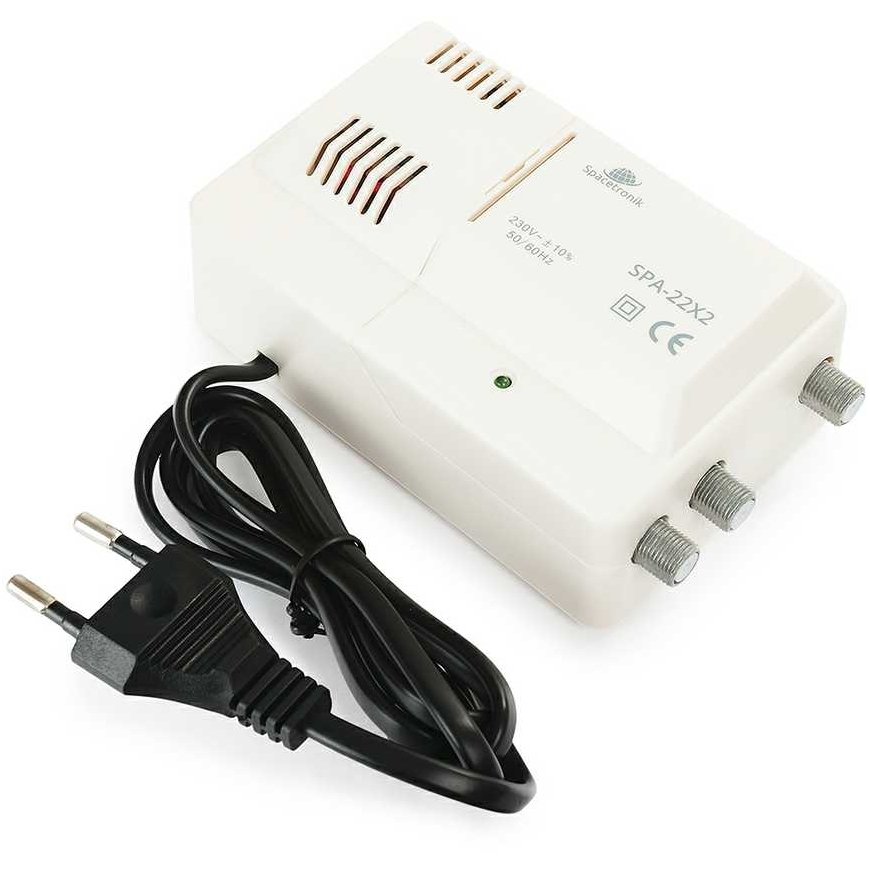

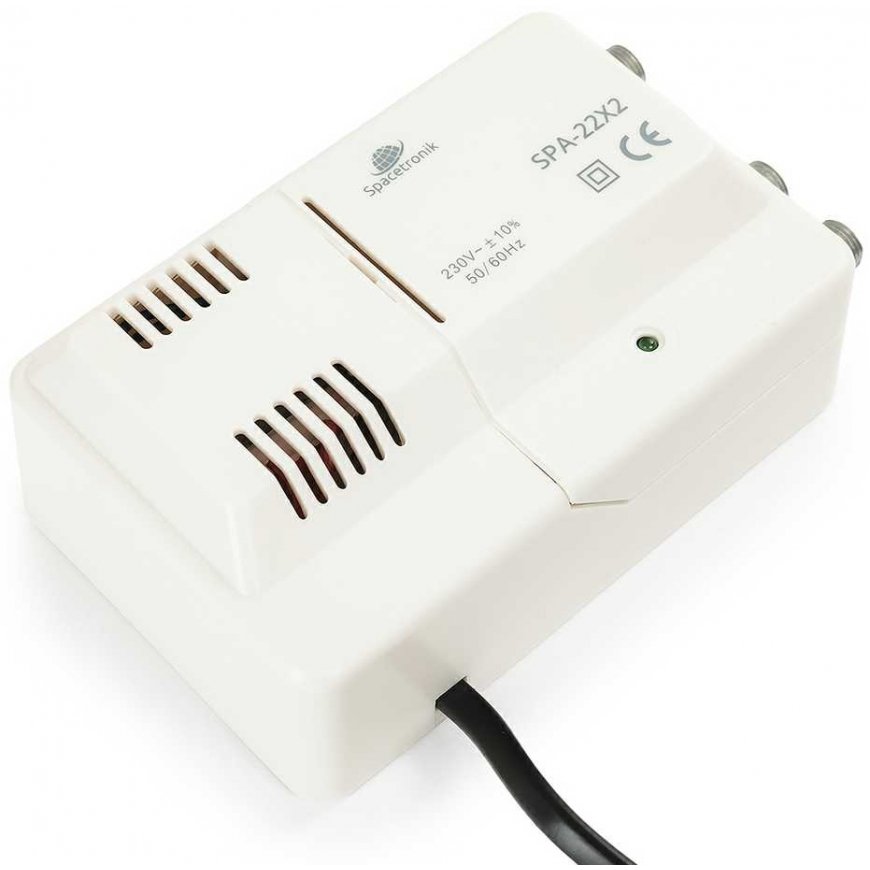

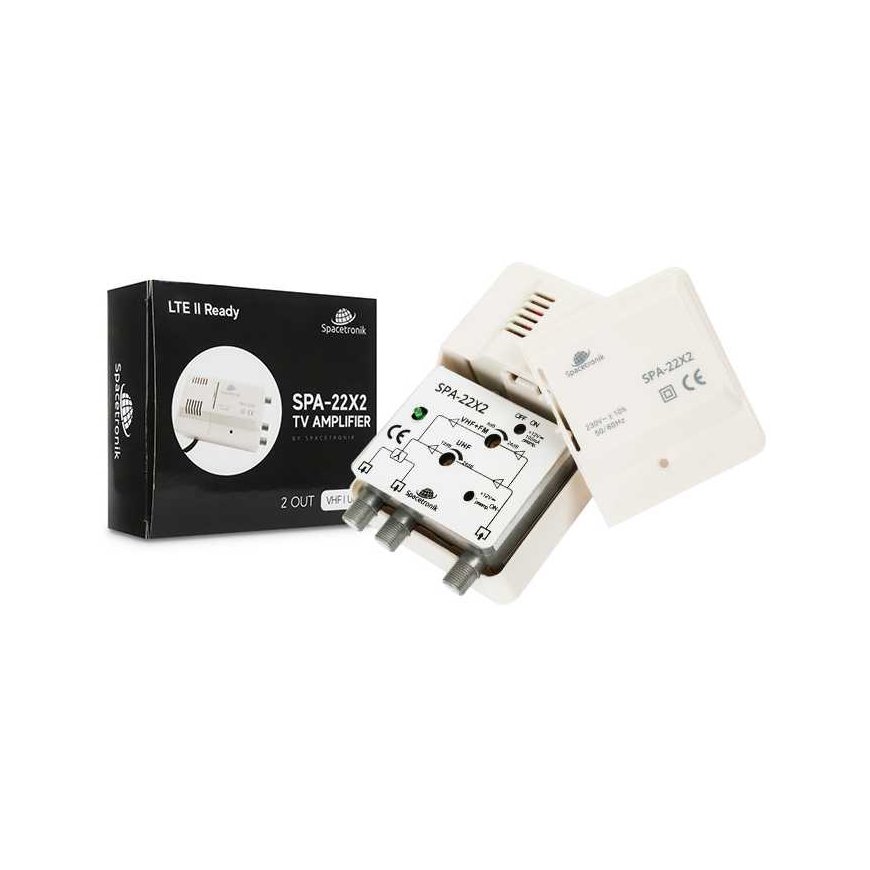

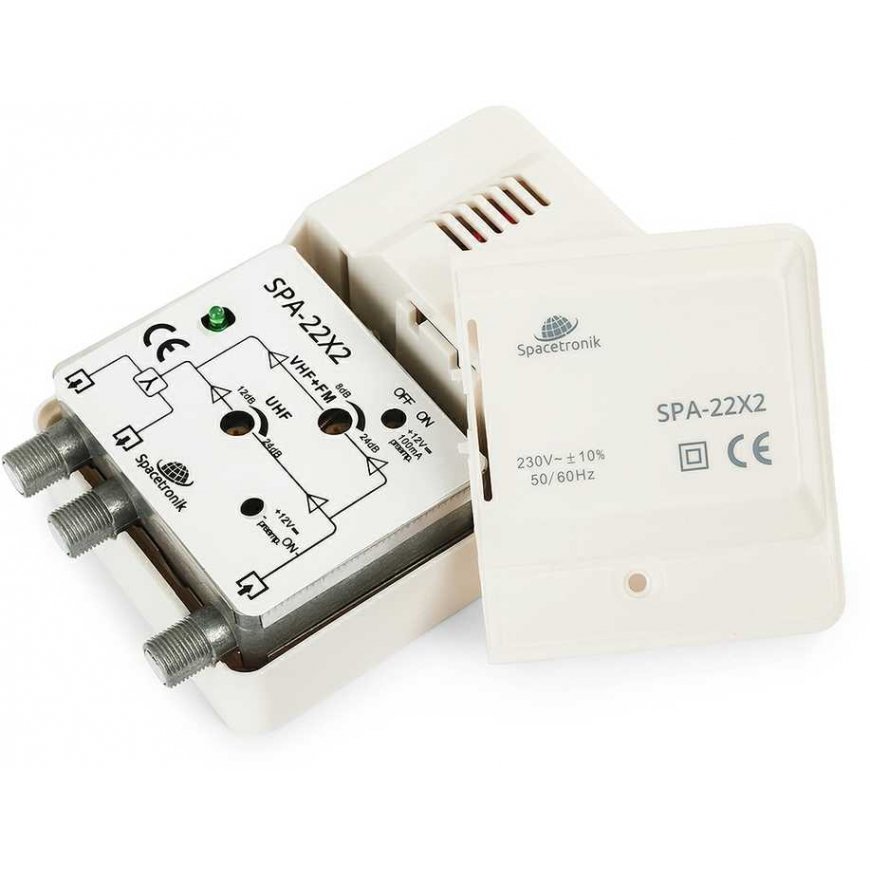

Spacetronik SPA-22X2 FM/VHF UHF 12V TV amplifier

Viss par produktu

Spacetronik SPA-22X2 is available   active amplifier   subscriber for the distribution of terrestrial signals. Designed and built for devices where the signal coming from the antenna is too weak and needs to be amplified for proper reception. The main feature of the amplifier is its operation in the frequency range   40-400 MHz and 470-700 MHz . Thanks to the independent   adjustment of each signal   separately for UHF and VHF+FM, it is possible to adjust the gain to the required signal level in a given band. The use of an amplifier facilitates the installation of antennas using a single cable to transmit signals to many receivers. The amplifier can also be used in cable networks or collective installations. SPA-22X2 is recommended for use in situations where the signal level is low. In addition, the greatest feature of the amplifier is the ability to use it in devices with passive and active antennas.

The most important characteristics of the amplifier

- 1 F input
- 2 F outputs
- Frequency range: 40-700MHz
- OFF/ON power knob
- Signal adjustment for UHF and VHF
- Plastic body

Amplifier with power supply function

The OFF/ON power knob allows you to easily and quickly send 12V 100mA voltage to the antenna preamps without the need for additional power sources between the antenna and the amplifier.

How to connect Spacetronik Broadband Amplifier?

The amplifier is powered by a built-in stabilized power supply, which is not intended for operation in open spaces. It should not be installed in high humidity or near radiators or other heat sources. Ventilation is necessary. Do not apply power until all connections are properly connected due to possible damage.

Technical specifications of the active amplifier:
