Stamos Germany S-PLASMA 85H SELECTION 85A plasma cutter

579.01 €
Ikm. maksa no 15,81 €
3096804

10020044

4260223024061

Piegāde 9-13 d.d.

Šī prece Jūs ieinteresēja
(Lasīt pakalpojumu sniegšanas noteikumus)

Viss par produktu

Manufacturer name: S-PLASMA 85H

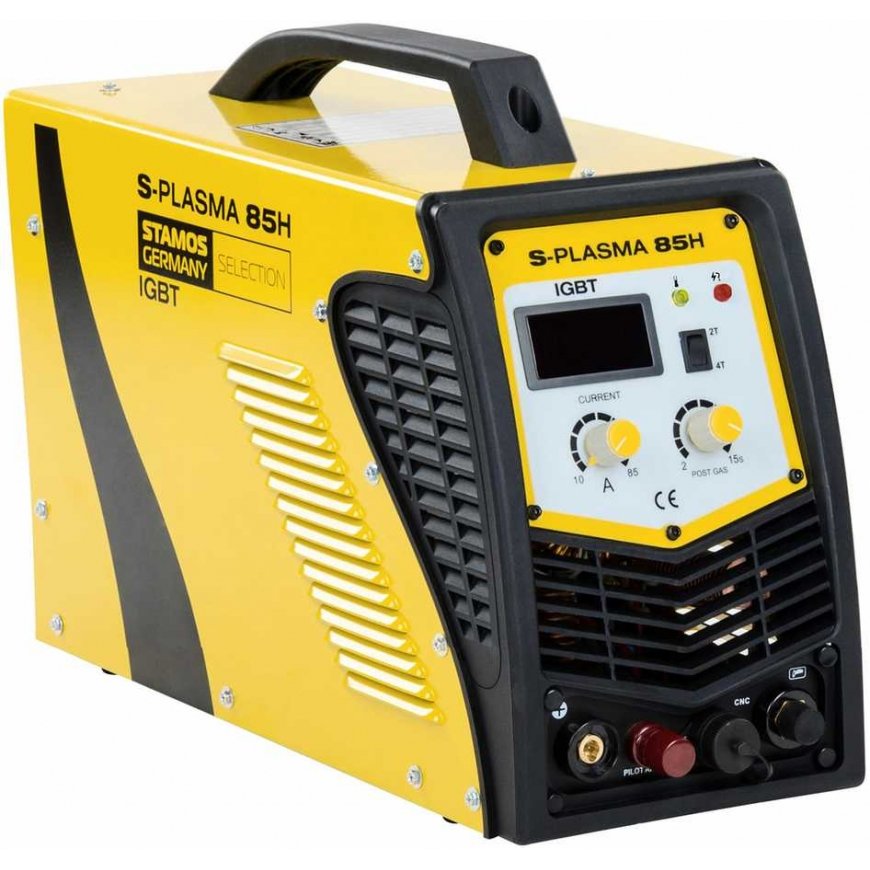

The plasma cutter of the German welding market leader STAMOS GERMANY can reach a maximum cutting current of 85 A. This will allow efficient processing of materials such as steel, nickel, aluminum, copper and other electrically conductive metals. For this reason, the equipment will be used in many industries that require precisely cut metal elements.

The device uses advanced IGBT technology . It uses special bipolar transistors with isolated charges that ensure reliability . Fast switching of parameters and low risk of short circuit is guaranteed by the three-phase semiconductor element. IGBTs also contribute to the small size of the device while maintaining high parameters.


Product features:
  • - Functionality - to cut steel and other electrically conductive metals (titanium, copper, brass, etc.)
  • - Efficiency - modern IGBT technology and contactless arc ignition ensure smooth and stable operation,

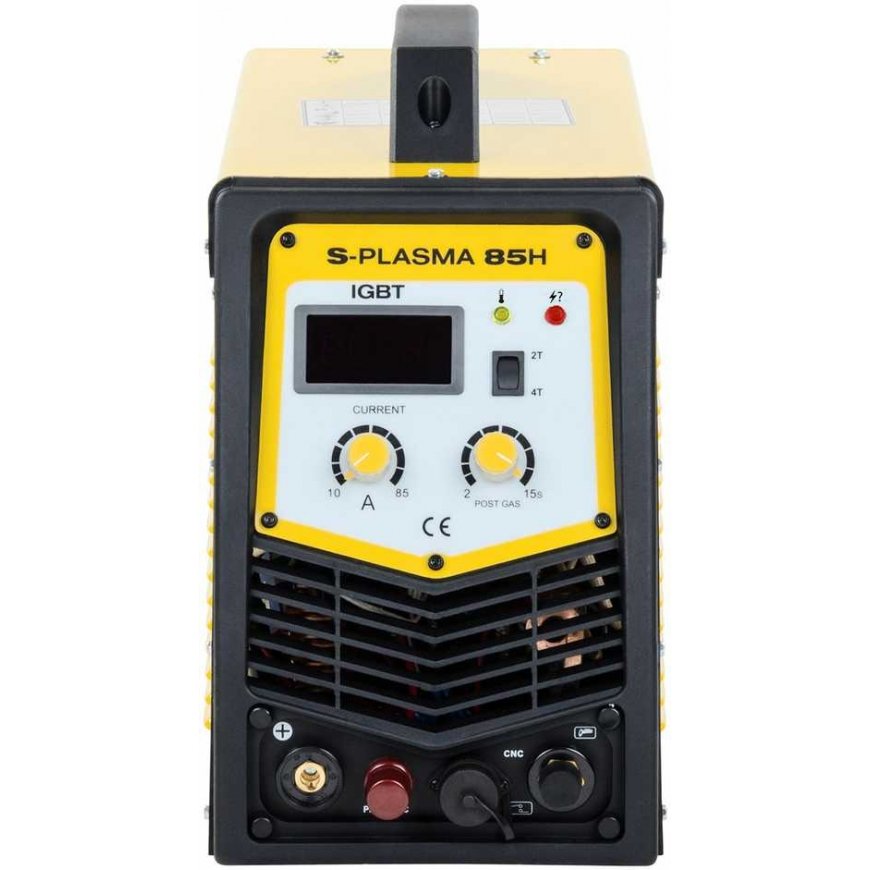

  • - Simple operation - large knobs allow you to accurately set the cutting current without removing gloves,
  • - Readability - LED display shows current intensity even in dark rooms,
  • - Easy transport - comfortable handle, small size and weight make it easy to move the cutter as needed,
  • - Convenience - long 5 and 4 meter cables guarantee freedom of movement when cutting and facilitate work in hard-to-reach areas,
  • - Safety - a special overheating protection system and a built-in fan that ensures heat dissipation,
STAMOS devices are manufactured to strict European standards and have been tested for CE and RoHS compliance. This guarantees a long service life of the device and high quality.

Technical parameters:
  • - Model - S-PLASMA 85H
  • - Catalog number - 2044
  • - Product condition - New
  • - Nominal input voltage - 400 V, 3 phases
  • - Mains frequency - 50 Hz
  • - Nominal input current - 13.2 A
  • - Maximum input current - 18.6 A
  • - Nominal input power - 8.6 kVA
  • - Maximum input power - 13.2 kVA
  • - Open circuit voltage - 280 V
  • - Cutting current - 20 - 85 A
  • - Nominal duty cycle - 60%
  • - Cutting current at 100% duty cycle - 65.8 A
  • - Cutting current in duty cycle 60% - 85 A
  • - Gas flow time - 2 - 15 s
  • - Maximum cutting thickness - 27 mm
  • - Cutting width - 1.2 mm
  • - Required air flow - 175 l/min
  • - Working air pressure - 5.5 bar
  • - Plasma holder - 5 m
  • - Mass cable with clamp - 4 m
  • - Air nozzle - 4 m
  • - Power cable - 3.8 m
  • - Case cooling - Fan
  • - Handle cooling method - Air
  • - Power factor - 0.93
  • - Efficiency (at nominal conditions) - ≥ 0.85
  • - Insulation class - F
  • - Design according to - EN 60974-1 / EN 60974-10
  • - Conformity EG - CE
  • - Degree of protection - IP20 p
  • - Dimensions (LxWxH) - 55 x 37 x 21 cm
  • - Weight - 20.1 kg
  • - Shipping dimensions (LxWxH) - 65 x 36.5 x 44 cm
  • - Shipping weight - 27.6 kg

Working methods:

  • Plasma cutting - thanks to the current intensity of up to 85 A, the device will easily cut metals such as iron, stainless steel, cast iron, copper or aluminum. The air pressure is stepwise adjustable, allowing precise control of the plasma flow. Non-burning of the material, low distortion and even cutting gap are some of the advantages of using Stamos Germany multi-function device.


Features of the device:

  • - 2T/4T , ie two and four stages. With the first one, pressing the button will start cutting, and releasing it will stop the process. In the case of four strokes, the user does not need to hold down the buttons continuously, since pressing and releasing the button starts or stops the work,
  • - Non-contact ignition of the plasma arc allows you to start cutting without touching the material to be processed, which reduces the wear of consumable parts and improves work efficiency,
  • - Gas delay time , ie regulation of gas flow. Protects against oxidation of the welding seam,

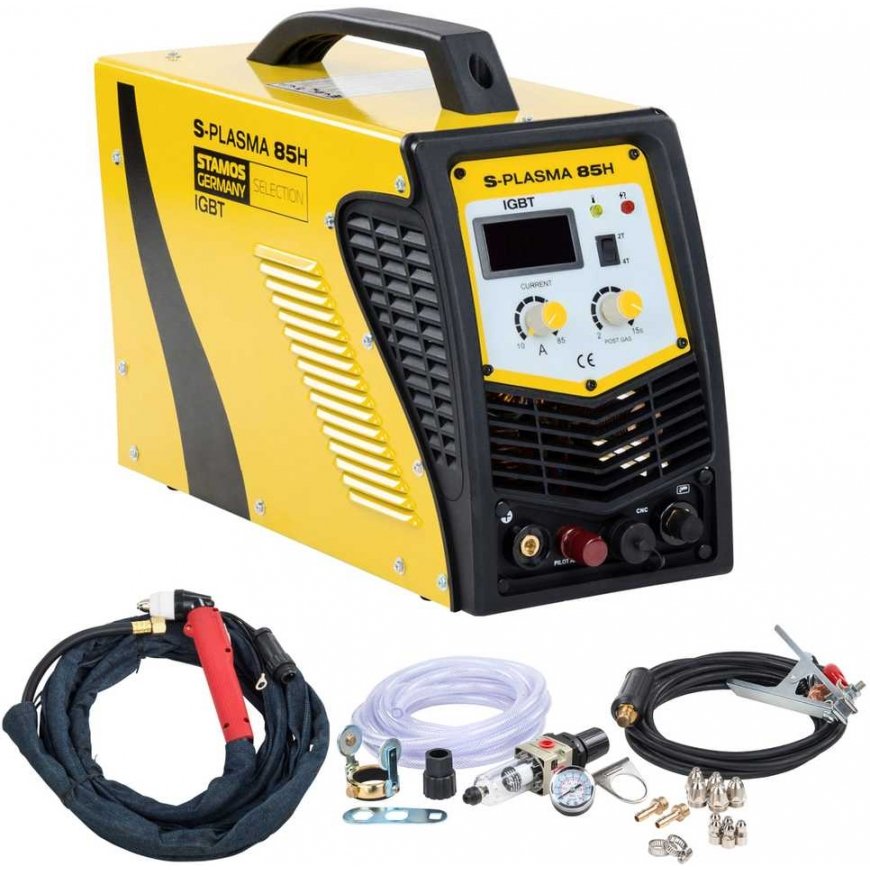

Including:
  • - S-PLASMA 85H cutting machine

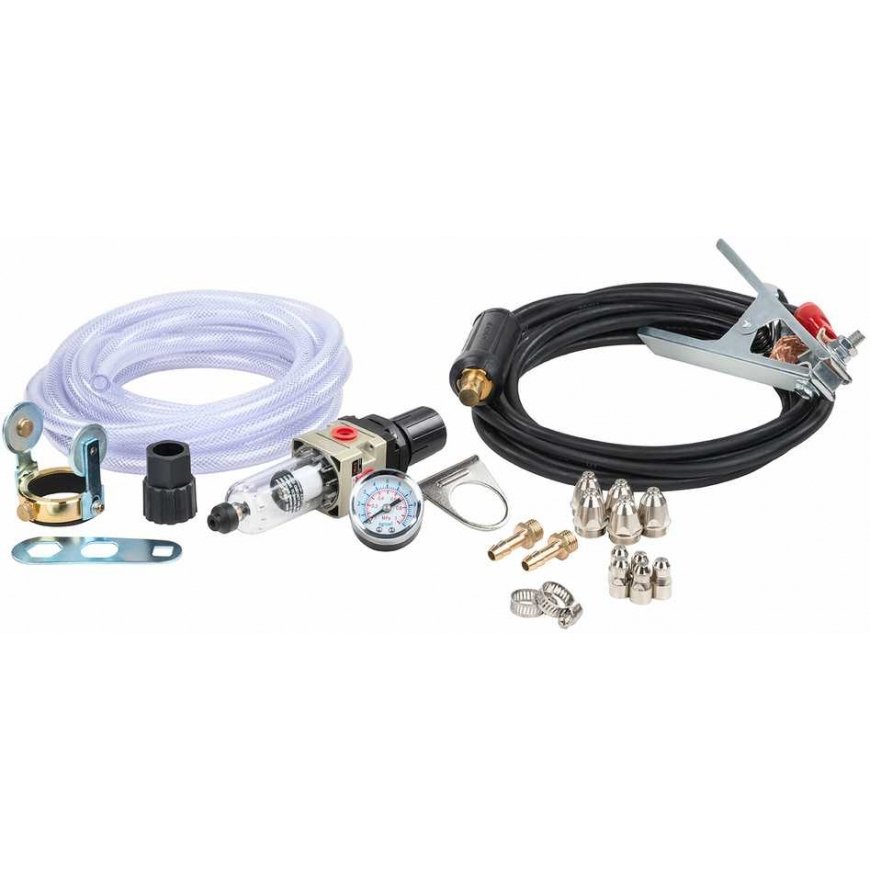

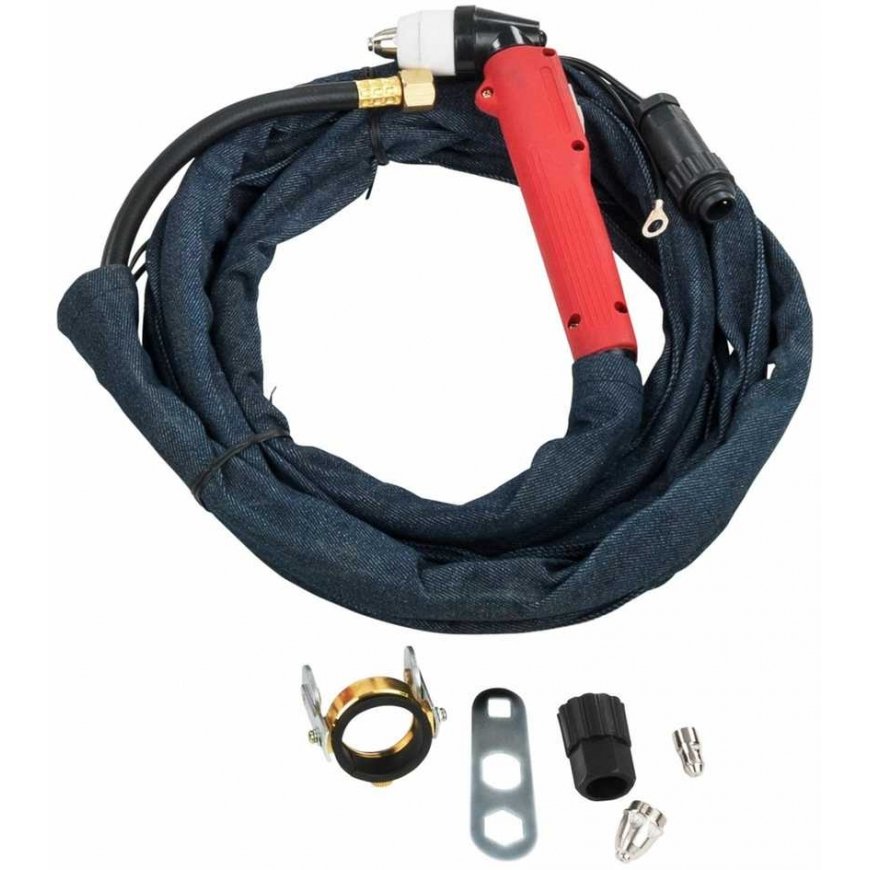

  • - Cutting holder with cable - 5 m
  • - Bulk cable with clamp - 4 m
  • - Air nozzle - 4 m
  • - Pressure regulator
  • - Pressure gauge
  • - Plasma holder components
  • - PL manager
