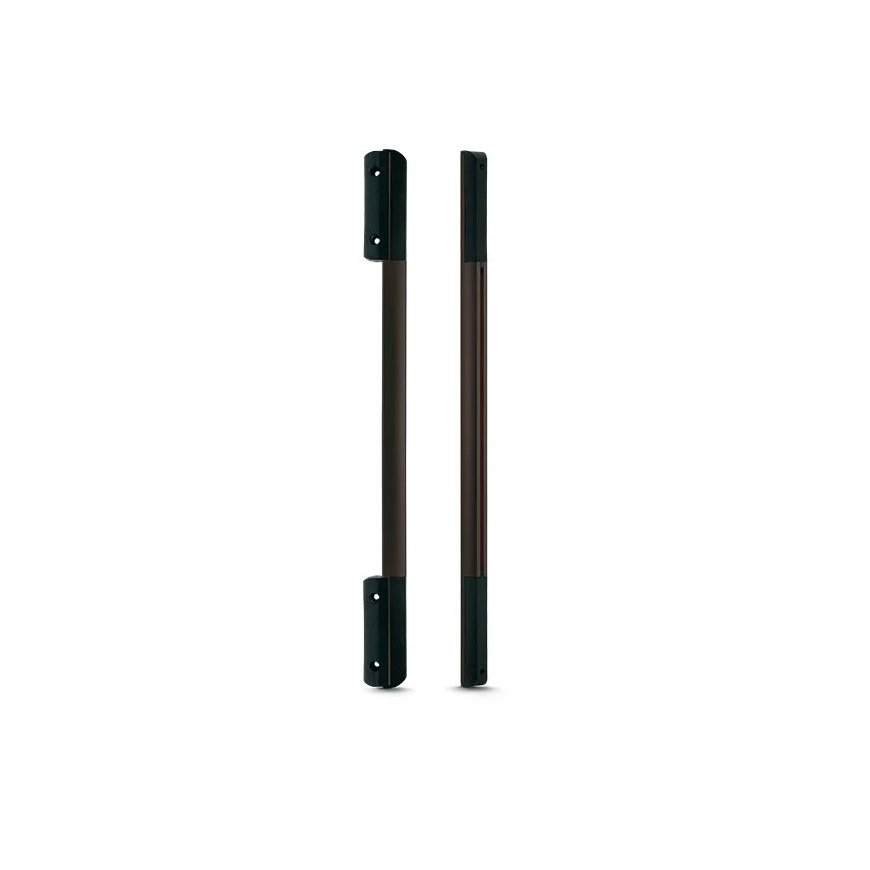

SATEL BARRIER ACTIVA-5 BR (BRŪNA)
2998805 ACTIVA-5-BR
5905033336735
Šī prece nav vairs pieejama
Alarm systems based on passive IR sensors detect an intruder who has already entered the room.
The purpose of a system based on IR barriers is to trigger an alarm when an intruder is about to enter the premises while still outside the facility.
The curtain consists of several active IR barriers that create an invisible "grill" in the window or door niche.
Attempting to breach these "bars" immediately triggers an alarm.
IR curtains are also used to protect controlled passages, gates, fences, valuable objects in open areas, etc. In museums, IR curtains play the role of a non-confrontational, discreet barrier between viewers and valuable exhibits.
| Number of beams : | 5 |
| Detection method : | The number of programmable beams whose violation can trigger an alarm |
| Operating range in outdoor conditions : | 10 years |
| Operating range indoors : | 20 years |
| Beam characteristic : | Transmission coding |
| Duration of interruption (radius damage) : | 40 ... 1000 ms |
| Alarm duration : | 2 s |
| Anti-sabotage contact : | NC |
| Installation : | The possibility of fixing to the wall |
| Meals : | 12V DC |
| Current consumption : | max. 45 mA |
| Angle adjustment limits : | - |
| Sealing class : | IP44 |
| Operating temperature / relative humidity : | -25 °C ... 55 °C / max. 95% |
| Selected features : | smooth sensitivity adjustment RS-232 port enabling programming with the help of a computer and the installed ACTIVA program |
| Color : | Brown |
| Transmitter or receiver dimensions : | 1315 x 25 x 26 mm |
| Transmitter and receiver weight : | 0.618 kg |
| Manufacturer / Brand : | SATEL |
| Warranty : | 2 years |
