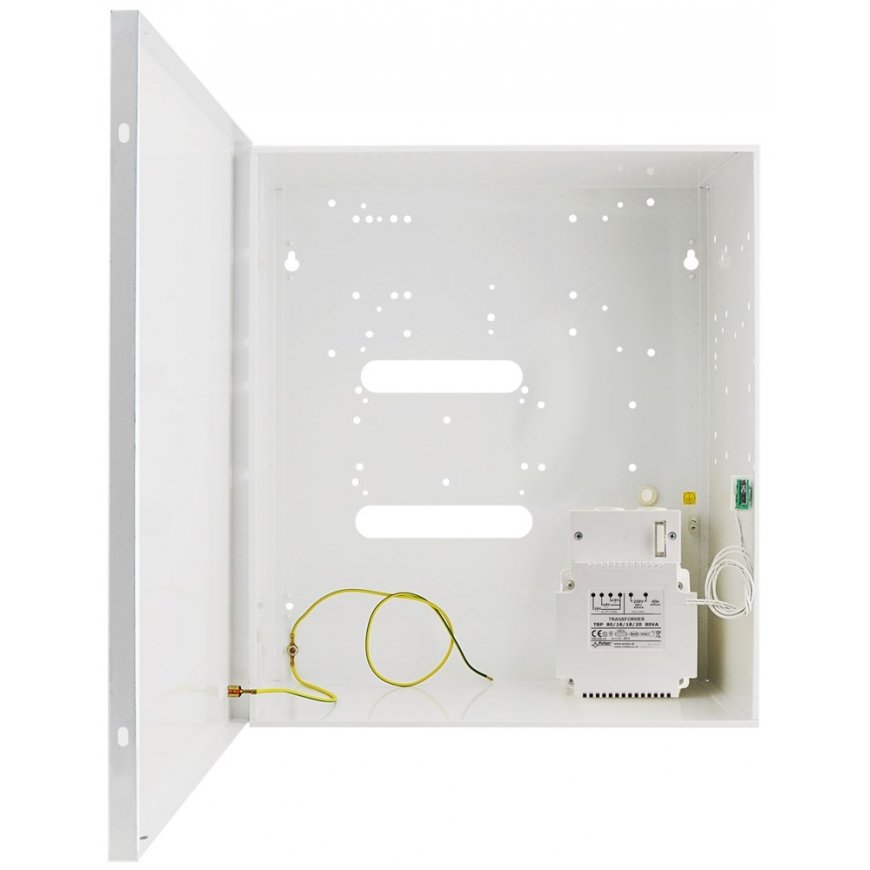

Case ALARM 24/TRP80/DS AWO301 PULSAR Control panel housing: Control panel housing: DSC: 1) PC1616, 1832, 1864, 4020, 6010, 4x (4108, 5108, 6108, 308, 45108, 8 5204, 5400, 5200, 5580, 4216, 6216, 6400) MODULES: 1) (4204, 6204) + 4x (4108, 5108, 6108, 5100, 4108, 5,5, 0,5) 5580, 4216, 6216, 640 0) 1) CA10, VERSA10,15, INTEGRA 24, 32, 64, 128 + 6x CA64E (SM) 2) CA10, VERSA10,15, INTEGRA 24, 32, 64, 5x 12, 8 -OC , O-ROC, OR, VGM- 16, SR, ADR, ACC-KP-PS) 3) 6x CA64 (EPS, O-OC, O-ROC, OR, VGM- 16, SR, ADR, ACC-KP-PS) 3x CA64 (PP, OPS-OC, OPS-R, OPS-ROC) + CA64 (EPS, O-OC, O-ROC, OR, VGM-16, SR, ADR, ACC-KP-PS) + 3x CA64E (SM) TECHNICAL SPECIFICATION: Dimensions: W=320, A=400, D+D1=170+8 [+/-2] External dimensions of the lamp: W1=355, H1=405 [+/-2 mm] Net weight / gross: 6.08 kg / 6.35 kg [+/-0.1 kg] Battery space: 24Ah/12V dry lead acid (SLA) Transformer: TRP 80VA/16V/18V/20V in PC/ABS housing, UL94 class - V0, IP30 Power supply: 230V /AC (-15%/+10%), 50Hz, 400mA (max.) Power: U1=16V/AC or U2=18V/AC or U3=20V/AC(- 5%) ,+15%), I1 =5.0A or I2=4.5A or I3=4.0A (max.) Operating conditions: II environmental class, -10°C÷ 40°C Material: DC01 tin, thickness: 0.7mm, corrosion protection, color: RAL 9003 Use: indoor Tamper protection: 1 x microswitch: opening case, 0.5A@50V/DC max. NC - normally closed contacts Closure: screw-on: tin screw x 4 Manufacturer code: AWO301 / AWO301
