Produkta tonis un faktiskā krāsa var atšķirties no attēlā redzamā, jo attēli ir ilustratīvi. Produkta apraksts ir vispārīgs un, iespējams, tajā nav iekļautas visas produkta īpašības.

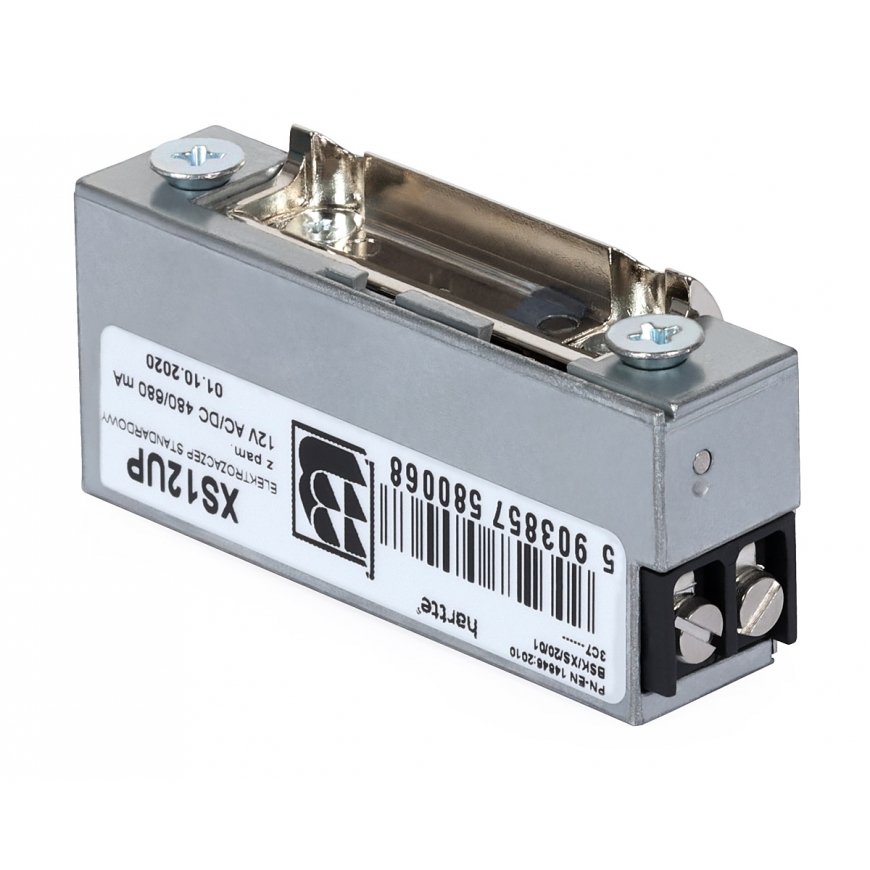

HARTTE XS12UP elektriskā streika XS sērija 12V AC/DC ar iekšējo atmiņu
2997134 XS12UP
5903857580068
Piegāde 11-15 d.d.
Viss par produktu
The Hartte electric strikes XS-series are narrow (only 16.2 mm wide) and have a small dimension enabling mounting in narrow profiles and door frames.
They are built symmetrically - fit perfectly to left and right doors of various types.
Radius latch (it is not outstanding out of electric strike outline) and adjustment in the range of 3.5 mm requires less punching, and making installation easier and quicker.
The memory function provides control of the electric latch by providing a short voltage pulse, after which the latch is open even until the first opening of the door.
| Nominal voltage : | 10 ... 14 V AC/DC |
| Current consumption : | 480mA @ 12V AC 680mA @ 12V DC |
| Usage : | right door / left door |
| Ratchet Blocker : | - |
| Memory function : | ✔ |
| Reverse work : | - |
| Freedom regulation : | 3.5 mm |
| Permissible door load acting on the lock : | 3000 N |
| Allowable duration of continuous operation : | - |
| Main features : | Symmetrical housing Narrow profile : 16.2 mm, Operating mode : NC Resistance : 17.6 Ω Number of opening cycles : 200000 Radial shape of the latch - when opening the latch is not going beyond the outline of electric strike |
| Weight : | 0.136 kg |
| Dimensions : | 16.2 x 28 x 67 mm |
| Manufacturer / Brand : | DISAPPEARING |
| Warranty : | 2 years |
