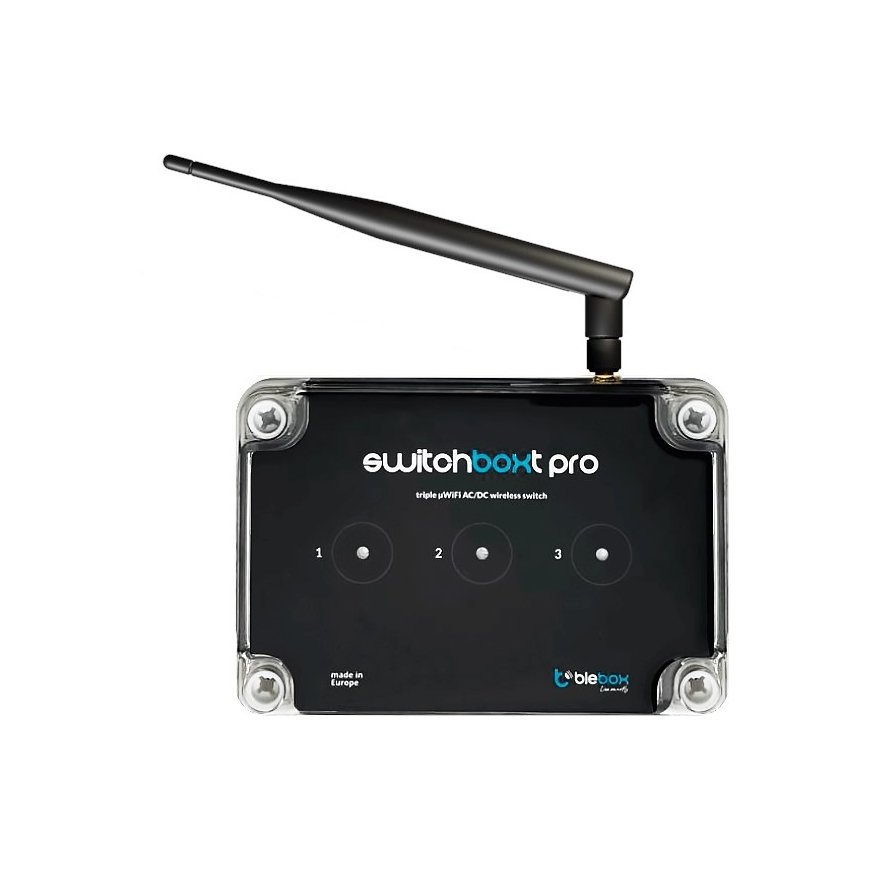

BLEBOX switchBoxT PRO
118.95 €
Ikm. maksa no 3,96 €
2993905 35569
5900168580510
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The BleBox SwitchBoxT Pro controller contains three potential-free relays that can be used to control electrical devices from 0 V to 230 V AC / DC current. Each output supports devices up to 3680 W. The module allows simultaneous powering of 12 V DC, 24 V AC or 230 V AC devices. The BleBox switchBoxT Pro module has an integrated WiFi system, thanks to which it is possible to remotely control devices from anywhere in the world using an app for mobile devices. Main features:
- Wireless control of any three devices from your smartphone
- Time graph and astronomical clock
- Three touch buttons on the front panel
- 3 AC/DC control signals can be connected
- Wireless automation along with temperature, rain, air quality, wind and more. sensors
- Ability to create wireless WiFi buttons
- Ability to pair μWiFi remote controls
- Configurable touch panel lighting color
- An external antenna is added to extend the range
Specifications:
- Supply voltage: 230 V AC
- Energy consumption:
- < 1 W (Standby)
- < 2 W (during operation)
- Number of control outputs: 3
- Output type: relay, NO
- Maximum power:
- AC1 (resistive, power factor: 0.95):
- 3x (16 A / 5 V to 230 V AC) = 3x 3680 W = ~11 kW AC
- DC:
- 3x (16 A / from 5 V to 24 V DC) = 3x 380 W DC
- AC3 (IEC60947-4-1):
- 3x ~0.5 kW / 240 V AC = ~1.5 kW (star motor)
- Galvanic isolation: yes
- Number of buttons: 3
- Button type: capacitive (touch), illuminated, integrated
- Number of entrances: 3
- Input Type: Opto-isolated (Isolation)
- Input voltage range: 12V to 230V AC/DC
- Supported buttons: monostable (bell), bistable (traditional, cross) - without illumination
- Signaling on the body: colored, illuminated front panel, which informs about the operating status of the device
- Controller alarm: flashing blue diagnostic diode (can be disabled in controller option)
- Housing: surface mounting box (controller cast in halogen-free polyurethane), self-extinguishing, conforming to thermal class B (130 °C)
- Installation method: 2 installation holes, installation in a place protected from rain
- Degree of protection: IP44
- Controller operating temperature: -20 °C to 50 °C
- Antenna Output: Yes
- Antenna: omnidirectional, gain 5 dB - included in the set
- Transmission standard: µWiFi, compatible with WiFi 802.11g
- Transmission type: two-way, encrypted
- Operating mode: Direct WiFi connection (as access point), WiFi connection (via standard router), connection with access from anywhere in the world (only Internet access required)
- Transmission frequency: 2.4 GHz
- API: Open
- Compatible devices and systems: iOS devices, Android devices, computers and mobile devices that support HTML5
- Encryption: WPA2-PSK and Authenticated Encryption (AEAD)
- Dimensions: 129 x 89 x 57 mm
Included:
- BleBox switchBoxT Pro - 3x potential-free relay 230 V WiFi - Android / iOS app
- WiFi antenna
