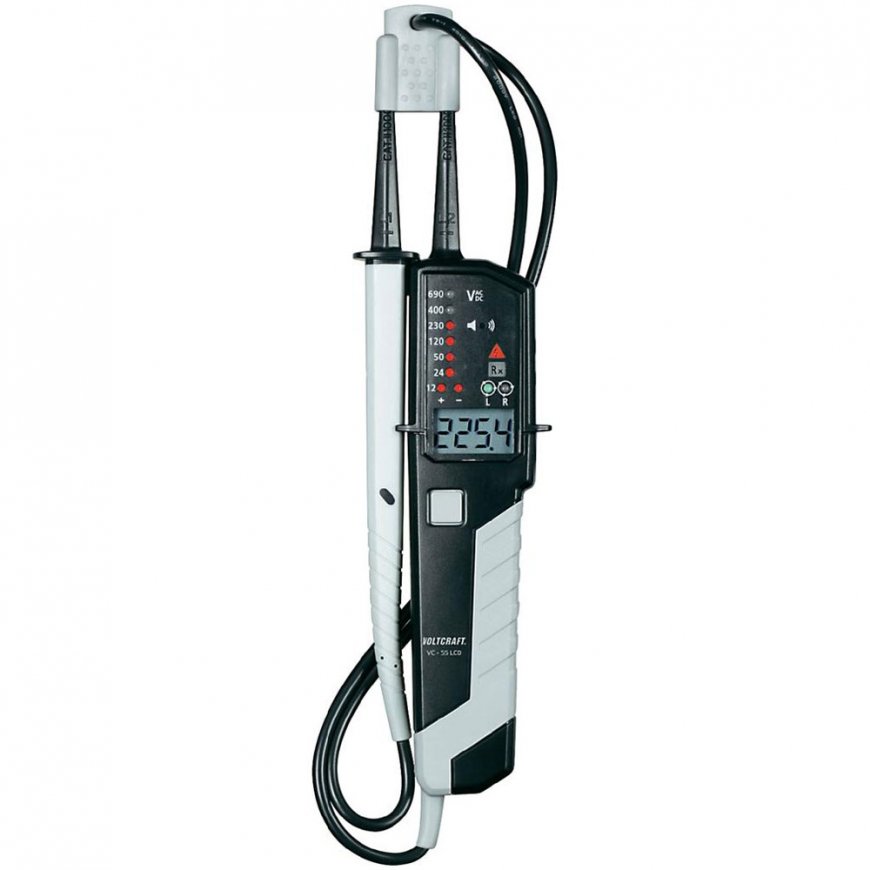

Voltcraft VC-55 LCD bipolar voltage tester The bipolar voltage tester is designed and tested according to EN 61243-3/VDE0682 standards. The voltage is displayed using LEDs that set the range from 12 - 690 V. In addition, the effective value is displayed on the LCD from 0 to 690 V. Features DC and AC voltage test (LED / LCD) Polarity test (LED / LCD) Optical and acoustic permeability tester Single-pole phase testing capability 100 - 690 V/AC Phase sequence Integrated measuring point lighting Equipment CAT III 1000 V, CAT IV 600 V LED and LCD display Continuity test Single-pole phase test Phase sequence Integrated flashlight Package contents Exam 2 test tips 4 mm BatteryTechnical specificationsDimensions: (L x H) 65mm x 242mmSize, height: 242mmSize, width: 65mmProtection: IP64Measurement category: CAT III 1000 V · CAT IV 600 VType (manufacturer): VC 55LCDOperating temperature: -15 - 55 °CInternal resistance: 200 KΩ Power supply: 2x micro pencil batteries (AAA) Current consumption: 3.5 mA Voltage measurement range: 12 - 690 V AC/DC
