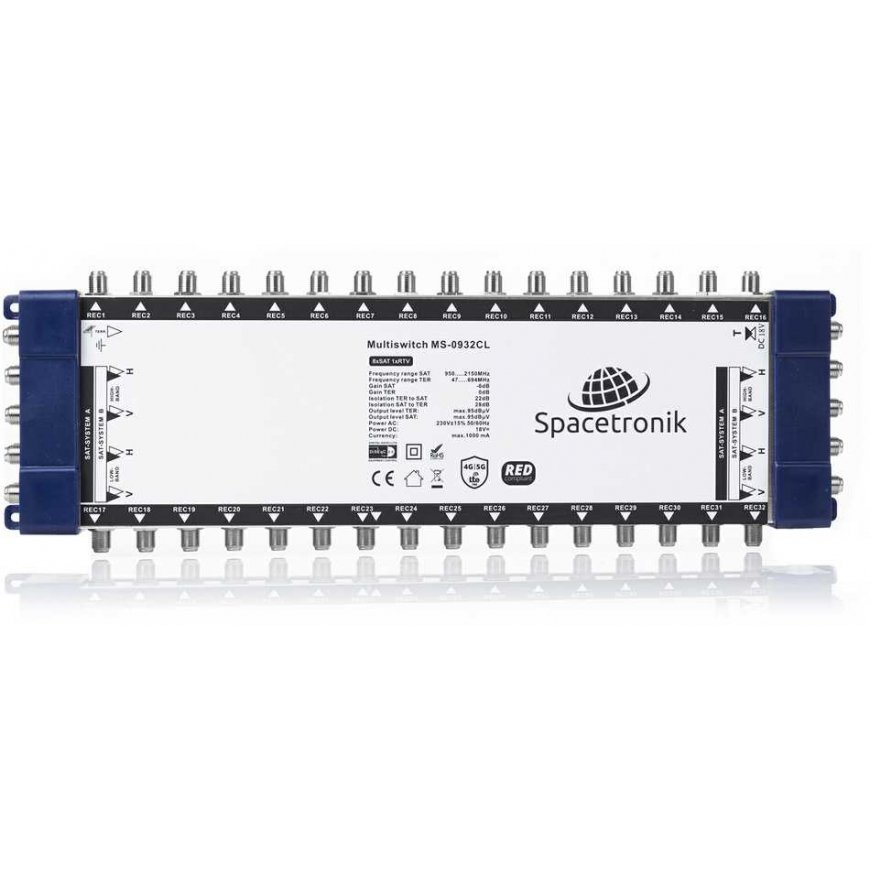

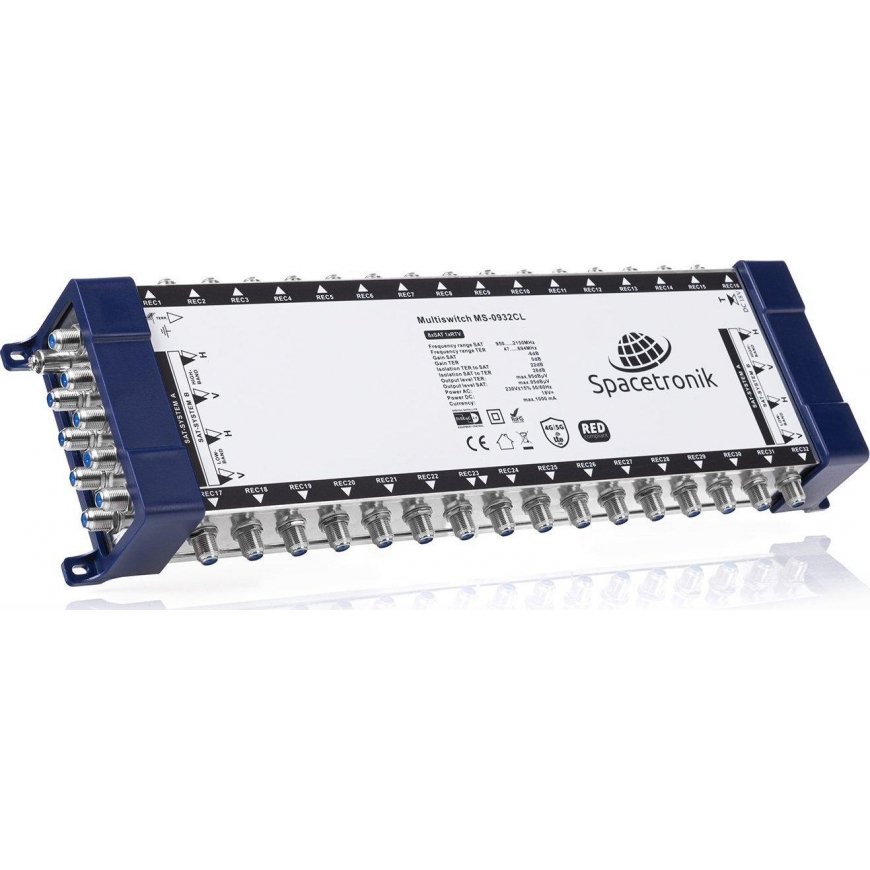

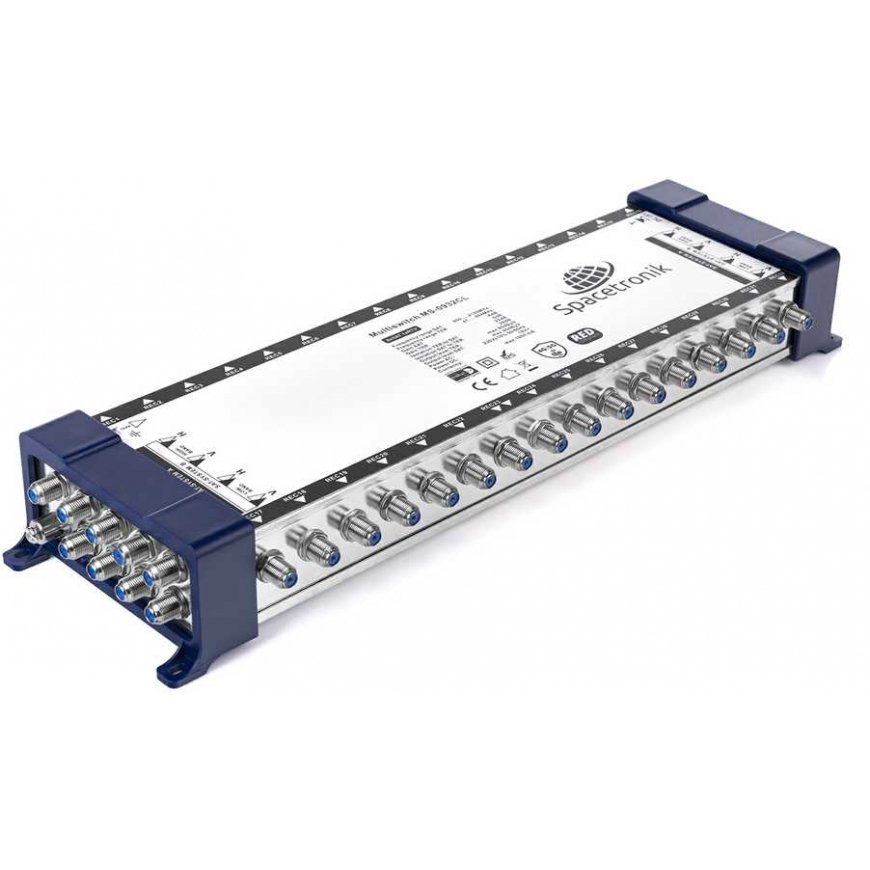

Spacetronik Pro series MS-0932CL LTE cascade multiswitch Pro Series 9/9 to 32 cascade multiswitch with 8 SAT inputs + 1 antenna antenna input will allow to distribute the signal in a collective installation to another cascade or end multiswitch and up to 32 end users. Multiswitch has a high-class power supply included in the kit, which allows stable operation of the device. The body and handles are made of the highest quality materials. A cascading multiswitch is a device that allows you to freely resize your network by adding more devices. Separate multiswitches are connected in series, connecting signals from loop outputs. If no further expansion of the device is planned, the last device in the cascade is the final multi-function switch. Signals from branch outputs, in turn, are fed to end sockets, subscribers. Cascaded multiswitches can be placed on different floors of the building, which allows to significantly shorten the distance from the output of the multiswitch to the satellite receiver. Also, in the event of a possible failure, the cascade multiswitch can be quickly disconnected from the installation and replaced with an efficient device that reduces the time of failure and its repair to the minimum necessary. Where to install the Spacetronik multiswitch? When installing the device, take into account the current installation conditions related to the power source: - location away from the influence of weather conditions - protection against access by third parties - adequate ventilation. Parameters that distinguish Spacetronik multiswitch from competitors - isolation in SAT and TV channels - separation of inputs/outputs - dBuV output signal level - attenuation in the return path - parameters - PSU power supply - power supply - PSU stability and additional TER power source What can be connected to the multiswitch? - two signal inputs from the SAT Quattro converter - one DVB-T/T2 terrestrial signal input - 32 total SAT+DVB-T/T2 signal outputs9/32 multiswitch technical specification Number of inputs: 8 SAT, 1 TER Number of outputs: 20 Connectors: F socket SAT Frequency range: 950-2150MHz TER Frequency range: 47-694MHz SAT gain: -3-6 dB TER gain: -8-1 dB TER to SAT isolation: 28 dBI SAT to TER Isolation: 28 dBI Polarity Separation Isolation H/V: 25 dB TER Output Isolation: 22 dBISAT Output Isolation: 30 dBSAT Return Loss Input: 10 dBSAT Return Loss Input: 10 dBSAT Return Loss: 7 dBTER Return Loss Return BSAT1: 8 Returns loss: 1 output level (IMD3 - 35 dB): 100 dBµVTER output level (IM D3 - 60 dB): 83 dBµVI/O impedance: 75 Ohm Integrated power supply
