Produkta tonis un faktiskā krāsa var atšķirties no attēlā redzamā, jo attēli ir ilustratīvi. Produkta apraksts ir vispārīgs un, iespējams, tajā nav iekļautas visas produkta īpašības.

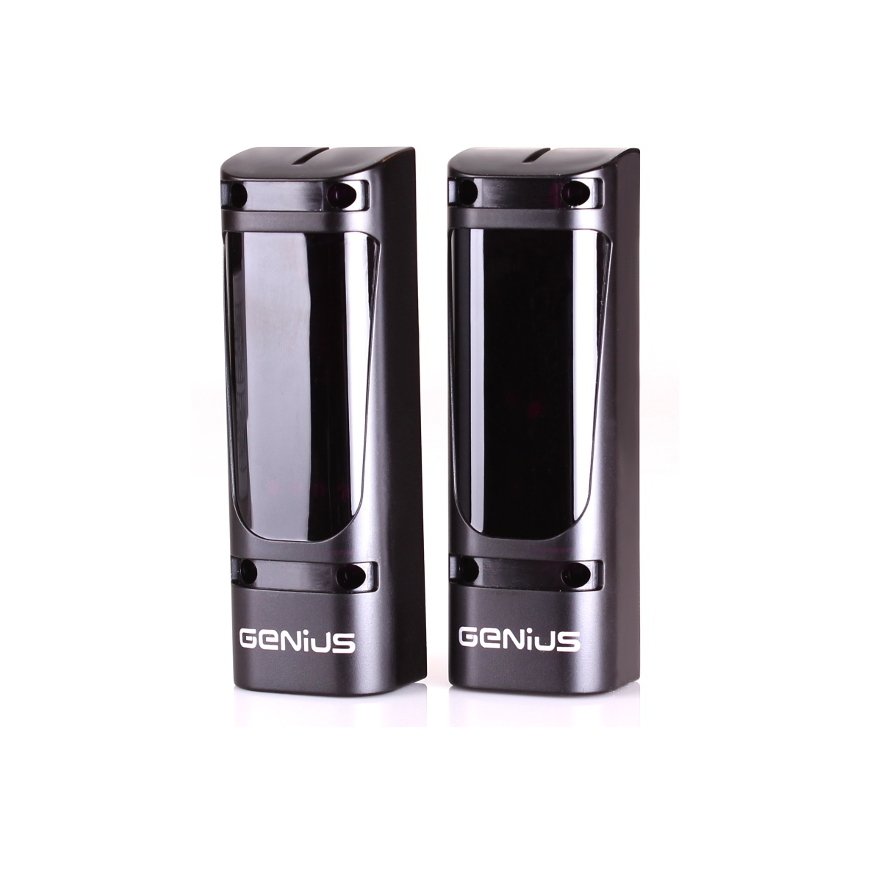

Fotoelementu ģēnijs - Vega
2627749 13717
8055195019728
Piegāde 4-6 d.d.
Viss par produktu
Photocells are designed to cooperate with gate automation systems.
Photocells GENIUS-VEGA have the function of automatic adjustment in the axis.
The set includes a transmitter and a receiver.
An infrared beam is sent from the transmitter to the imyuva.
If the object of the created obstacle (such as a car or a person) appears in the field, the photocell will react and send a signal to change the input state of the control unit.
The devices are resistant to moisture absorption and have a housing that protects against the effects of unwanted sunlight.
| Radiation angle : | ± 7 ° @ 20 m , ± 13.5 ° @ 5 yrs |
| Range of operation : | 20 years |
| Reaction time : | 13 ms |
| Meals : | 24 V AC/DC |
| Current consumption : | 20 mA Transmitter without protection 30 mA Receiver |
| Number of relay outputs : | 1 |
| Maximum contact load : | max. 60 VA / 24 W |
| Output : | 1 x NC |
| Main features : | Cooperation with the GENIUS gate automation system Automatic correction function Modulated infrared beam Very little space is taken up due to compact dimensions Overhead / column mounting Resistance to changes in environmental conditions EN 12453 compliance - Type D - Category 3 |
| Body : | Plastic |
| Sealing class : | IP54 |
| Color : | Black |
| Working temperature : | -20 °C ... 55 °C |
| Weight : | 0.040 kg Transmitter without frame 0.046 Receiver |
| Dimensions : | 105 x 35 x 25 mm Transmitter without cover / Receiver |
| Manufacturer / Brand : | GENIUS |
| Warranty : | 2 years |
