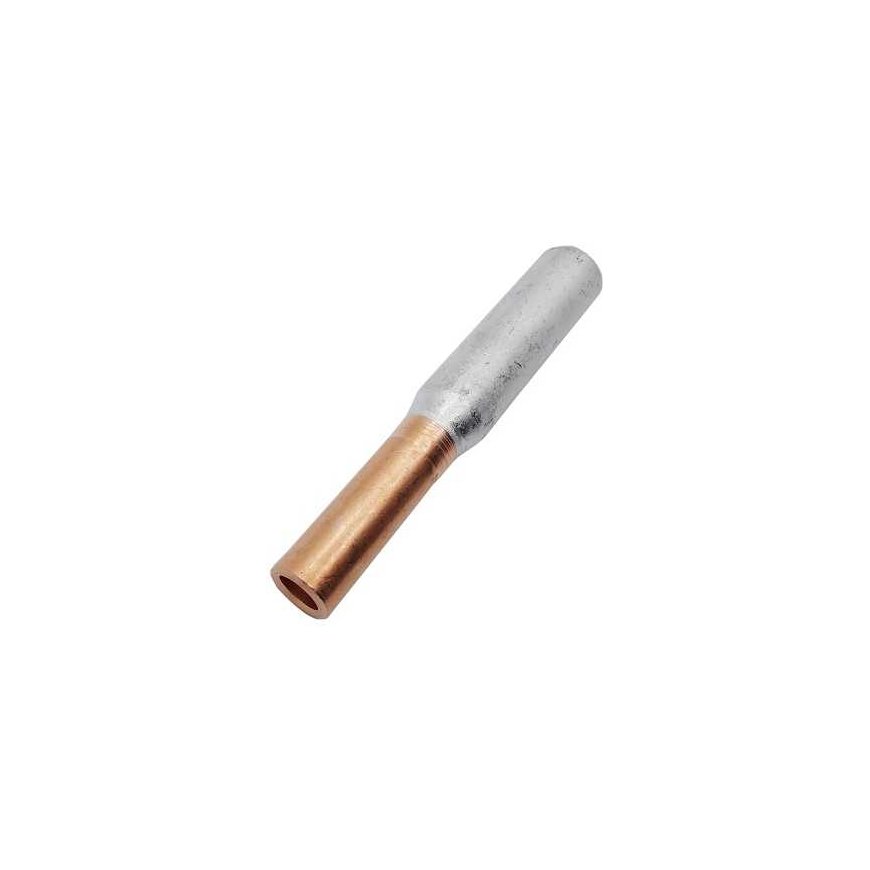

Hismart Pressed bimetallic connector, aluminum+copper, for 50+35mm2 cables, 10 pcs.
29,00 €
2609934 NV822256
9990000822256
Piegāde 2-4 d.d.
Šī prece Jūs ieinteresēja
Features:
A contact made of two different metals, tube-shaped, pressed.
Intended for connecting aluminum wires with ordinary multi-core copper wires.
Solid central barrier.
Pre-filled with joint compound.
Fused by friction.
Technical data:
Cross-sectional area of aluminum cable: 50.0mm².
Copper cable cross-sectional area: 35.0mm².
Material: copper >/=99.9% + aluminum >/=99.5%.
Surface treatment: no.
Isolated: no.
Connection angle: 180° (horizontal).
Connector length: 90mm.
Aluminum joint depth: 42mm.
Copper connection depth: 32mm.
With viewing cavity: no.
Inner diameter of aluminum connector: 9.5mm.
Outer diameter of aluminum connector: 16mm.
Inner diameter of copper connector: 8.5mm.
Outer diameter of copper connection: 13mm.
The set consists of: 10 pcs.
