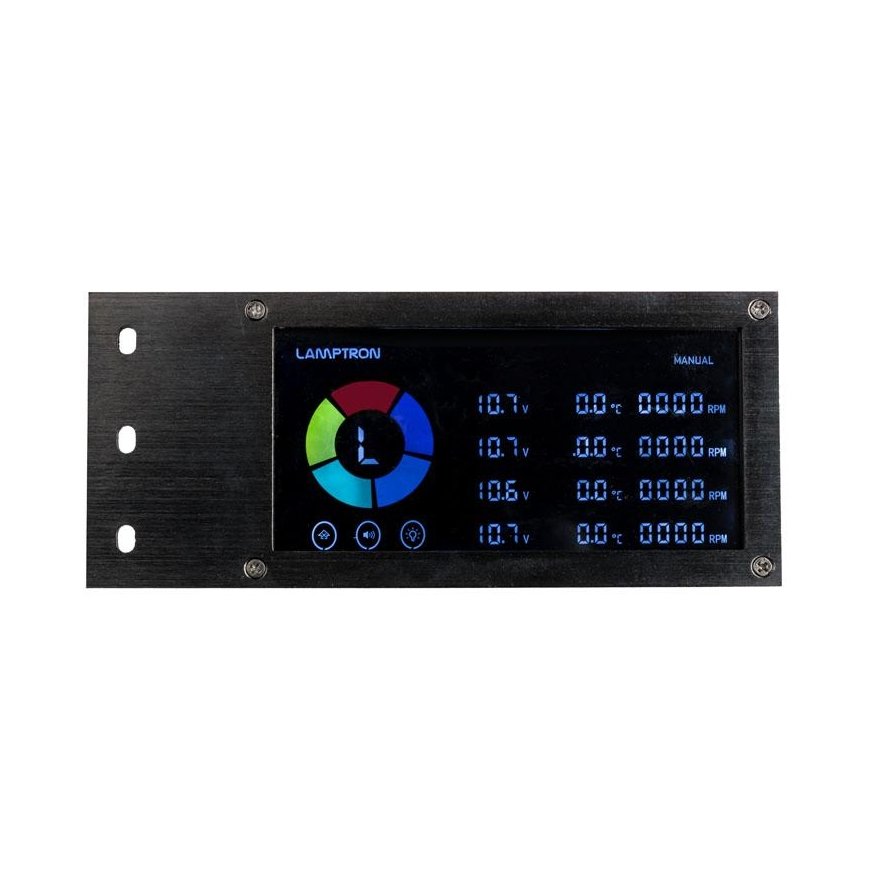

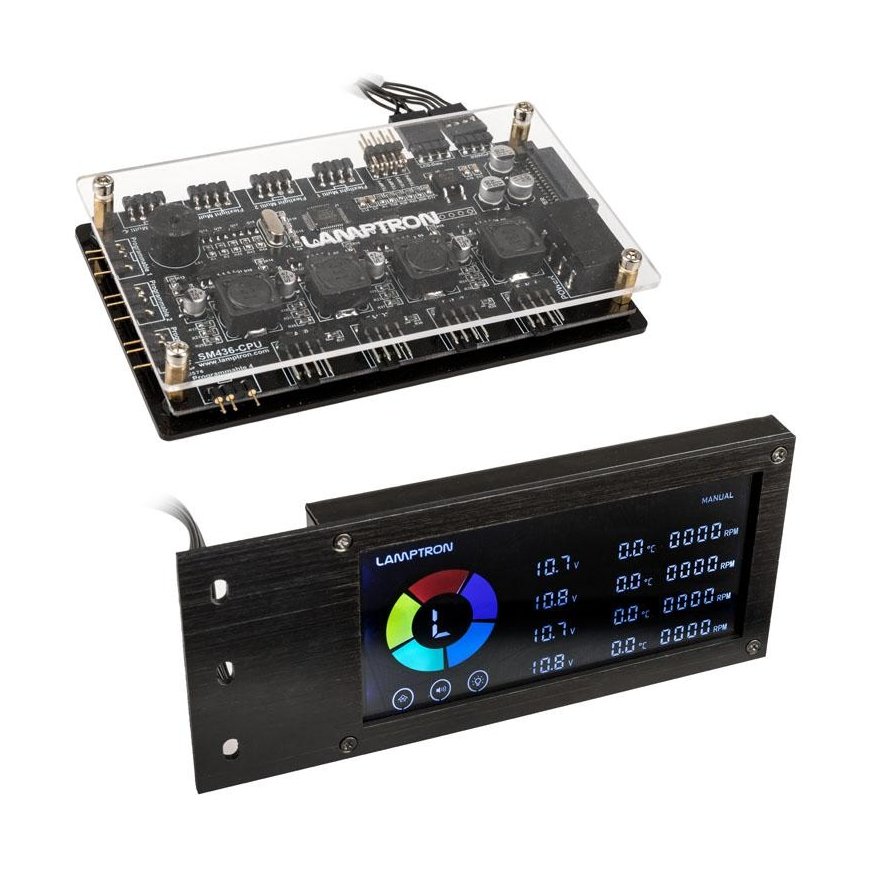

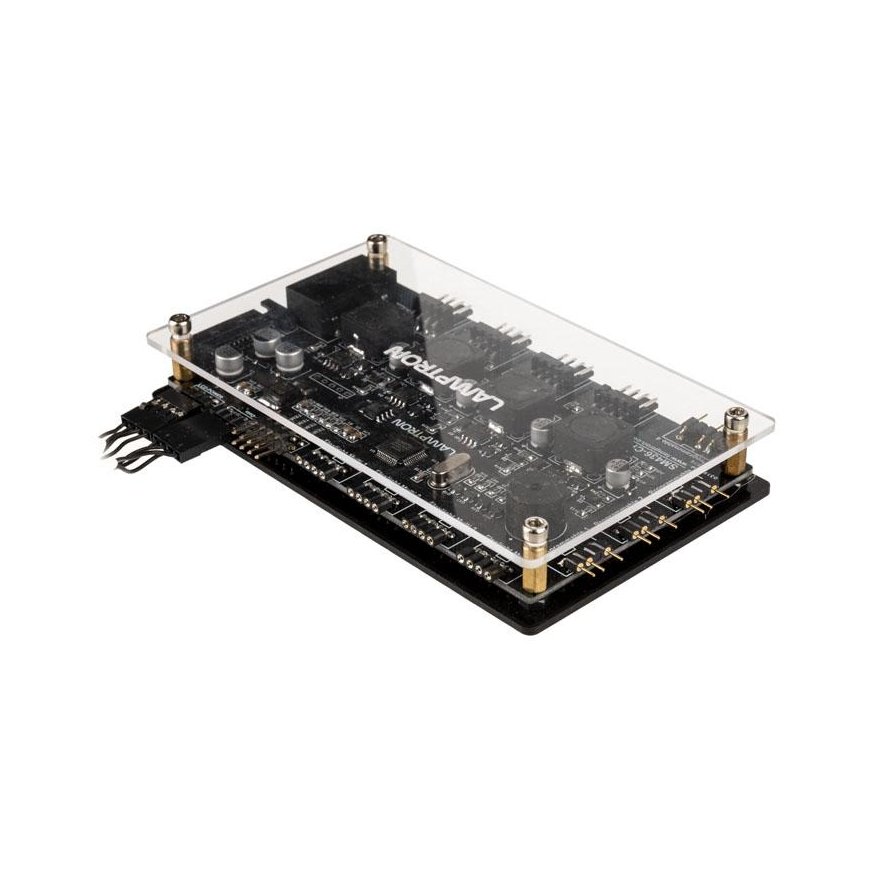

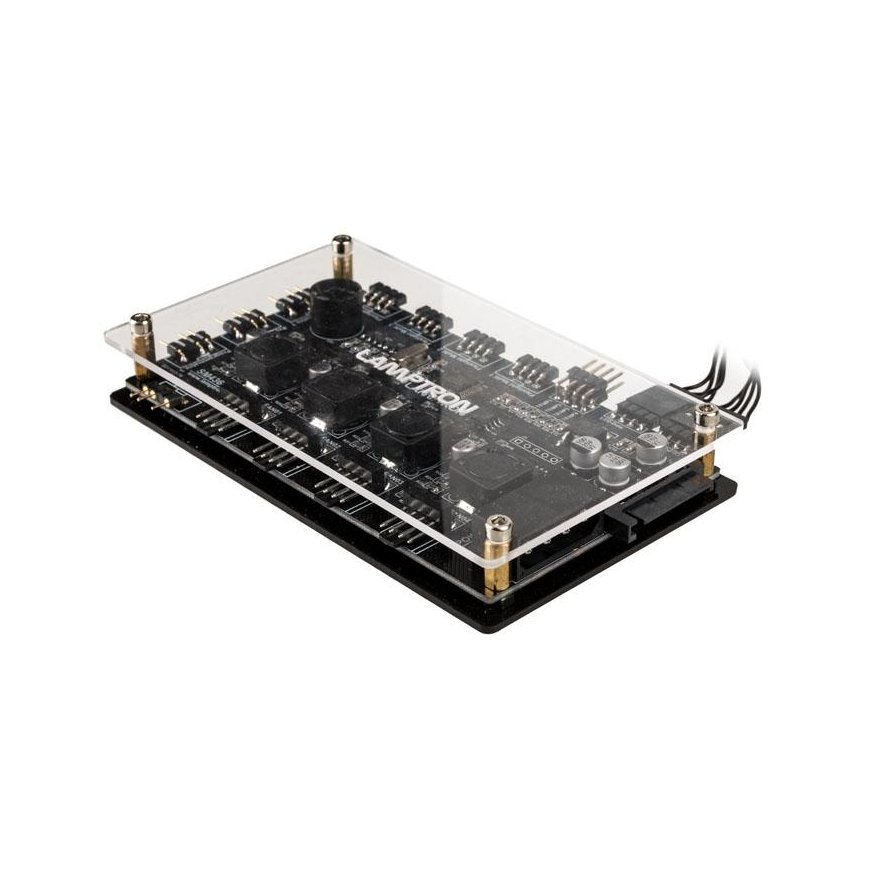

SM436 RGB PCI Fan and LED Controller - Black In the age of tempered glass, you need to adapt not only to your PC's cooling efficiency and volume expansion, but also RGB lighting that matches your hardware to your own and changing demands. The Lamptron SM436 PCI RGB Controller and Fan offers not only wide functionality but also high compatibility. Control up to four fans with or without PWM control and RGB products with or without digital RGB LEDs. A separate LCD can be attached to the PCI slot, and a wealth of information is visible through the transparent side panel of hard or acrylic glass. It is controlled by an infrared remote control. Lamptron SM436 PCI RGB Controller and Fan Features at a Glance Control board for RGB LED fan and lighting Separate LC display with temperature, voltage and speed indicators Four channels for PWM or non-PWM fans up to 36 watts per channel Four headers up to 60 RGB LEDs (12VGRB) Four headers up to 60 digitally addressable RGB LEDs (5VDG) Power via 4-pin Molex and SATA With IR remote Maximum fan and lighting control The Lamptron SM436 PCI RGB controller and fan offers almost unlimited fan and RGB lighting control. With up to 36 watts per channel, there is almost no limit. The fan controller supports both PWM and non-PWM fans. Power is supplied via a 4-pin Molex connector. A total of up to four fans can be connected to the controller board. In addition, four 4-pin RGB fans or LED strips (12VGRB) and four digitally addressable 3-pin RGB devices (5VDG) can be used. In addition, the required power supply is available via the SATA connector. In addition, the kit includes four temperature sensors that can also be connected to the board. Including LC display and infrared remote control Lighting and fan speed are controlled by the included infrared remote control. For example, fans can be quiet at 40 percent or maximum. Or leave the fan control to the controller. In addition, the lighting modes are set with the remote control. To find out how fast the fans are spinning and what voltage they're currently running on, and what the temperature is inside the case, the Lamptron still has a fancy LC display that can be adjusted. It is connected to three free PCI slots, and the output can be admired through a transparent side window. The controller board is connected to it by a cable and can be hidden somewhere in the case. Technical information: Dimensions (board): 121.5 x 21 x 72.5 mm (W x H x D) Dimensions (display): 140 x 21.5 x 60 mm (W x H x D) ) Display: 95 mm x 60 mm Compatibility: 3x PCI slots (screen) Material: aluminum Color: black Fan channels: 4 (max. 36 W per channel) Voltage: stepless 0 - 12 V Connectors: 1x 4-pin Molex 1x SATA 4x 2-pin temperature sensor RGB LED connectors: 4x 3-pin RGB (5VDG, up to 60 LEDs per channel) 4x 4-pin RGB (12VGRB, up to 60 LEDs per channel)
