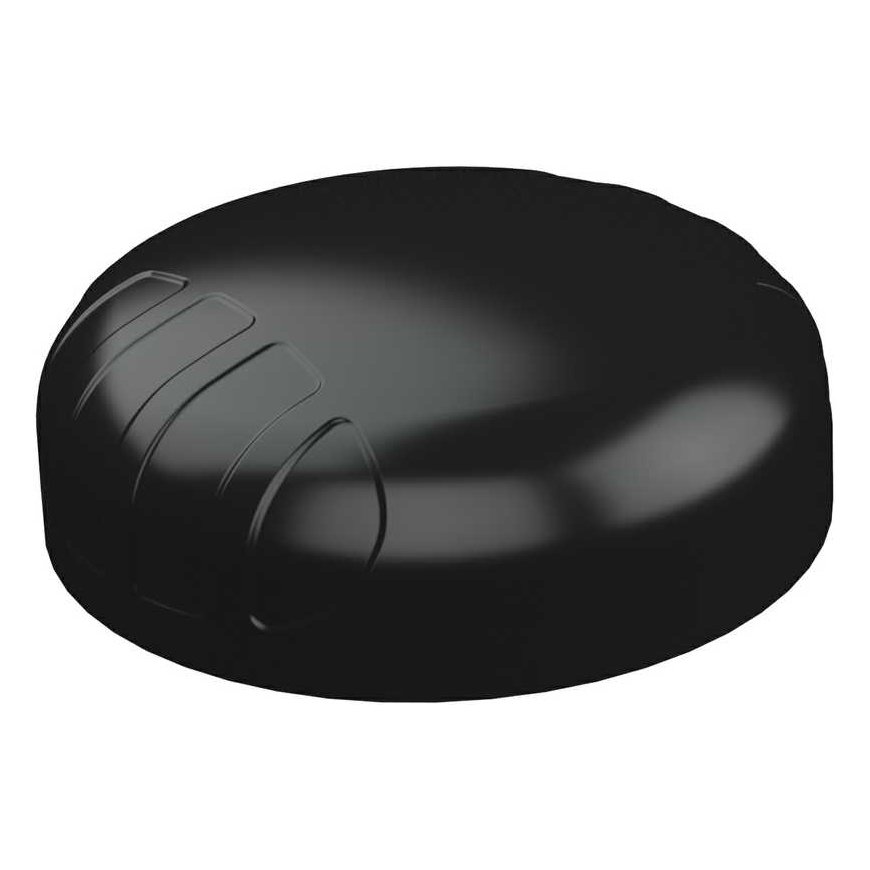

Poynting PUCK-1 6 dBi Broadband Omnidirectional Panel Antenna

Poynting's new PUCK series offers a small panel antenna for use in IoT/M2M, smart meters, smart utilities, transportation, marine and agriculture. The PUCK-1 is a SISO antenna covering the 690-3800 MHz band, which covers the most popular international LTE bands. PUCK surpasses many competitors due to the attention to design of this high-performance antenna. The radiation characteristics of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiating ability at the desired height, which is often overlooked in antennas of such small sizes. Despite its small size, this antenna provides excellent performance, especially in higher frequency bands, where performance is critical for LTE bandwidth and connection stability.

Product features

- High performance LTE
- 2G / 3G / 4G / LTE support (5G ready)
- Broadband reception - covers a wide frequency band, including the 3.5 GHz CBRS band
- Independent of ground plane
- Robust, vandal and waterproof (IP 68) housing
- Perfect for transport, marine and IoT/M2M applications
- Ultra veZAtile mounting options for easy installation

Using the antenna

- Smart tools: smart energy, gas and water metering
- Smart buildings: air conditioning control, access control, security, irrigation
- Industrial automation, robotic machines and other M2M systems
- Digital signature
- Warehouses and logistics systems
- Transportation (buses, utilities and public safety)
- Communication, telemetry and automation of mining vehicles and machines (M2M and IoT)
- Agricultural machinery
- Marine: small boats, yachts off the coast or in inland waters

Antenna performance diagrams

Voltage Ripple Ratio (VSWR)*

VSWR is a measure of the efficiency of RF energy transfer from the power source through the transmission line to the load.
In an ideal system transmitting 100% power with a VSWR of 1:1, the PUCK-1 provides excellent performance in all bands with a VSWR ≤2.5:1 above 85% of the band.

Gain in dBi

6dBi is the maximum gain on all bands from 698-960, 1710-2700 and 3400-3800 MHz
- Gain for different bands: -1dBi @ 698-960MHz
- Gain in different bands: 6 dBi at 1710-2700 MHz
- Gain in different bands: 6 dBi at 3400-3800 MHz

Radiation patterns

Presentation of broadband antenna PUCK-1 (video)

link: https://youtu.be/wQ7WTtjMNPM

Links to other videos about PUCK-1:
Unboxing - https://youtu.be/AfL5b7pRWbk
PUCK high voltage test - https://youtu.be/A-3FVcQjK-I
PUCK test in the wind tunnel - https://youtu.be/Yga3oqAGly0
Strength Test - https://youtu.be/MS_gkMZ26tE
Construction of 4x4 MIMO solutions - https://youtu.be/YsRRjBAfX4k

Lots of assembly options

Poynting's new PUCK antenna series offers easy installation with multiple mounting options. As standard, this includes:

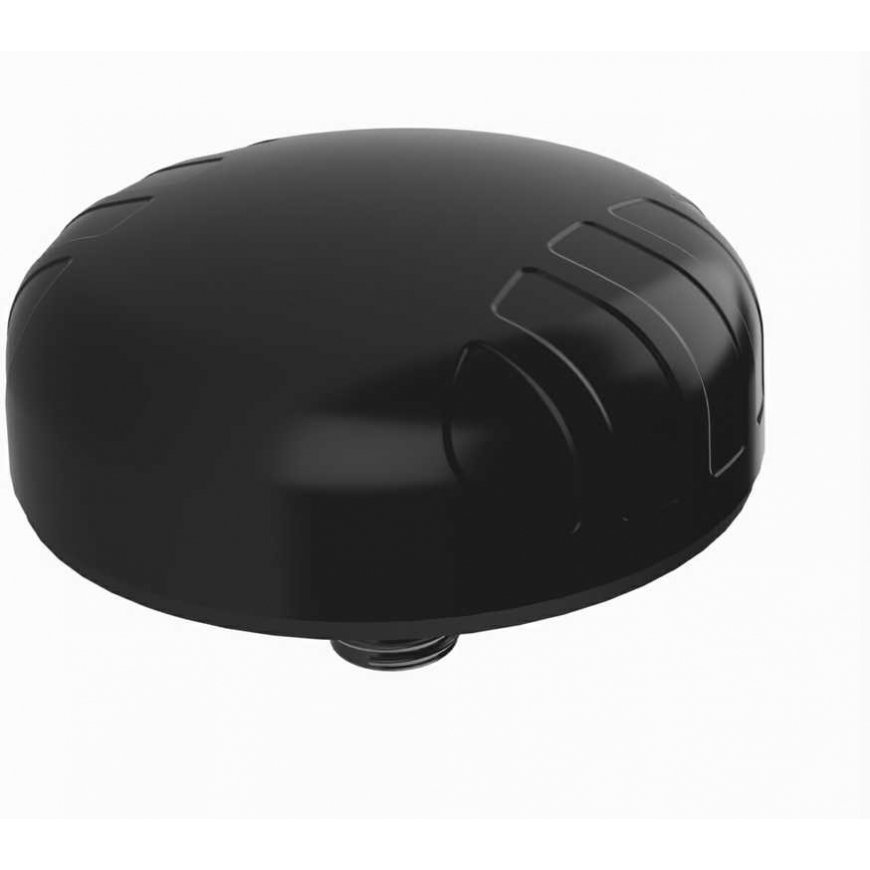

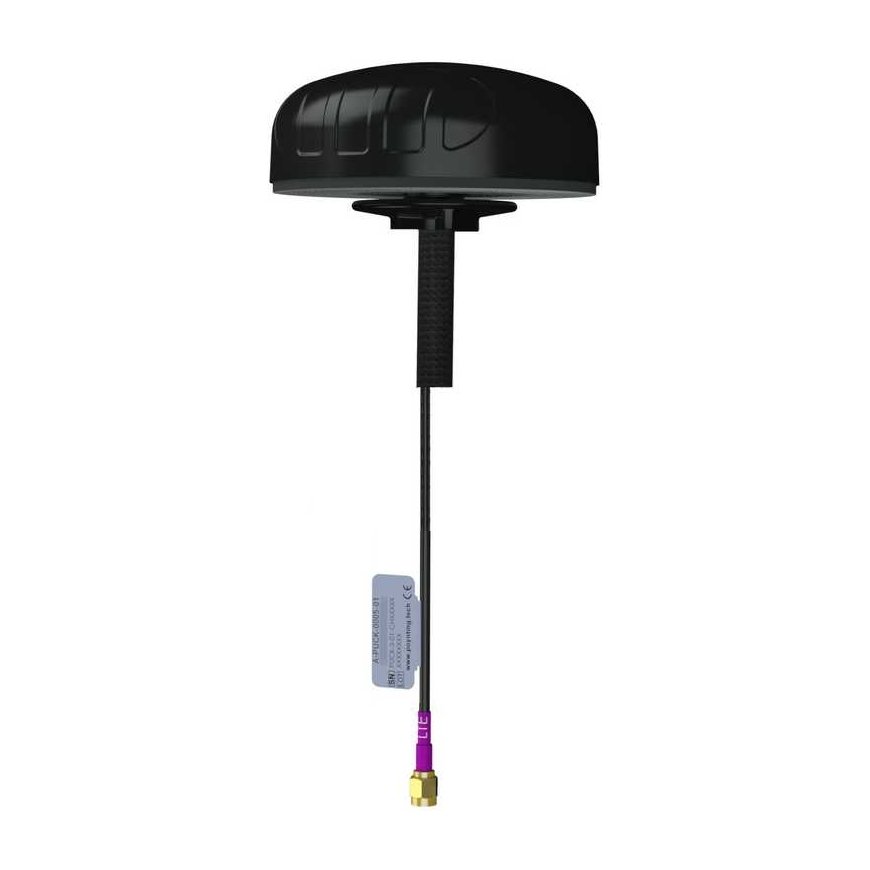

- Fixed with pin - two different lengths (40mm and 80mm) included
- Vertical pole mounting (inside and outside mounting for smaller and larger poles)
- Horizontal pole mounting (e.g. marine rails)

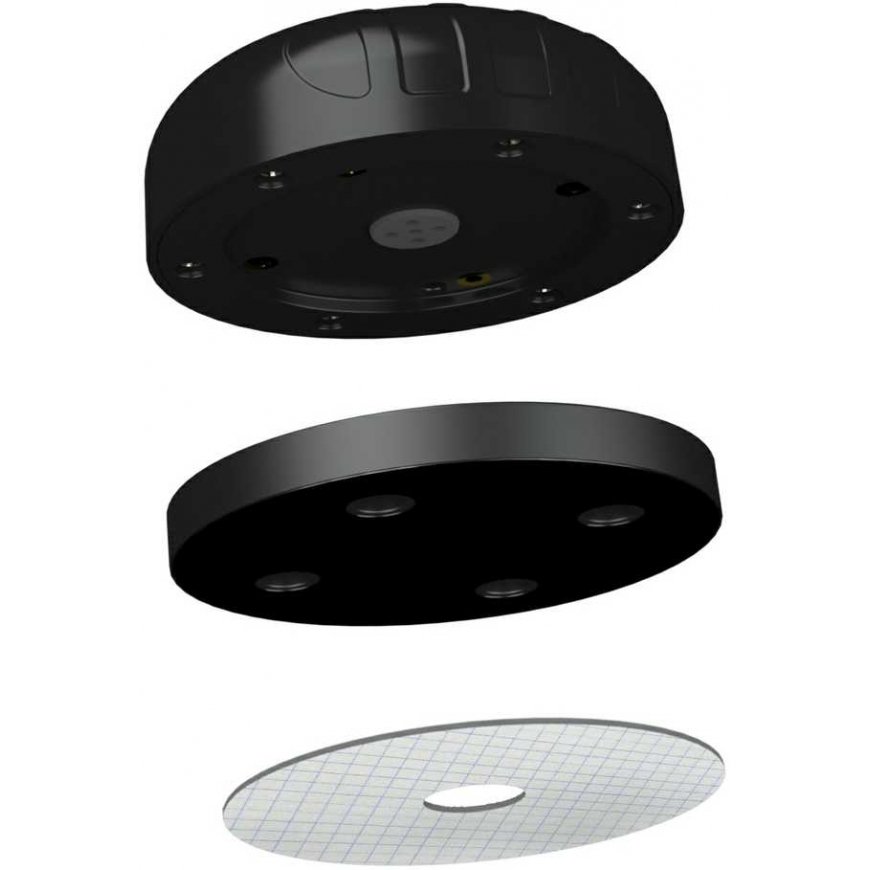

- Magnetic fastening
- Surface mounting (double-sided tape)

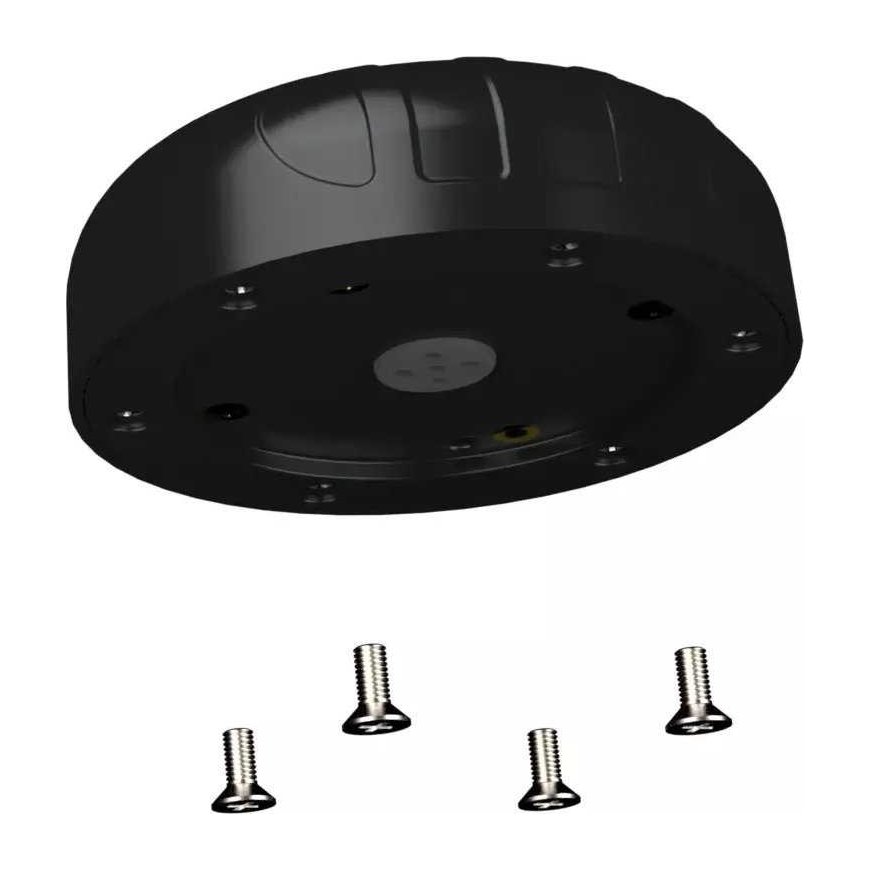

- Wall mounting

Technical highlights:

Technical specifications

Click here to view the complete antenna technical documentation.
