BFT THEA A15 O.PF UNI fotoelementi (operatoriem, kas nav BFT)
2466850 P111714
8027908477392
Piegāde 8-12 d.d.
Viss par produktu
Purpose:
Surface mount, wired photo sensors for use with non-BFT motor brands.

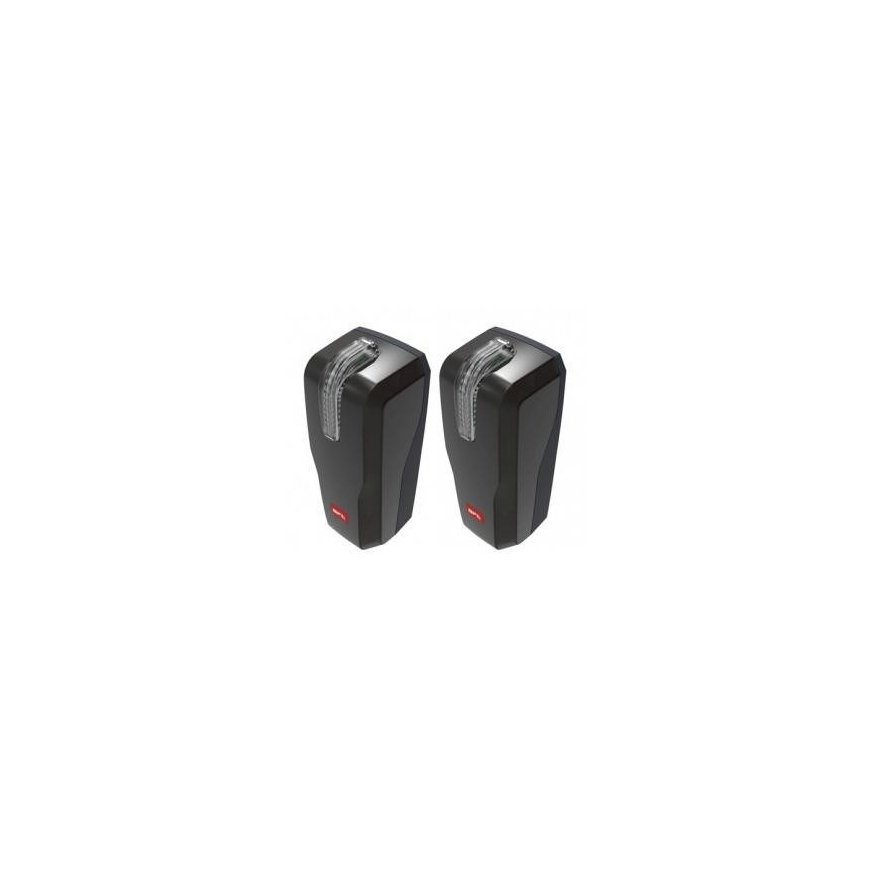

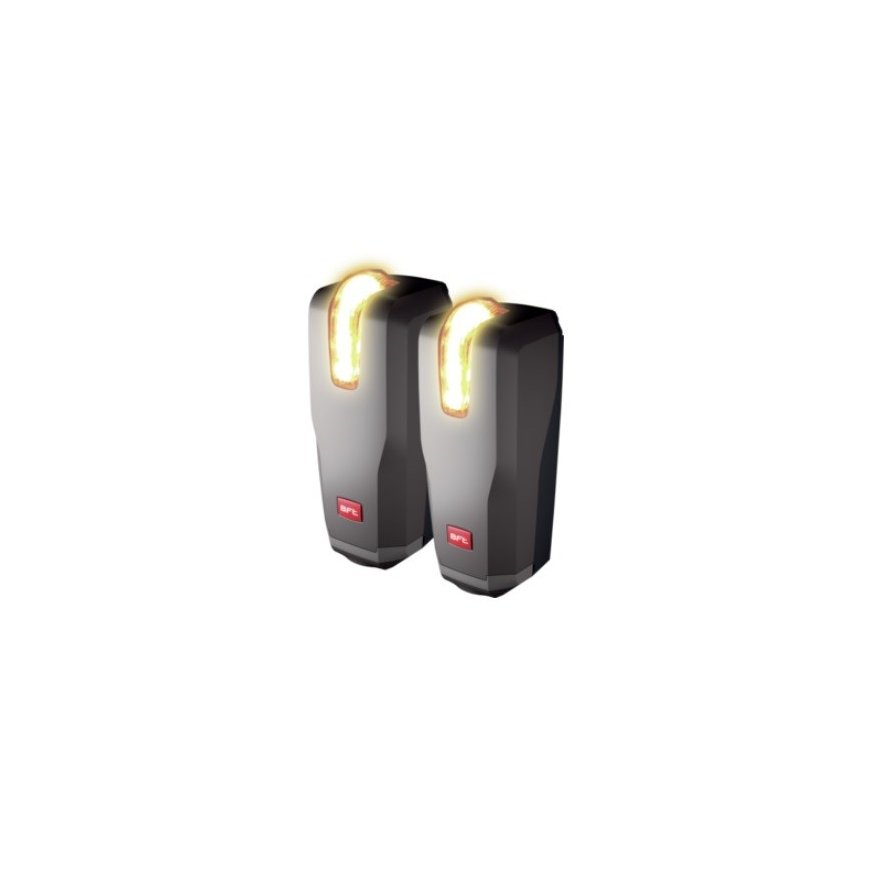

BFT Thea A15 O.PF "UNI" version is a pair of adjustable photodetectors with integrated LED technology lighting, suitable for use with automation systems of other brands, except BFT.
These photo sensors ensure a working distance of up to 30 meters and are powered by 24V AC/DC voltage.
The beam is adjustable horizontally at an angle of 40 degrees and vertically at an angle of 10 degrees.
They have a synchronized infrared signal that prevents accidental glare.
The set includes:
BFT Thea A15 O.PF pair of photodetectors (transmitter + receiver)
Technical specifications:
| Model | 2600815 |
| Complete set | BFT Thea A15 O.PF pair of photosensors (transmitter + receiver) |
| Connection | Wired |
| The angle of view of the photosensor | 40.00° |
| Range | 30.00 |
