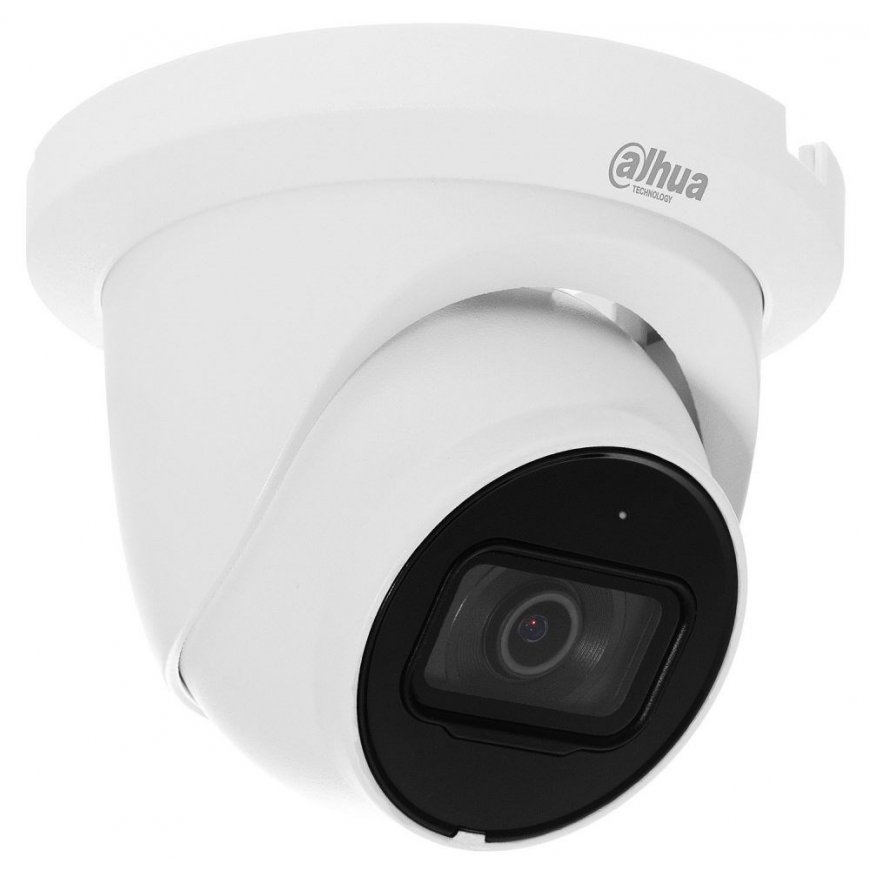

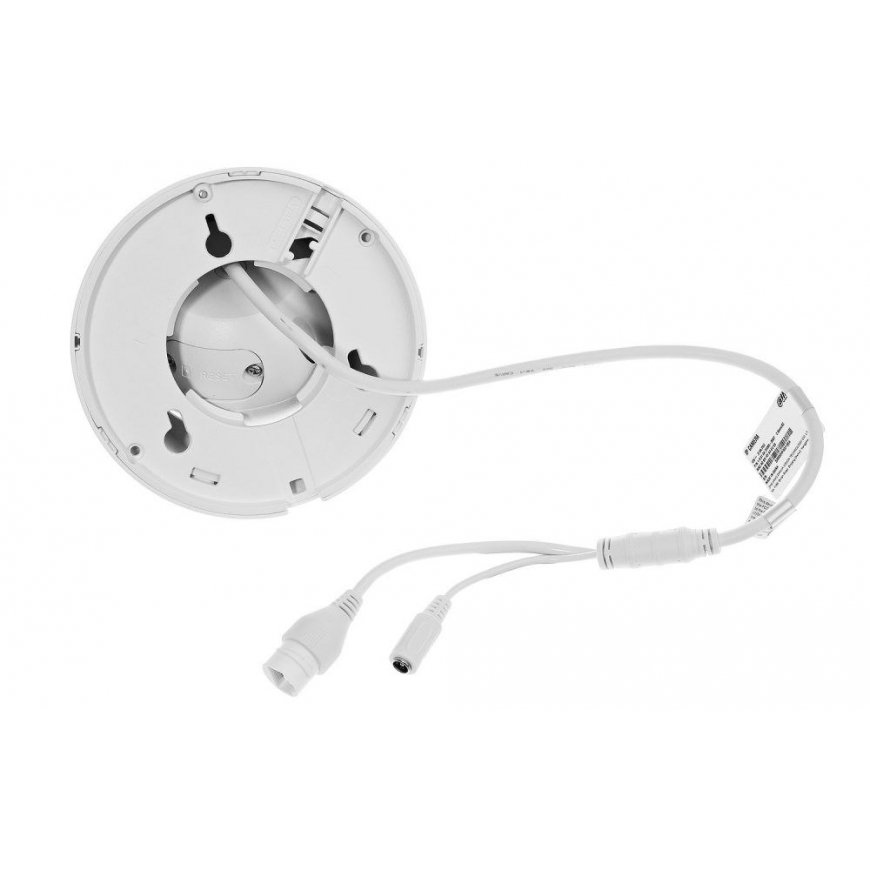

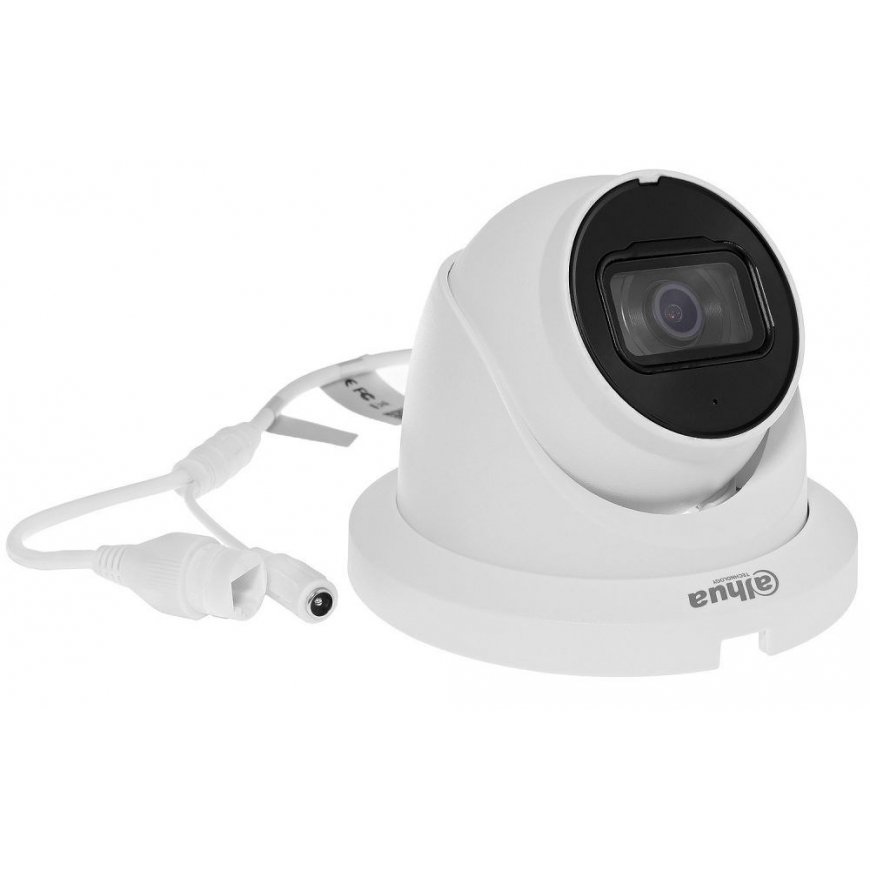

IP KAMERA DAHUA IPC-HDW2241TM-S-0280B

Viss par produktu

IP camera dome. 2MP STARLIGT, IR illumination up to 30m, 1/2.8” 2.8mm 107°, WDR, IVS, IP67, H.265,

Short description:

Dome IP camera 2 megapixels with integrated microphone, Day/Night with IR LED illumination up to 30m., 1/2.8" inch 2 Megapixel STARLIGHT CMOS sensor, 2MP(1920×1080) 1~25fps. Lens: 2.8mm viewing angle 107°, BLC / HLC / WDR 120 dB, 3D-NR: noise reduction technology, corridor mode; SMD Plus, ROI, H.264/ H.265, Smart H.264+/ H.265+; IVS, integrated SD memory port max 256GB, PoE, IP67 moisture resistant, PoE. Supports ONVIF (Profile S/Profile T); CGI; P2P; Milestone standard. Model: HDW2241TM-S, 2.8mm

Brief technical characteristics:

• 2.0 megapixel Day/Night dome IP camera with IR LED lighting.
• IVS functions: crossing the line, penetrating the perimeter.
• 1/2.8” inch 2 MP STARLIGHT CMOS sensor.
• Effective pixels PAL: 1920(H) x1080(V).
• 2.8mm fixed lens (viewing angle of lens about 107°).
• Integrated microphone.
• Audio compression: G.711a; G.711Mu; G.726; PCM.
• Video compression H.264H; H.265; H.264; H.264B; MJPEG (Sub Stream); Smart H.265+; Smart H.264+.
• Operating system LINUX.
• Remote control and live monitoring via Ethernet (WEB): IE, Chrome, Firefox.
• Free software for camera control (DSS/PSS/SMART PSS), video viewing and archiving via computer network or Internet.
• A free program that allows the user to monitor and view recordings of cameras from different objects, the program allows the image to be saved to the computer.
• The free program for monitoring through a mobile phone or through a handheld computer (DMSS mobile phone surveillance software) is suitable for phones: SYMBIAN, IPHONE, WINDOWS MOBILE, WINDOWS PHONE 8, KINDLE FIRE, BLACKBERY, ANDROID, IPAD, GALAXY TAB, etc..
• The IP camera can be used with software from other companies (VMS Partners): ALNET SYSTEMS, AXXON, DiGiFORT, Exacq Technologies, GeoVision, Lenel, Milestone, NETvision, NUUO, OnSSI, QNAP, Surveon, UNISIGHT, Aimetis, Cathexis solutions, GEUTEBRUCK, CANON, KSENOS, Kentima Solutions AB, Softguard Tech, Innodep Inc., LuxRiot A&H Software House, Inc., Video Insight, Mirasys Ltd., SEEnergy Corp., Synology, Wavestore and others.
• Video resolution options available: 1080P(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576 / 704×480) / VGA(640×480) / CIF(352× 288 / 352×240).
• Compression rate: Main stream: 1080P(1920 × 1080)@(1~25fps); additional stream: (704 × 576)@(1~25 fps) / (704 × 480)@(1~30 fps).
• Bitrate: H.264: 32 Kbps - 6144 Kbps; H.265: 12 Kbps to 6144 Kbps.
• Y/N: switches from color operation to black and white at a certain light intensity - mechanical Day/Night function.
• Min. illumination: 0.002 Lux @F1.6.
• 1 pc. 3rd generation high power IR LED.
• Illumination distance 30m.
• 3D-NR: noise reduction technology.
• S/N ratio >56dB.
• Electronic Shutter: Auto/Manual, 1/3s - 1/100000s.
• White balance: Auto/Manual, BLC/HLC/WDR 120dB.
• Video format: PAL.
• Corridor mode.
• 10/100 Mb/s network socket (Ethernet RJ-45).
• Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; ONVIF (Profile S/Profile T); CGI; P2P; Milestone.
• Recording: to Dahua Cloud, FTP, SFTP servers.
• Remote control: Monitoring, EPTZ zoom, system settings, File download, Preview, software update.
• Unlimited number of users (possibility to grant different rights to each user).
• Maximum user login at the same time: 6 (total traffic 36M).
• Internal memory: SD memory port max 256GB.
• 3-axis mechanism for camera adjustment (Pan: 0°~360° Tilt: 0°~78° Rotation: 0°~360°).
• Operating temperature: -40°C~+60°C, 95% RH.
• Moisture resistant IP67.
• Power supply: DC 12V, PoE (802.3af).
• Consumption: 2.1W (12V DC); 2.4W (PoE); Max. 4.2W (12V DC); 5.1W (PoE).
• Dimensions: 99.1 mm × 121.9 mm.
• Weight: 480g.

Compatible mounts:
• PFA109.
• PFA130-E.
• PFB205W-E.
• PFA152-E.
• PFB220C.
