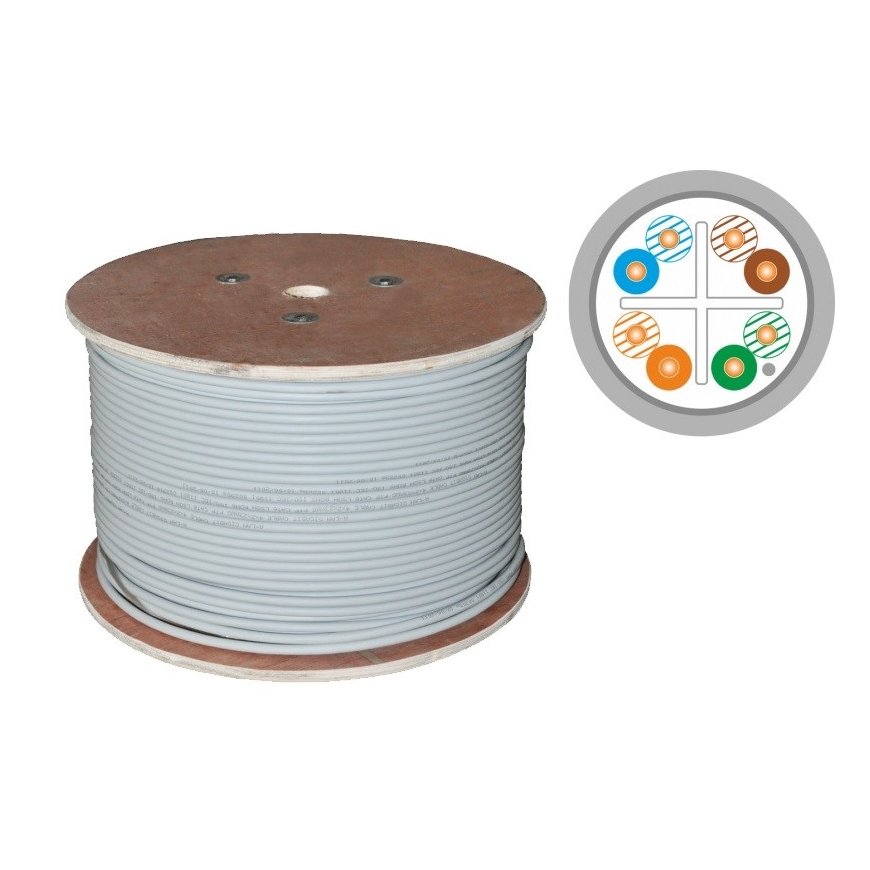

Q-LANTEC FTP cat.6 PVC Eca tīkla kabelis 305m
199,00 €
Ikm. maksa no 6.02 €
2440771 KIF6PVC305Q
5904204402583
Piegāde 4-6 d.d. Latvijas teritorijā +1 diena
Šī prece Jūs ieinteresēja
Shielded F/UTP (FTP) cables are designed for internal horizontal and vertical installations in telecommunications networks. Intended for use in facilities subject to fire regulations for construction products.
The cables come with a 10-year warranty.
| CONSTRUCTION AND ELECTRICAL PARAMETERS | |
|---|---|
| Category | 6 |
| Class | E (250 MHz standard) |
| AWG gauge | 4x2x24AWG |
| Veins | copper single wire (100% Cu) |
| Insulation | polyethylene |
| CPR fire classification (Euroclass) | Eka |
| Center | 4 pairs twisted on a cross-shaped core insert |
| Screen | Polyester foil, coated with an aluminum layer, metal layer inside, under the screen – grounding wire made of tinned copper wire, with a diameter of min. 0.4 mm |
| Housing | polyvinyl with increased oxygen index (FRPVC) |
| PoE | 802.3 at |
| Color | light gray |
| ELECTRICAL PROPERTIES at 20 °C | |
|---|---|
| DC resistance loop | ≤ 95 Ω/km |
| Variable resistance | ≤ 2% |
| Insulation resistance (500 V) | ≥ 5000 MΩ *km |
| Capacitive resistance at 800 Hz nom. 48 nF/km | |
|---|---|
| Variable passive capacitive reactance | ≤ 1500 pF/km |
| Characteristic apparent resistance (1-100 MHz) | (100 ± 15) ohms |
| Nominal velocity of propagation (NVP) | 69% |
| Delayed spread | Rated current ≤ 535 ns/100 m |
| Delay angle | Nominal ≤ 20 ns/100 m |
| DC installation tester, 1 min. (core) | 1000V |
| MECHANICAL PROPERTIES | |
|---|---|
| Bending radius | 4 x ø outside |
| Max. pulling force | 80 north |
| Temperature range during use | From -30°C to +50°C |
| Temperature range during installation | From 0°C to +50°C |
| Outer diameter | 7.3mm |
| Weight kg/km | 55 kg |
| Packaging | reel (305 m) |
