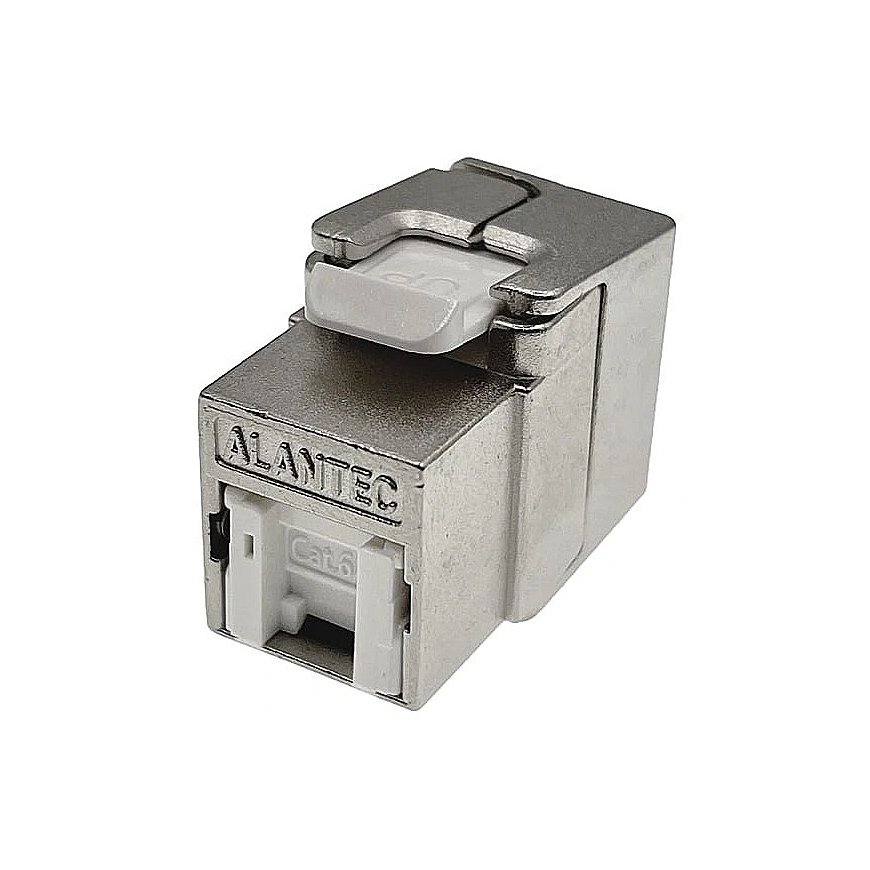

RJ45 cat.6A PoE+ STP keystone module

Tool-less, shielded (STP) transmission keystone sockets by ALANTEC are used for the construction of both subscriber points and patch panels in indoor installations of horizontal and vertical data communication networks at risk of electromagnetic interference.

The tool-free solution allows the connectors of the entire transmission path to be assembled without the need for special tools. The installation process is fast and comfortable (according to our experience, installation of such sockets takes 1/3 of the time of a standard tool-based system).

At the installer's preference, the sockets can also be terminated using the classic method, with an impact tool.

Thanks to the use of special, universal fasteners, the sockets can be installed in any elements, such as empty patch panels, wall and floor boxes, etc.

IMPORTANT CONSTRUCTUAL BENEFIT: Plugging in the RJ11, RJ12 telephone plugs does not damage the socket, the special design means that the pins of the connector are not deformed.

Tested at the independent testing laboratory INTERTEK.

General:

• Category: 6A
• Class: EA (500MHz standard) with extended characteristics up to 650 MHz / 10 Gbps
• Screen: yes
• Type: toolless

Body:

• Material: Zinc casting, meeting EMC requirements in accordance with EN 55022

Socket:

• Durability to standards: > 750 cycles
• Durability according to tests: > 1000 cycles
• Contact material: phosphor bronze
• Contact coating: 50 inch (1.27 m) gold layer on 40 inch nickel layer
• Contact force: 100 g per contact
• Disconnection force: 50N for 60s

Slotted connector:

• Sequence: 568A/B
• Blade material: phosphor bronze with 100 inch tin layer
• Accepts wire/line conductors: 22-26AWG / guaranteed 20 retermination cycles
• Body: flame resistant plastic, UL 94 V-0 compliant

PCB board:

• Material: 1.6 mm thick FR4 laminate

Electrical parameters:

• Max. current value: 1,5 A
• Insulation resistance: 500 M @ 100 Vdc
• Voltage resistance: 1000 Vac RMS @60Hz for 60s
• Contact resistance: 20 m
• IDC knife resistance: 2.5 m

PoE power supply:

• Type: PoE, PoE+ / 802.3 at type 2

Temperature range:

• Storage: -40oC to +70oC
• Operation: -10oC to +60oC

Humidity:

• Maximum: 93%
