Rebel RB-55 Universal Multimeter
2363737 MIE-RB-55
5901890059022
Piegāde 9-13 d.d.
Viss par produktu

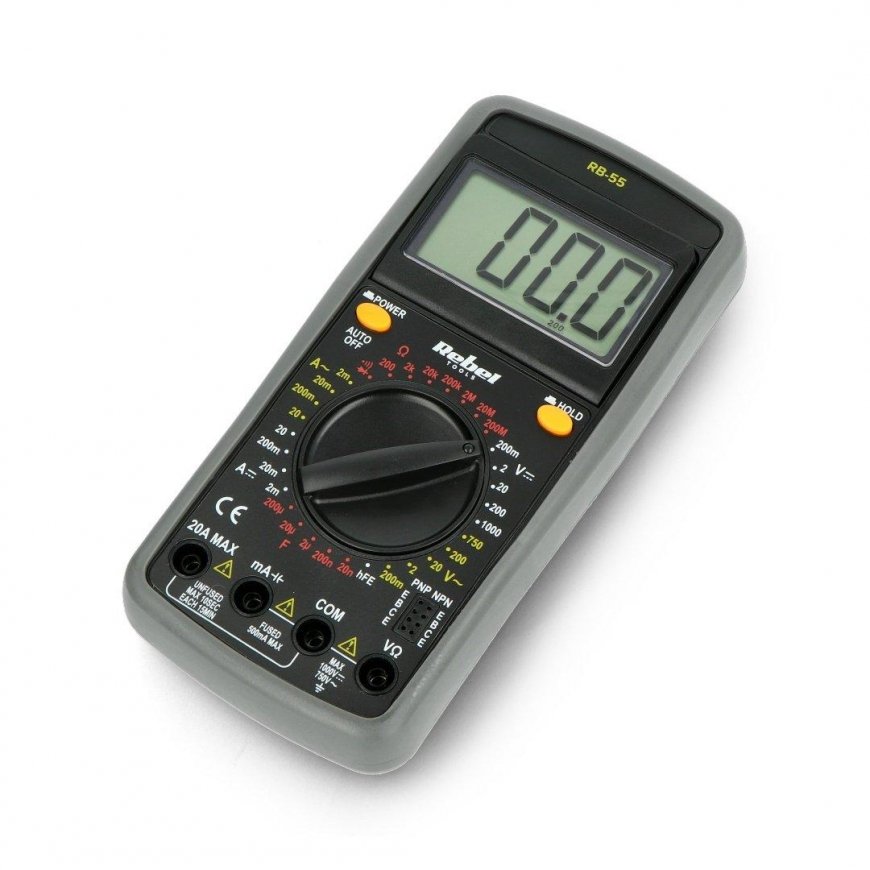

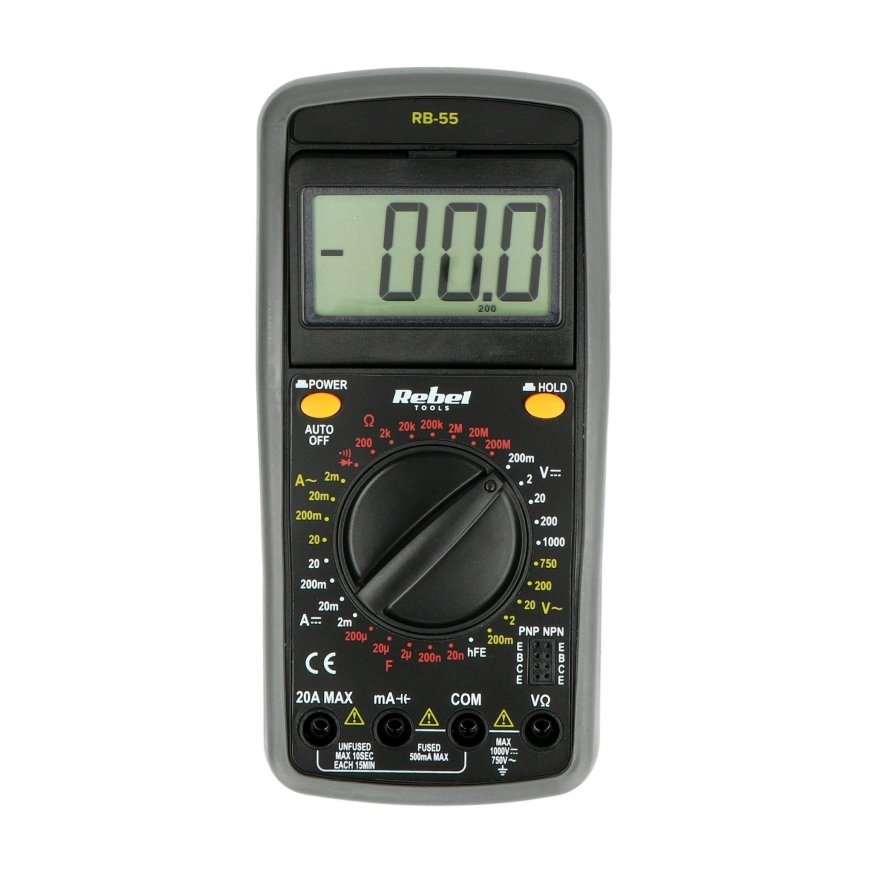

The Rebel RB-55 multimeter allows you to measure: AC and DC voltage, AC and DC current, resistance and capacitance. It also has circuit continuity and diode tester functions. Measuring ranges are set manually using a knob. In addition, the meter has two physical buttons, one is responsible for turning the power on and off, the other is used to start the data hold function, which allows you to stop the displayed measurement. The RB-55 can also test hFE transistors using a special connector designed for these measurements.
Specification:
- Manual change of measurement ranges

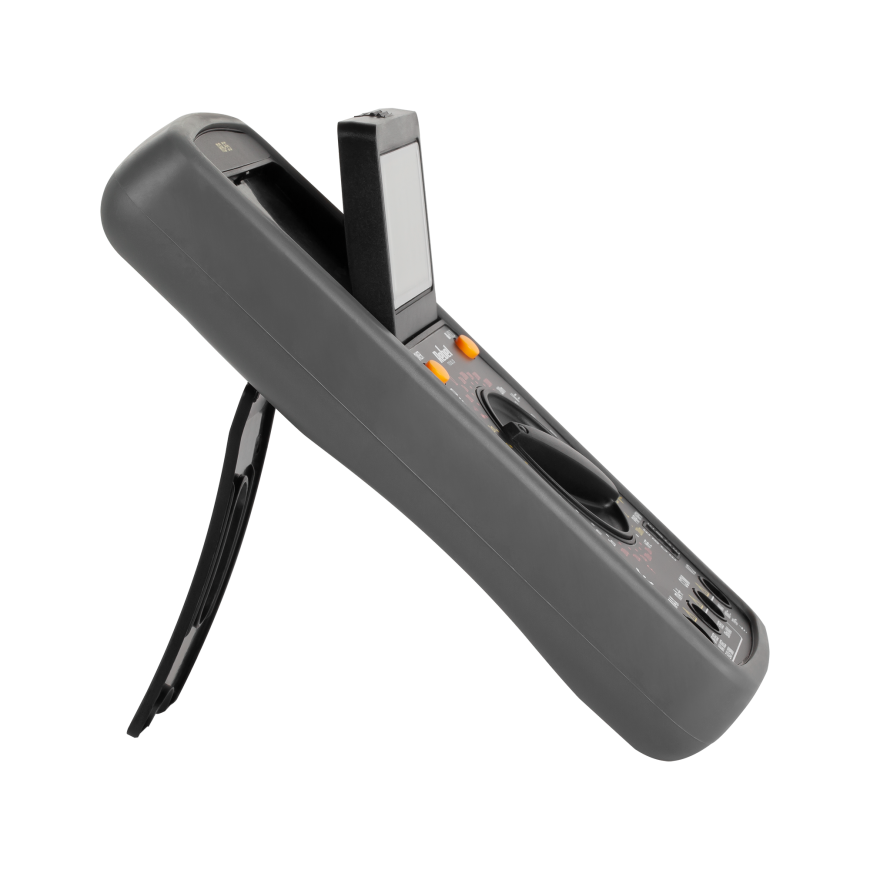

- Folding stand
- Freezes the last reading
- Low battery indicator
- Polarization: automatic
- Sampling rate: 2 times per second
- Maximum reading: 1999
- Screen size: 60x31mm
- Operating temperature: 0°C ~ 40° when humidity <80%
- Storage temperature: -10° ~ 50°C when humidity <85%
- Power supply: 9V battery
- Dimensions: 190x90x31mm
- Weight: 272g
- In the set: meter, measuring cables, instructions
MEASUREMENT RANGES:
- DC voltage: 200mV, 2V, 20V, 200V, 1000V
- AC voltage: 200mV, 2V, 20V, 200V, 750V
- Direct current: 2 mA, 20 mA, 200 mA, 20 A
- AC current: 2mA, 20mA, 200mA, 20A
- Resistance: 200 ohms, 2 kOhm, 20 kOhm, 200 kOhm, 2 MOhm, 20 MOhm, 200 MOhm
- Capacitance: 20 nF, 200 nF, 2 µF, 20 µF, 200 µF
- Diode test
- Testing of HFE transistors
- Continuity check
