Camera IP Dahua IPC-HFW1230S-0360B-S5 1080p 3.6 mm

Standard

TCP/IP

Sensor

1/2.8 " Progressive Scan CMOS

Sensor size

2.1 Mpx

Scanning system

Progressive

Resolution

1920 x 1080 - 1080p
1280 x 960 - 1.3 Mpx
1280 x 720 - 720p

Lens

3.6 mm

Viewing angle

84 ° (manufacturer's data)

IR range

30 years

Image compression method

H.265+ / H.265 / H.264+ / H.264 / MJPEG

The data transfer rate of the main stream

25 fps @ 1080p

Network interface

10/100 Base-T (RJ-45)

Network protocols

IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast

WEB server

integrated

Maximum number of online users

6

ONVIF

19.12

Access via mobile phone

Port: 37777 or Cloud Access (P2P)
Android: Free DMSS app
iOS (iPhone): Free DMSS app

Default IP address

192.168.1.108

ONVIF port

80

Selected features

D-WDR - wide dynamic range lighting
3D-DNR - digital image noise reduction
ROI - improvement of selected parts of the image
BLC - backlight compensation
HLC - High Luminance Compensation (Spot Light)
ICR - Mechanical infrared filter
AGC - automatic video gain adjustment
Automatic white balance
A mirror is a reflection of an image
Configurable privacy zones
Motion detection

feed

PoE (802.3af),
12 V DC / 360 mA

Energy consumption

≤ 4.3W @ 12V DC
≤ 5.5W @ PoE

Body

Color

White

security class

IP67

Operating temperature

-40 °C ... 60 °C

Weight

0.4 kg

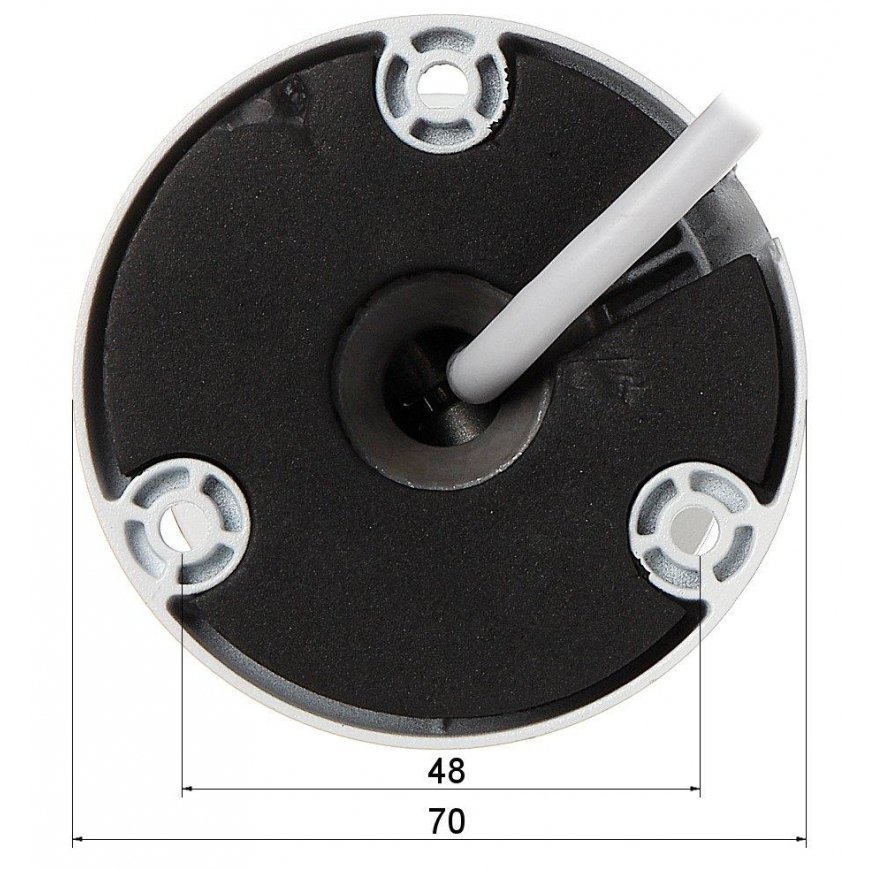

Dimensions

Ø 70 x 165 mm
