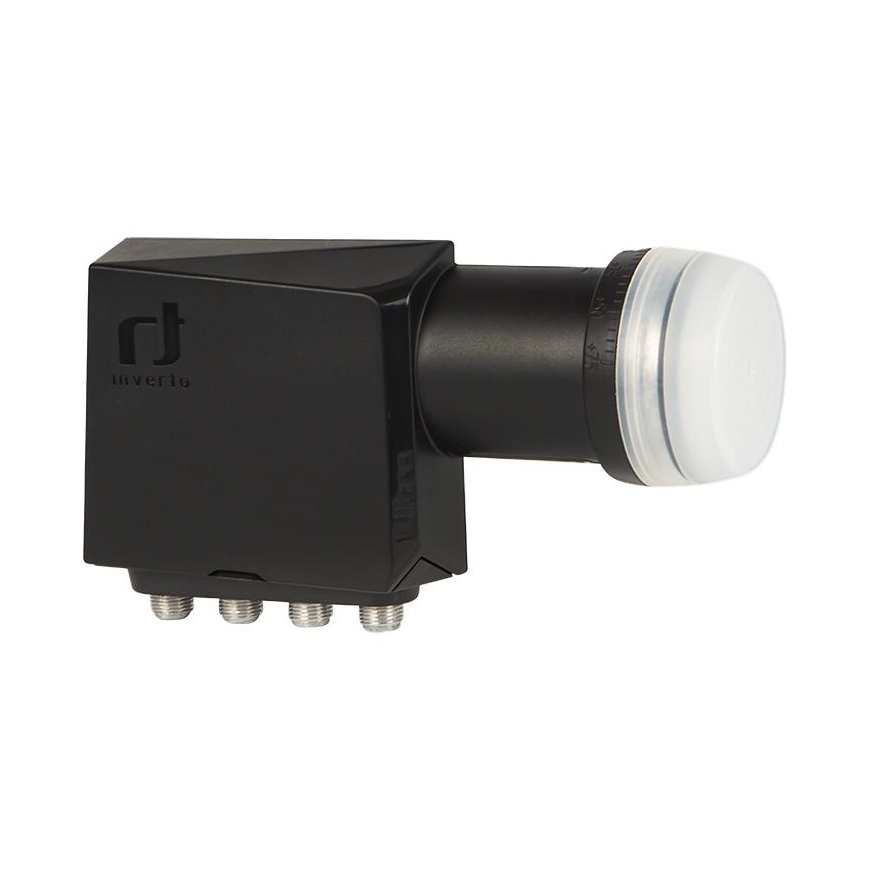

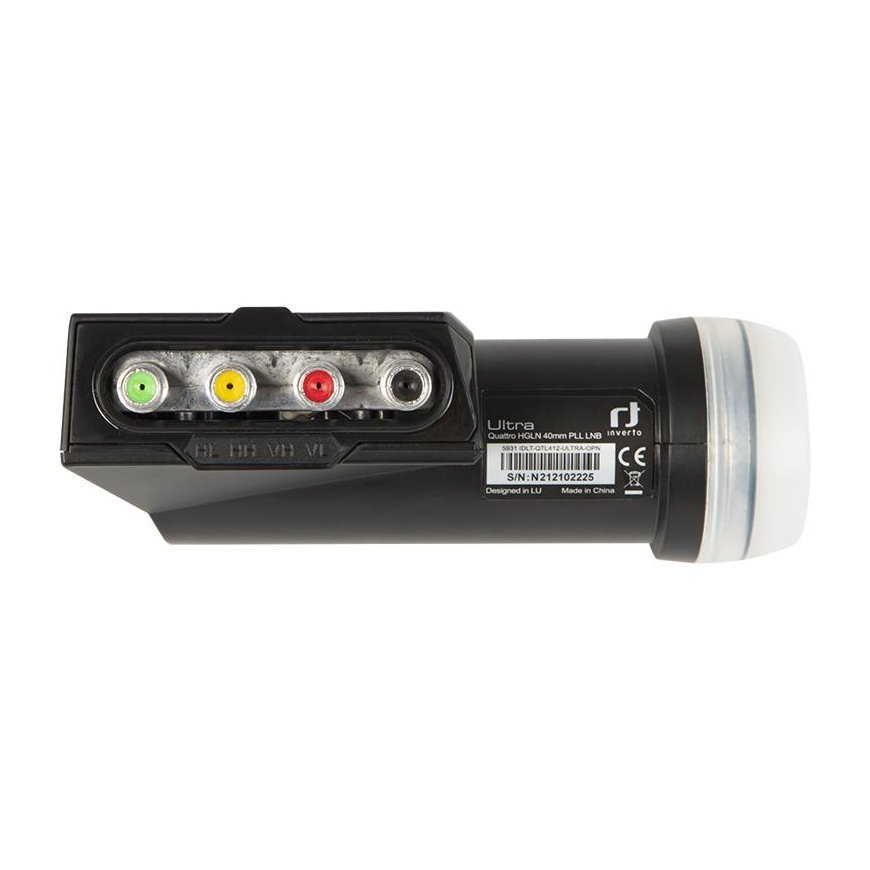

Blow SAT INVERTO QUATTRO Black ULTR

Viss par produktu

Thanks to its innovative design and superior components, the converter provides higher conversion gain with the lowest noise figure and best phase noise performance, while allowing better interference control, which is a huge leap in overall acceptance compared to standard converters. The converter allows you to receive signals from one satellite and distribute it via multi-switch to many decoders in HD quality.

Characteristics:
- Low phase noise compatible with DVB-S2 (HDTV)

- High cross polarity

- More conversion profit

- Maximum reliability

Specification:

- Low Band Frequency Range - Input: 10.7-11.7 GHz
- Low band frequency range - output: 950-1950 MHz
- Lower oscillator frequency: 9.75 GHz
- High Band Frequency Range - Input: 11.7-12.75 GHz
- High band frequency range - output: 1100~2150MHz
- Upper oscillator frequency: 10.6 GHz
- Self-noise: 0.2 dB typ. (max. 0.7dB)
- Initial accuracy: +/-1.0 MHz
- Oscillator temperature offset: +/-3.0 MHz
- Phase noise: -90dBc/Hz
- Gain: 60dB
- VSWR: 2.0:1
- Current consumption: max. 200 mA (11 V DC - 2 V DC)
- Working temperature: -30°~+60°C
- Weight: 344g
