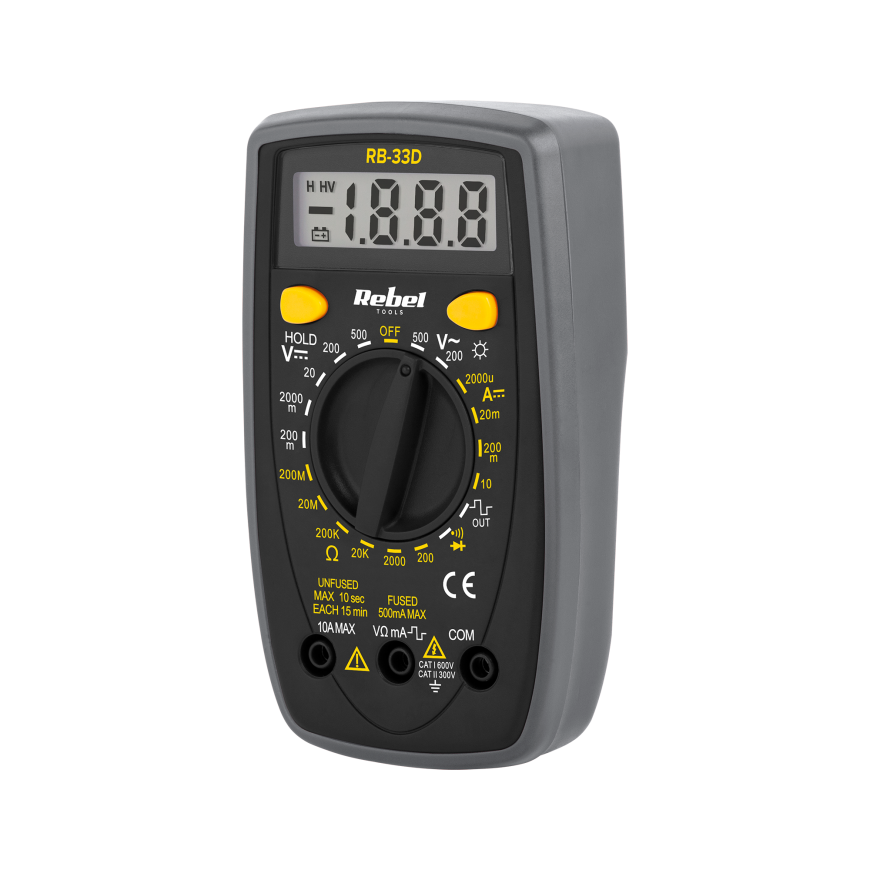

Universal multimeter REBEL RB-33D
18.59 €
2175490 MIE-RB-33D
5901890059107
Piegāde 11-16 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
A simple all-purpose gauge for basic measurements. It allows you to measure: DC voltage, AC voltage and resistance. The unit also has continuity and diode tester functions. The meter also has an additional connector that serves as a generator output with a frequency of 50 Hz, an amplitude of 5V, and a resistance of 50 kΩ. The meter's measurement ranges are set manually using the knob located in the center of the multimeter.
Specification:
- Illuminated screen
- Manual change of measurement ranges

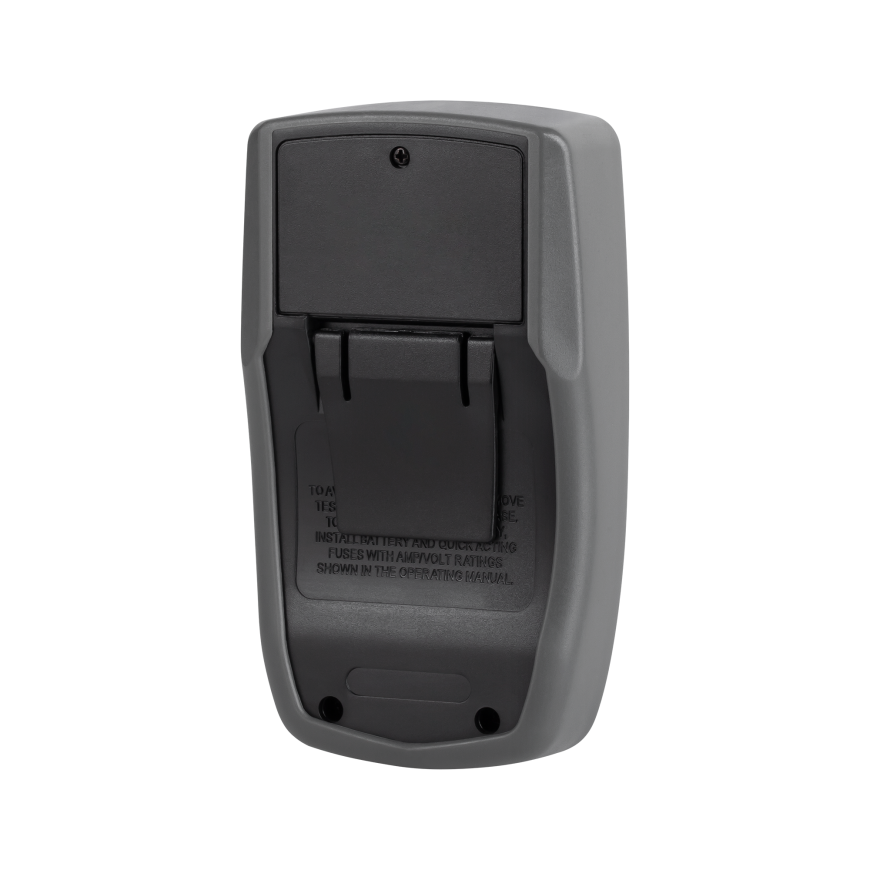

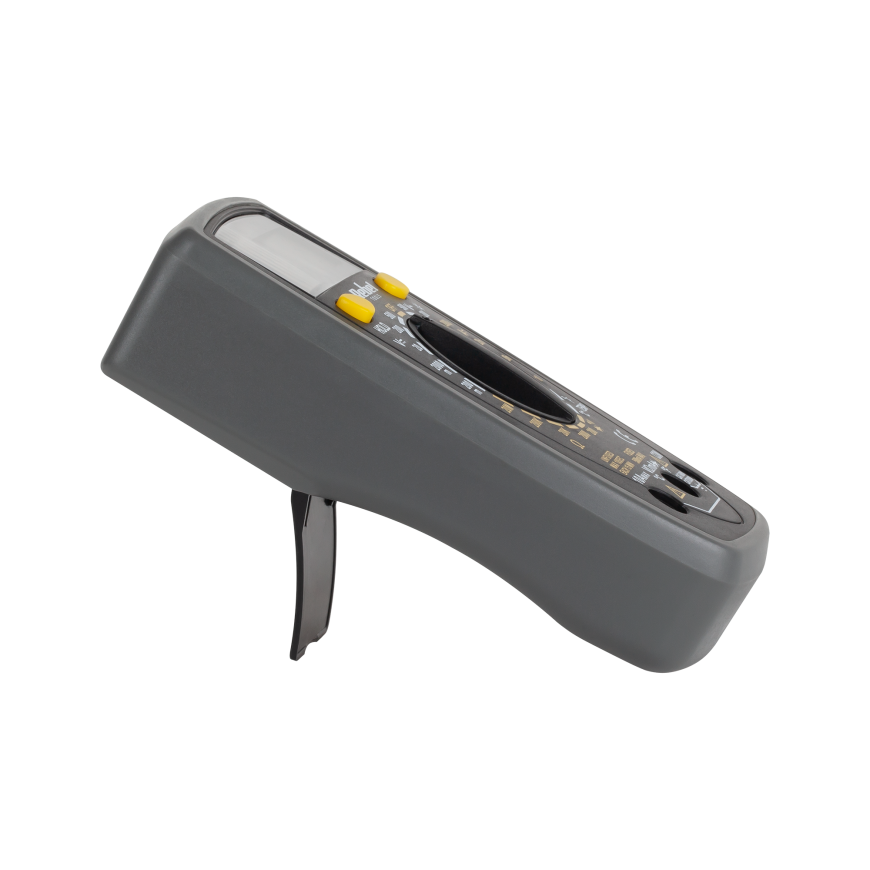

- Folding stand
- Freezes the last reading
- Low battery indicator
- Polarization: automatic
- Sampling rate: 2 times per second
- Maximum reading: 1999
- Screen size: 47x15mm
- Operating temperature: 0°C ~ 40° when humidity <80%
- Storage temperature: -10° ~ 50°C when humidity <85%
- Power supply: 9V battery
- Dimensions: 133x75x37mm
- Weight: 166g

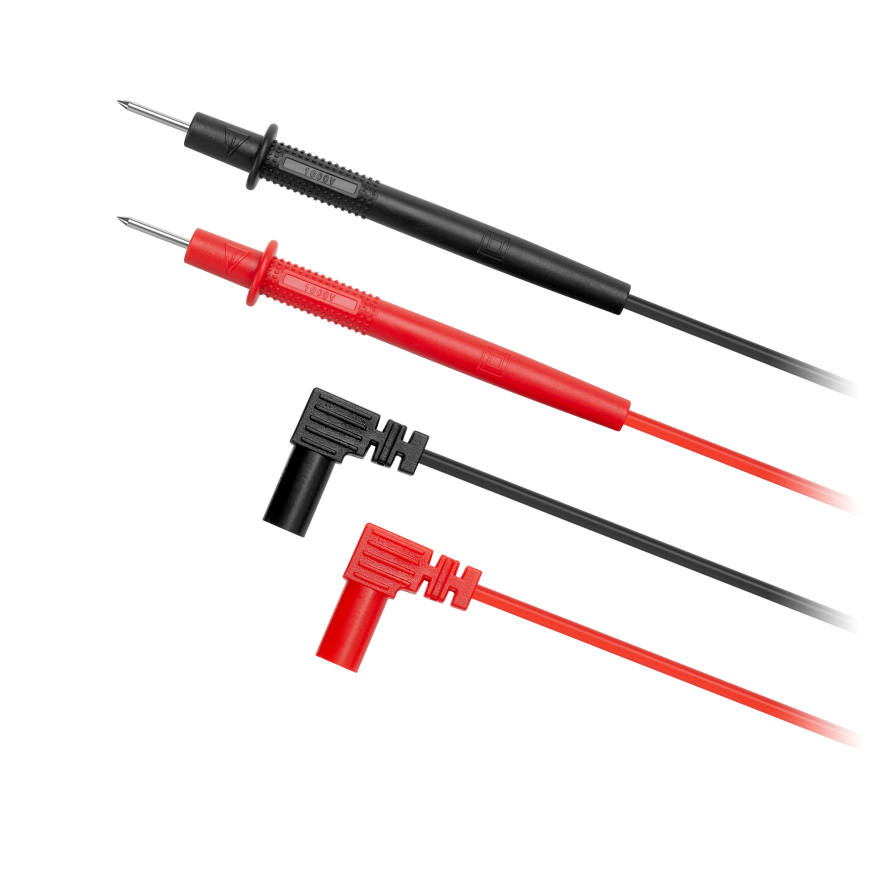

- In the set: meter, measuring cables, instructions
MEASUREMENT RANGES:
- DC voltage: 200mV, 2000mV, 20V, 200V, 500V
- AC voltage: 200V, 500V
- Continuous current: 2000 µA, 20 mA, 200 mA, 10A
- Resistance: 200 ohms, 2000 ohms, 20 kOhm, 200 kOhm, 20 MOhm, 200 MOhm
- Diode test
- Continuity test
- Generator function
