Other LP Converter OPTICUM UNICABLE SCR/3LEGACY ROBUST 4UB
39.00 €
Ikm. maksa no 1,90 €
2164774 URZ0628
5901912286122
Piegāde 8-11 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Opticum UNICABLE Red Robust SCR 3 LEGACY converterThe UNICABLE function involves the use of 4 frequencies for signal transmission:
- Receiver 1 - 1210MHz
- Receiver 2 - 1420MHz
- Receiver 3 - 1680MHz
- Receiver 4 - 2040MHz.

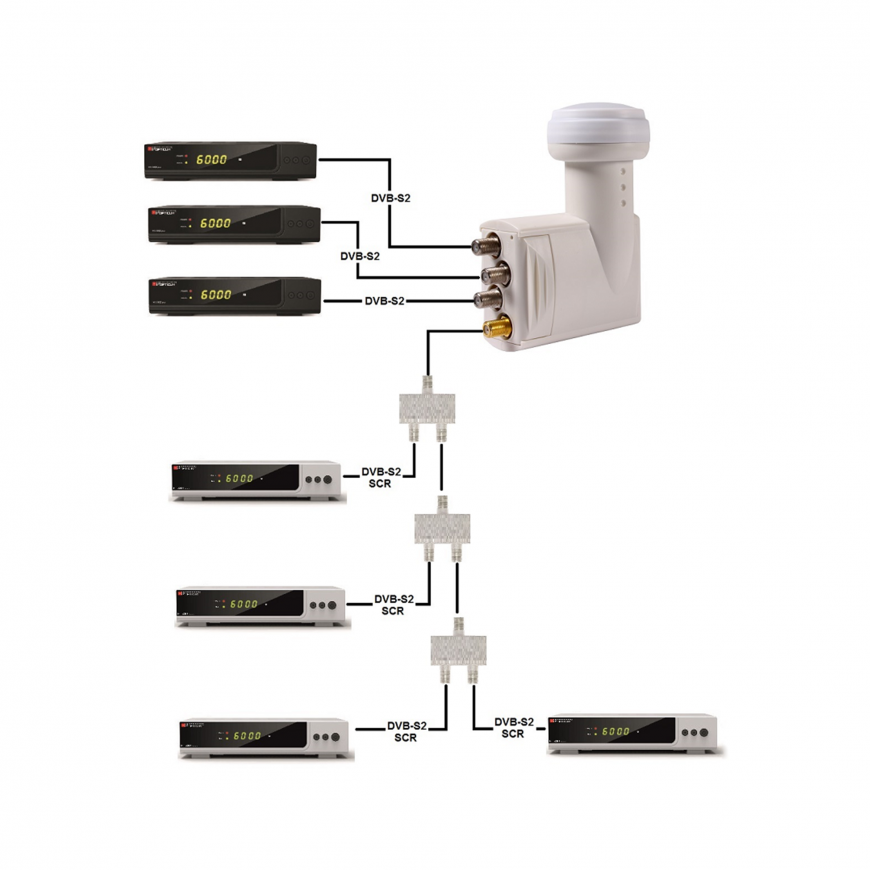

One UNICABLE converter (SCR) gold-colored output allows you to run the signal with one cable up to max. 4 digital receivers with SCR or UNICABLE signal. Three silver converter outputs allow you to connect three traditional digital receivers.
Technical parameters:
- Lower input band: 10.7-11.7 GHz
- Bottom Oscillator: 9.75 GHz
- Upper input bar; 11.7-12.75 GHz
- Upper generator: 10.6 GHz
- IF output channel 1 (SCR): 1210 MHz
- IF output channel 2 (SCR): 1420 MHz
- IF output channel 3 (SCR): 1680 MHz
- IF output channel 4 (SCR): 2040 MHz
- Gain: area 57 dB
- Number of full lane outputs: 2
- Noise figure: 0.1 dB
- Current consumption: 300mA
- Handle diameter: 40 mm
- Operating temperature: -40°C + 65°C
