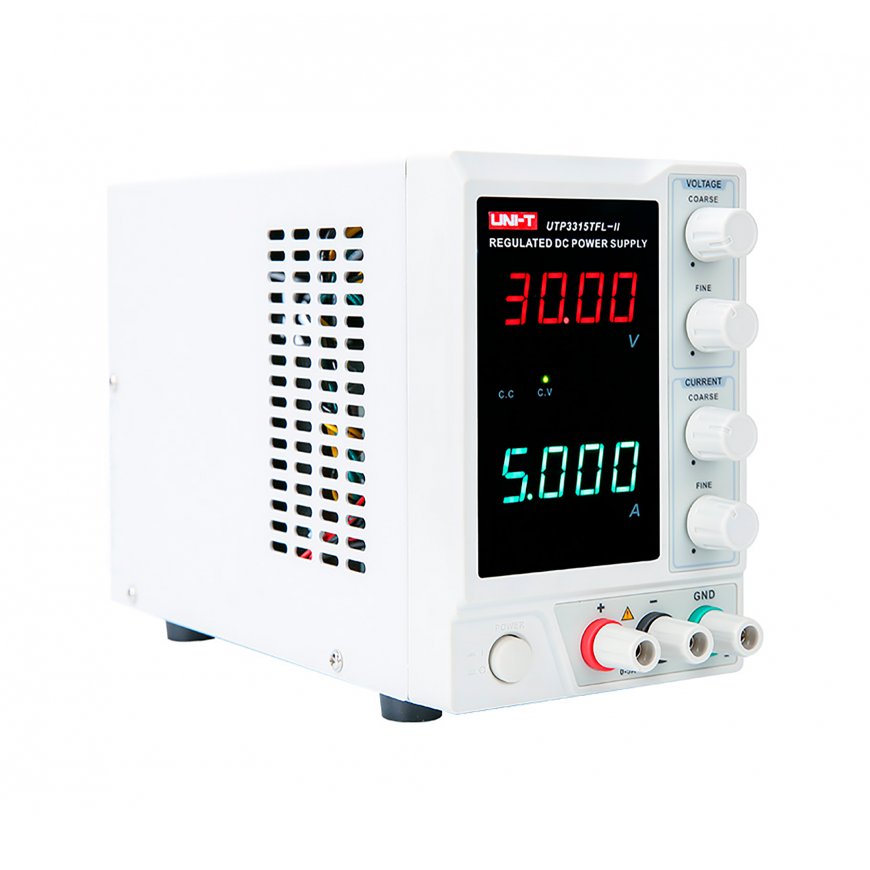

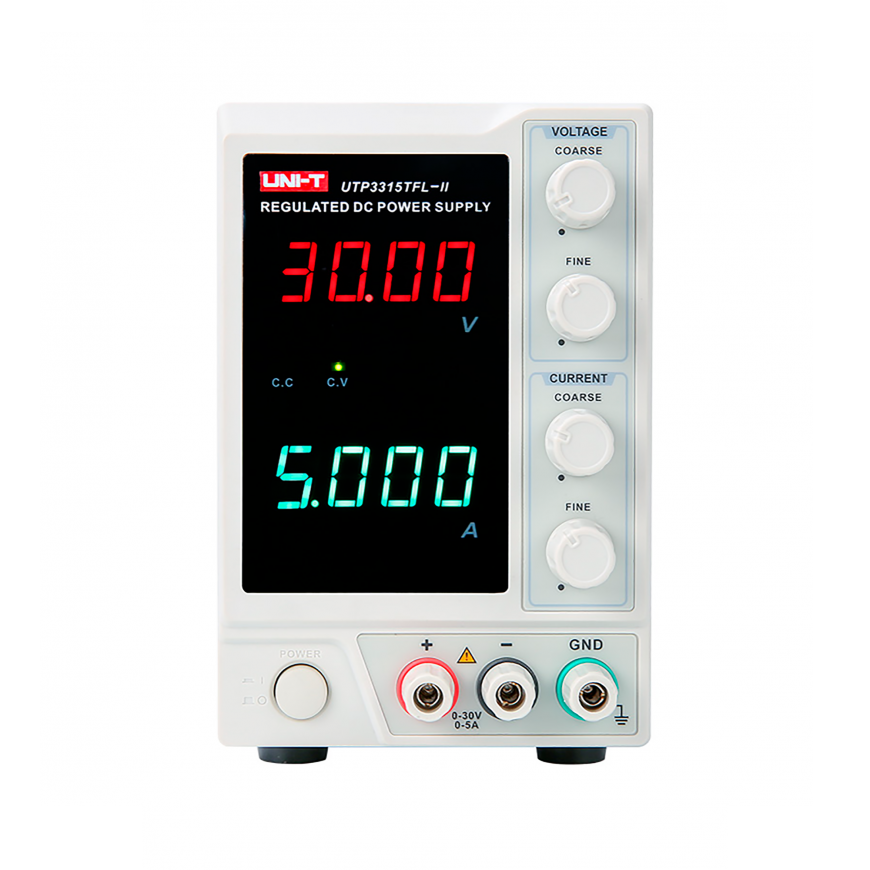

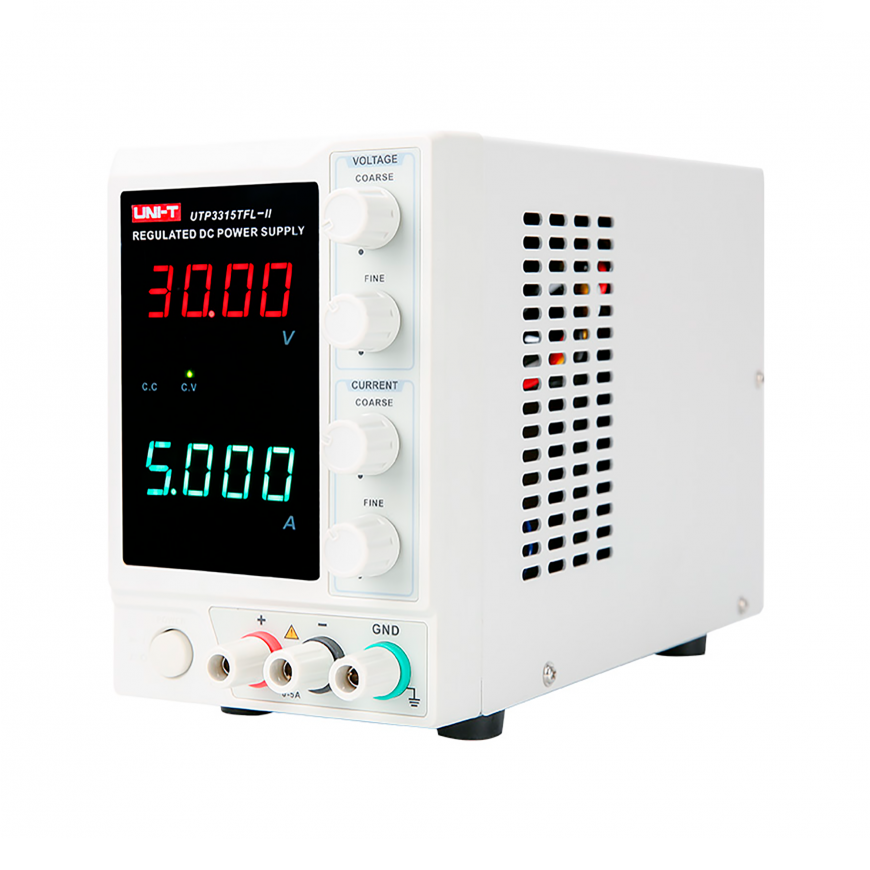

LABORATORY POWER SUPPLY UT-P3315-TFL-II UNI-T
112,32 €
109.67 €
Ikm. maksa no 3,72 €
2114180 MIE0397
5901890056229
Piegāde 6-10 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The laboratory power supply UT-P3315-TFL-II provides the ability to generate constant voltage or electric current with precisely defined parameters.
The device can work in one of two modes: as a source of constant voltage, or as a source of constant electric current.
| Power adapter output voltage range : | 0 V ... 30 V |
| Initial current of the power supply : | 0 A ... 5 A |
| Output power : | 160 W |
| Determination of resolution : | Voltage : 10 mV @ 25 °C ± 5 °C Current : 1 mA @ 25 °C ± 5 °C |
| Setting accuracy : | Voltage : < 0.5 % + 20 mV @ 20 Hz ... 20 MHz Current : < 0.5 % + 10 mA @ 20 Hz ... 20 MHz |
| Pulsations and noises : | Voltage : ≤ 2 mV RMS Current : ≤ 3 mA RMS |
| Temperature coefficient : | Voltage : ≤ 300 ppm/°C Current : ≤ 300 ppm/°C |
| Reaction time : | < 100 µs |
| Number of outputs : | 1 |
| Display : | LED display Double |

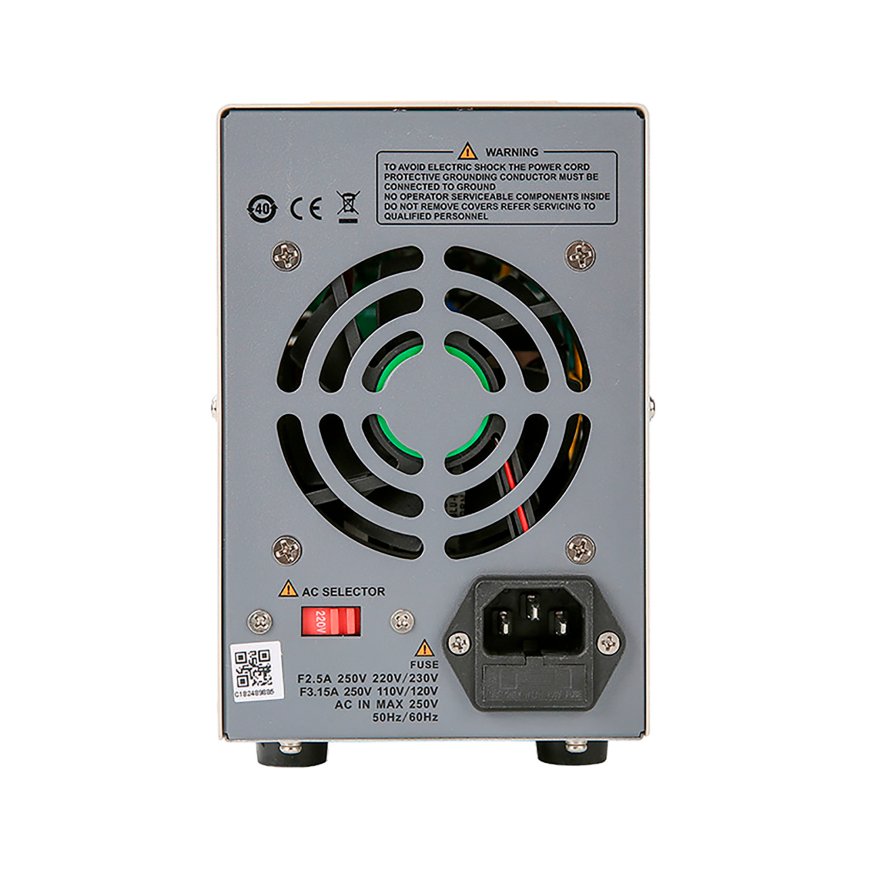

| Meals : | 230 V AC / 110 V AC - selectable with a switch |
| Operating temperature / relative humidity : | 0 °C ... 40 °C / ≤ 85 % |
| Weight : | 4.06 kg |
| Dimensions : | 255 x 165 x 105 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
