Viss par produktu

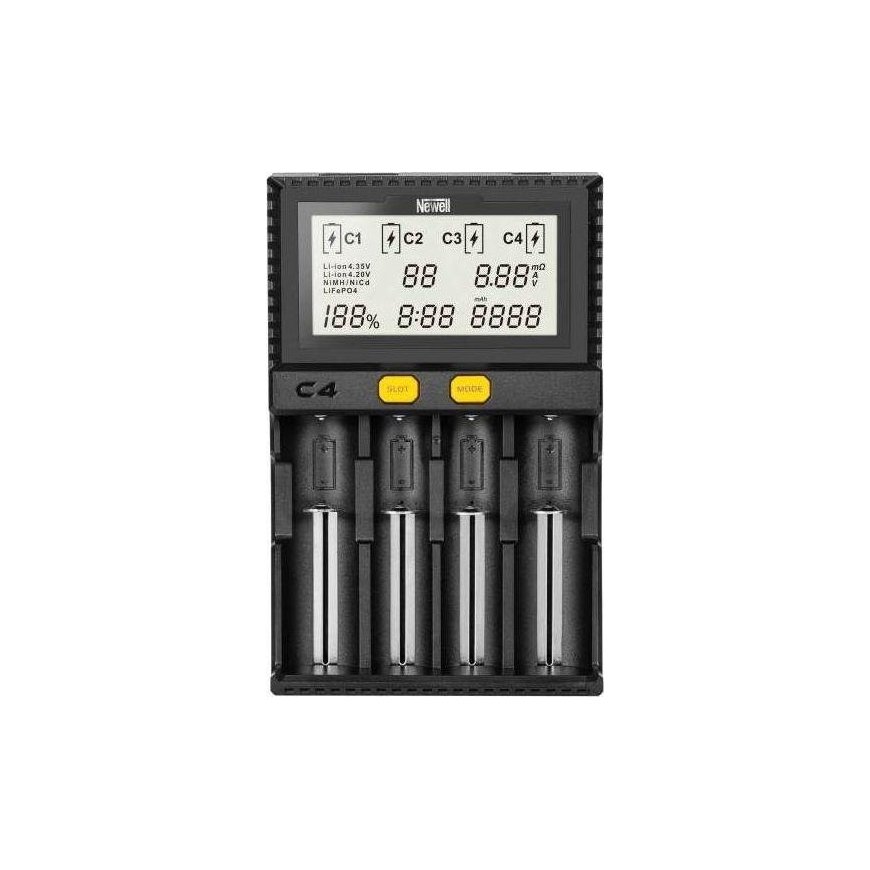

The Newell C4 Supra is a universal charger compatible with most cylindrical batteries on the market. The LCD screen displays voltage, current, charge time, internal resistance, and cell charge percentage, all of which make it easy to determine process parameters and status. The specially designed case allows you to simultaneously charge even the largest batteries (type C or 22650) through all four channels. Automatic or manual selection of the optimal current By default, the charger automatically determines the charging current according to the characteristics of the battery. automatically detects the battery type Li-ion 4.2 V and NiMH / NiCd 1.48 V. LiFEP04 and Li-ion 4.35 V batteries are not detected automatically. The type must be entered manually to charge these batteries. Measurement of internal resistance and cell capacity Before charging, the device measures the internal resistance and estimates the capacity of the cell. Both values are displayed on the LCD screen. Professional capacity calculation. After charging, the estimated battery capacity is displayed on the screen. The charger also allows you to more accurately calculate the capacity during the charging and discharging process (the function is only available on channel 4) Many protection measures Protection against incorrect battery insertion and short circuit and automatic charging stop when the battery is fully charged to prevent the overcharging process safe and energy saving Repairing over-discharged Li-ion batteries Most chargers cannot charge over-discharged or 0V cells. When it detects such a cell, the Newell Smart C4 will attempt to reactivate and repair the Li-ion battery. Unfortunately, cells released below a certain level are destroyed and reactivation may not be possible. Specification Model: Smart C4 Supra Input Current: AC 90-260V 50/60Hz 0.4A (Max); DC 12V 2A charging current (max): 4.2V +/-1% / 4.35V+/-1% / 3.6V+/-1% / 1.48V+/-1% current (max): 1, 5 A x 2, 1.3 A x 3, 1.0 A x 4 NiMH/NiCd batteries are charged by the CC method The charge level of NiMH/NiCd batteries is determined using - △Li-Ion batteries are charged by the CC/CV method Dimensions: 16.6 x 10.7 x 4 cm Weight: 279 g Compatibility Ni-MH, Ni-Cd (1.48 V): A, AA, AAA, AAAA, C, SCLi-ion, IMR, INR, ICR, (4.20 V / 4.35 V), LiFePO4 ( 3.60 V: 10340, 10350, 10440, 10500, 12340, 12500, 12650, 13450, 13500, 13650, 14350, 14430, 14350, 14430, 144650 , 14560, 14560 R. 123) New ell Smart C4 Supra charger for NiMHLi-Ion batteries
