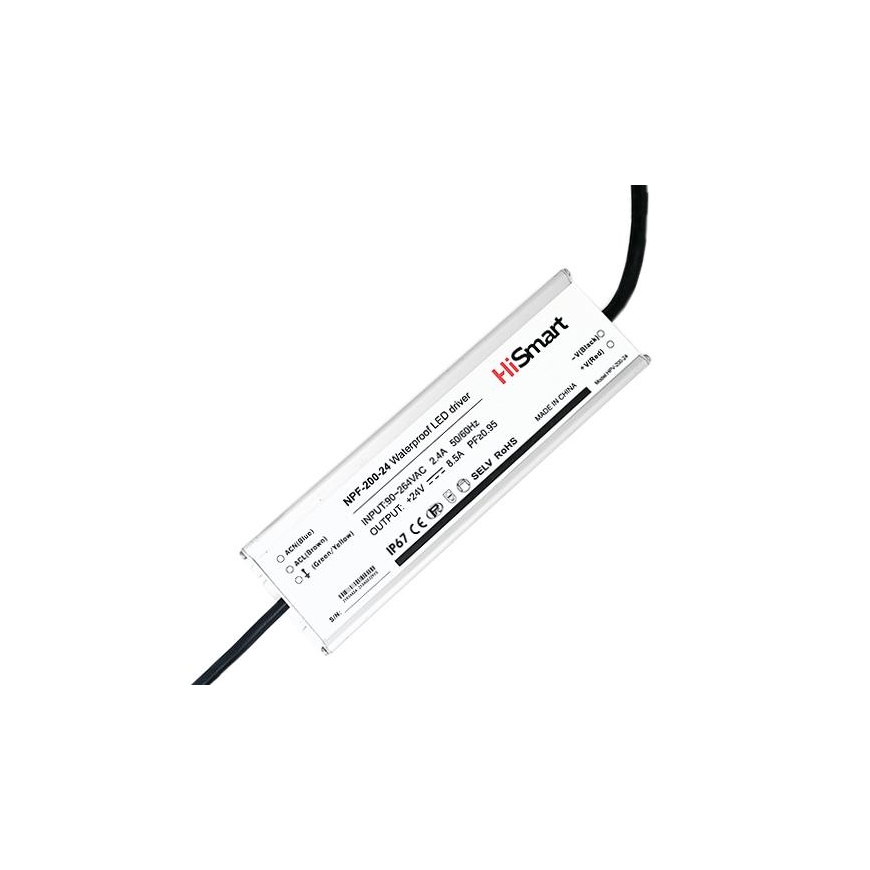

Hismart Power supply 24V, 8.5A, 200W
39.00 €
Ikm. maksa no 1,90 €
1878264Piegāde 5-8 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Pulse power supply 24V, 8.5A, 200W.Features:
Narrow profile open type power supply operating in pulse mode.
Small volume, low weight, high efficiency.
Protection: against overload, short circuit.
Cooling by free air convection.
Power consumption without load: <1.0W.
Technical data:
Power supply type: pulsed.
Input voltage: AC 180-264V. Frequency: 47-63Hz.
Output voltage: DC 24V.
Possibility to adjust the output voltage within ±10%.
Maximum output current: 8.5A.
Maximum power: 204W.
Irregularities and noise: 200mV pp.
AC voltage: 2.5A / 230V.
Efficiency: 90%.
Drain current in the input circuit at AC 240V: up to 2mA.
MBTF: min 230000 hours
Operating temperature: from -20°C to +50°C.
Working humidity: 20%-90%RH.
Dimensions: 210x62x31mm.
Weight: 0.4kg.
Warranty: 24 months
