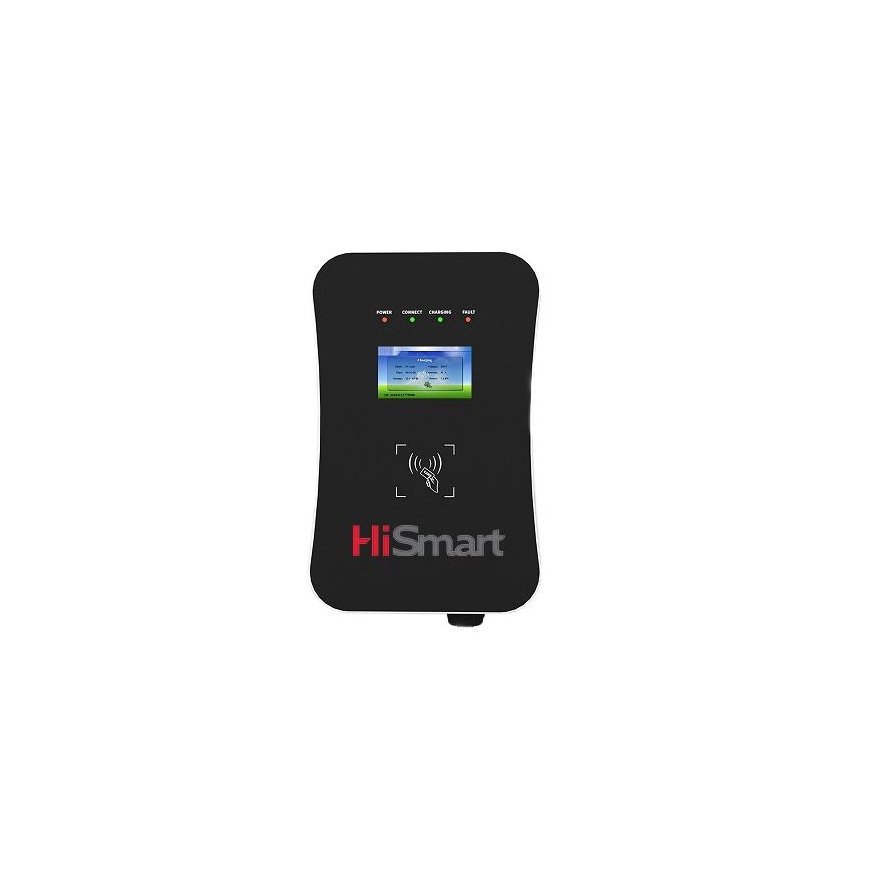

Hismart Electric car charging station, Type 2, 22kW, 32A, 3-phase
798.99 €
Ikm. maksa no 21,47 €
1873191 EV200092
Piegāde 5-8 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Charging station for electric cars Mode3, 22kW, 32A, 3-phase, with Type 2 socket, without charging cable, wall-mounted, RCD, IP65 suitable for indoor and outdoor conditions, IK08 shock-resistant, Plug&Play / RFID cards.Features:
The charging station allows you to charge up to 22kW.
Station with Type2 socket, standard throughout Europe. An appropriate cable or adapter can be connected to it, the connector of which is compatible with the vehicle (Type 1 Yazaki, Type 2 Mennekes, Tesla, Chademo, CCS combo, etc.).
Technical data:
Max. charging current: 32A (3-phase).
Max. charging power: 22kW (3-phase).
Input: 380V +/- 20V AC (3-phase), 32A (max), 50/60Hz.
Output: IEC 62196, Type2 (European), Mennekes, 7 pins.
Charging control: Plug&Play / RFID card.
Screen: 4.3 inch LCD screen.
4 LED indicators: voltage/connection/charging/error.
Body material: metal plate.
Front panel: tempered glass.
Screen color: black.
Operating temperature: -30°C-55°C.
Operating humidity: <95% RH.
Storage temperature: from -40°C to +75°C.
Safety class: IP65 (suitable for indoor and outdoor conditions), IK08 (impact resistant).
Protection: RCD (residual current device).
Protection against: overheating, overvoltage, overload, voltage fluctuations, short circuit, leakage; grounding
Cooling: natural.
Size: 410 x 260 x 164 mm.
Weight: <12 kg.
Warranty: 24 months
