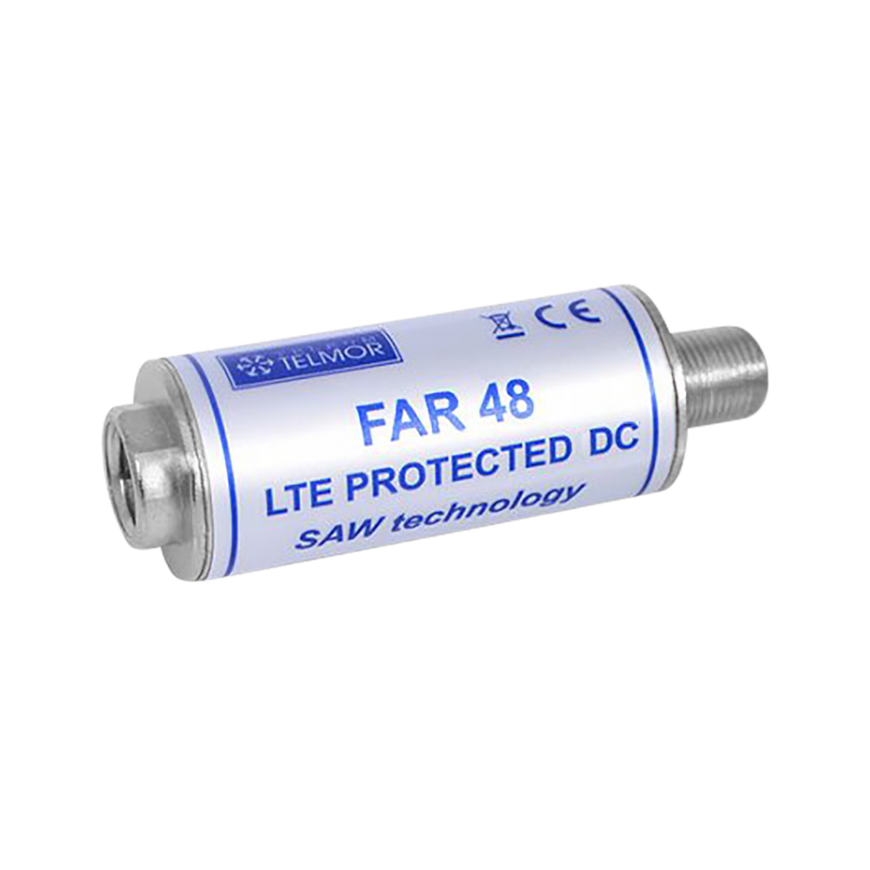

Filter 5G FAR 48 LTE SAW DC PASS LPF 686MHz Telkom Telmor
22.62 €
1815744 ANT0724
Piegāde 6-10 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
------------Technical data
------------
Bandwidth frequency range: 47-694 MHz
Passband attenuation: 4 dB
Stopband Rejection: >18 dB / 698-718 MHz; > 26 dB / 718-725 MHz; > 30 dB / 725-2600 MHz
DC Edition: Yes
Power transfer from the OUT side (max): 5-24 V DC / 100 mA
Input resistance: 75 Ohm
Output impedance: 75 Ohm
Input connector type: F jack
Output connector type: F plug
Operating temperature: -20 ~ 50 degrees Celsius
Dimensions: 64mm (length) x 20mm (diameter)
Weight: 0.045 kg
------------
General
------------
FAR 48 is an LTE low-pass filter designed to remove interfering signals in the frequency range above 694 MHz, including LTE 700 and 5G signals. The filter transmits signals in the 47-694MHz frequency range, which corresponds to TV and radio channels from the following bands: FM, VHF, UHF.
The filter is intended for indoor use.
FAR 48 LTE PROTECTED DC PASS with DC pass (possibility to power antenna pre-amplifiers)
