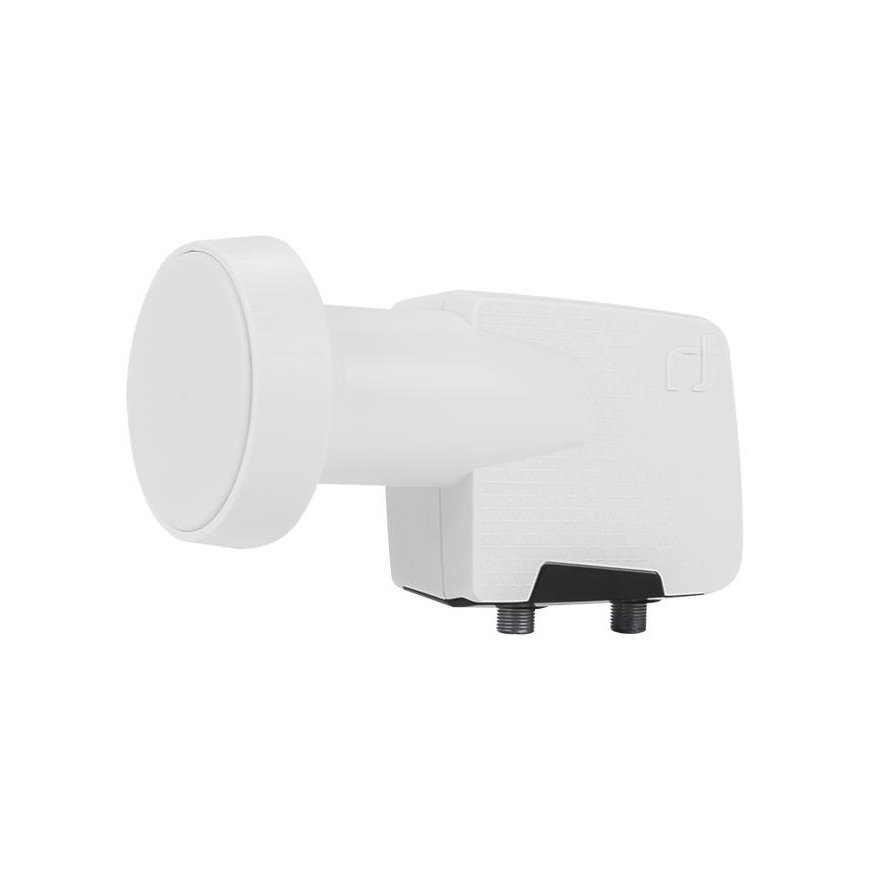

Blow 77-180 Sat converter inverto twin home pro
1783614 77-180#
Šī prece nav vairs pieejama
Viss par produktu
The specially designed converter meets the demand of the global DTH market for 4G and LTE. Twin Home Pro allows you to receive using the latest technology - it supports HD and UHD transmission. Provides excellent performance with very low energy consumption. This allows you to receive satellite TV from one satellite and distribute it to 2 separate set-top boxes (or one with two receivers).
Characteristics:
- Low phase noise compatible with DVB-S2 (HD and UHD)
- Low noise level
- Low power consumption
- High cross polarization
- High frequency stabilization
Specification:
- Input frequency range: 10.7GHz ~ 12.75GHz
- Output frequency range: 950 MHz ~ 2150 MHz
- Low LO frequency band: 9.75 GHz
- High frequency band LO: 10.6 GHz
- Noise level: 0.3 dB typ. (max. 0.7dB)
- Frequency accuracy: LO @ 25 °C ± 500 kHz max.
- Temperature offset: ± 1.0 MHz max.
- LO phase noise at 10 kHz: -80 dBc/Hz. max
- Conversion gain: 55 db. min.
- Ripple gain: (bandwidth greater than 26 MHz) ± 0.75 dB
- Gain variation (across the band): ± 4 dB
- Image rejection: 40 dB
- Cross polarization isolation: 22 db min.
– VSWR: 2.5:1
- Current consumption: max 120 mA @ 11V DC - 20V DC
- Operating temperature: -30 ° ~ + 60 ° C
- Weight: 218 g
