The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

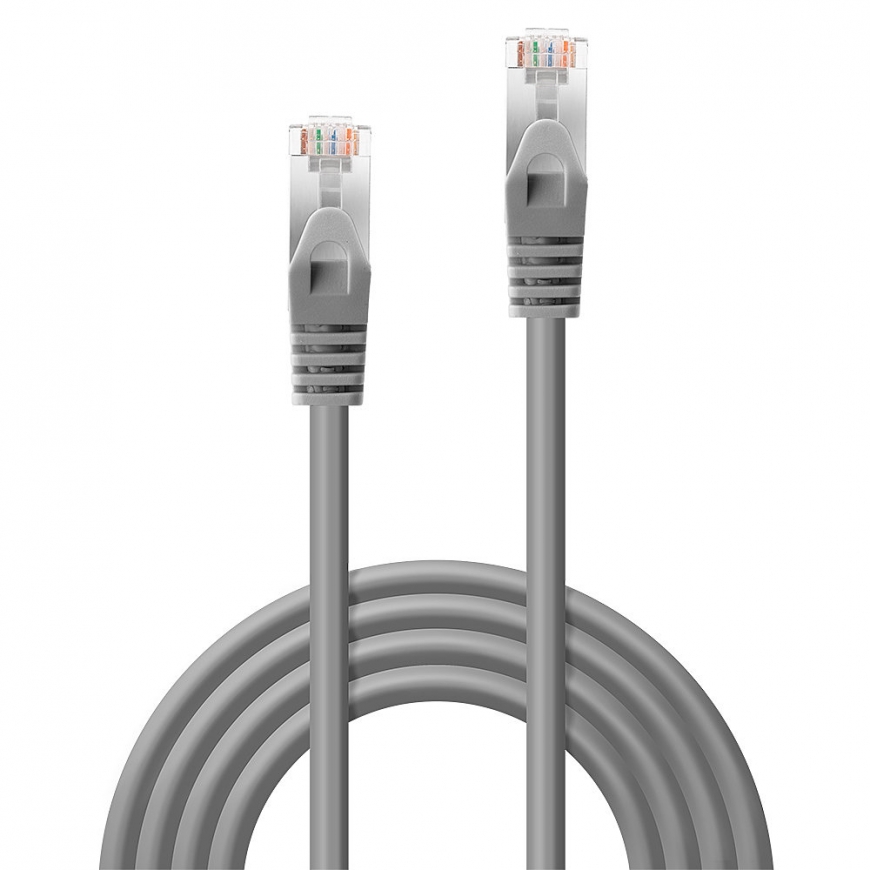

Lindy 47245 networking cable Grey 3 m Cat6 F/UTP (FTP)
8,72 €
904047 47245
4002888472456
Shipping 2-3 b.d.
You are interested in this product?

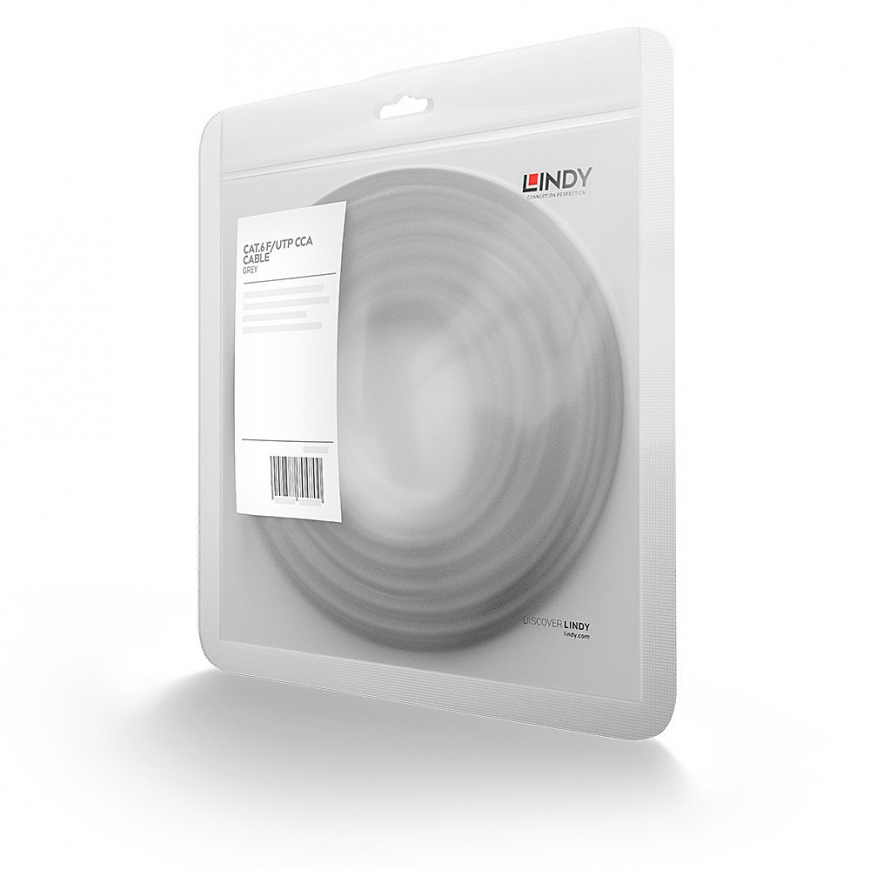

Cat.6 cable for operating frequencies up to 250Mhz in a shielded version with foil shielding (F/UTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

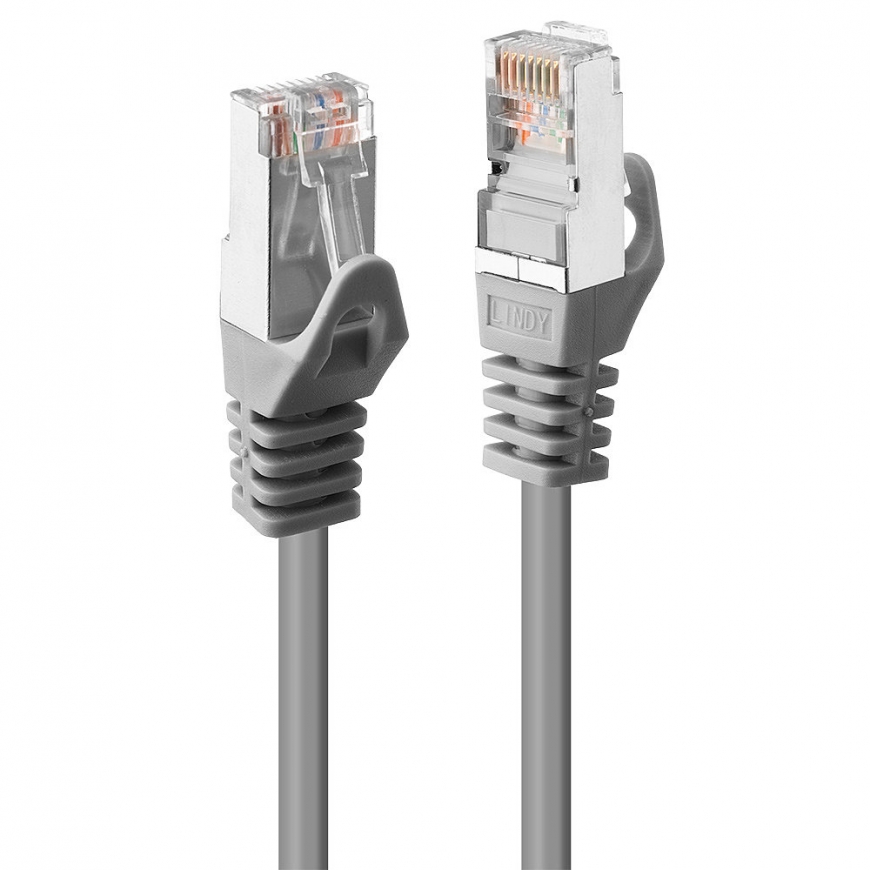

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The high frequencies used in network technology cause a high current load in the outer layers of the conductors due to the skin effect , while the conductor cores are only subjected to very low electrical loads. This allows the use of copper clad aluminium (CCA) conductor material, making this cable more cost-effective than pure copper cables.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m.
Features | |
| Cable length | 3 m |
| Cabling technology | 10/100/1000Base-T(X) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable standard | Cat6 |
| Cable shielding | F/UTP (FTP) |
| AWG wire size | 26 |
| Frequency | 250 MHz |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Copper-Clad Aluminium (CCA) |
| Product colour | Grey |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
Weight & dimensions | |
| Bend radius (min) | 7.2 cm |
| Outer diameter | 6 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
Certificates | |
| Certification | RoHS, REACH, California Proposition 65 |
