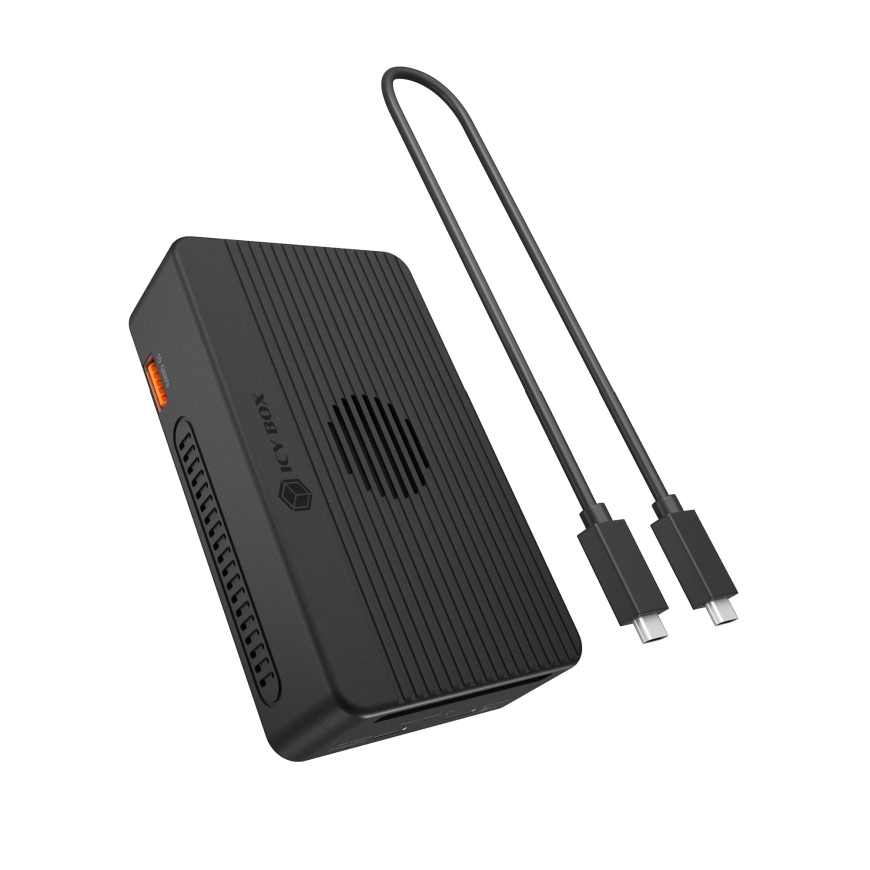

ICY BOX Heart RAID 2818 RAID & DockingStation for 2x M.2 NVMe SSD
189,00 €
Monthly payment from 5.77 €
4528378 61203
4250078175391
Shipping 6-8 b.d.
You are interested in this product?
Heart RAID 2818 delivers the speed professionals expect from modern high performance storage. It connects via USB Type-C® and supports Thunderbolt™ 3 and USB4® with transfer rates up to 40 Gbps. This allows extremely fast data access for demanding workflows such as video editing, large backups, or high resolution projects. When used with compatible systems, it unlocks the full potential of NVMe SSD technology.
Dual M.2 NVMe with Software RAID

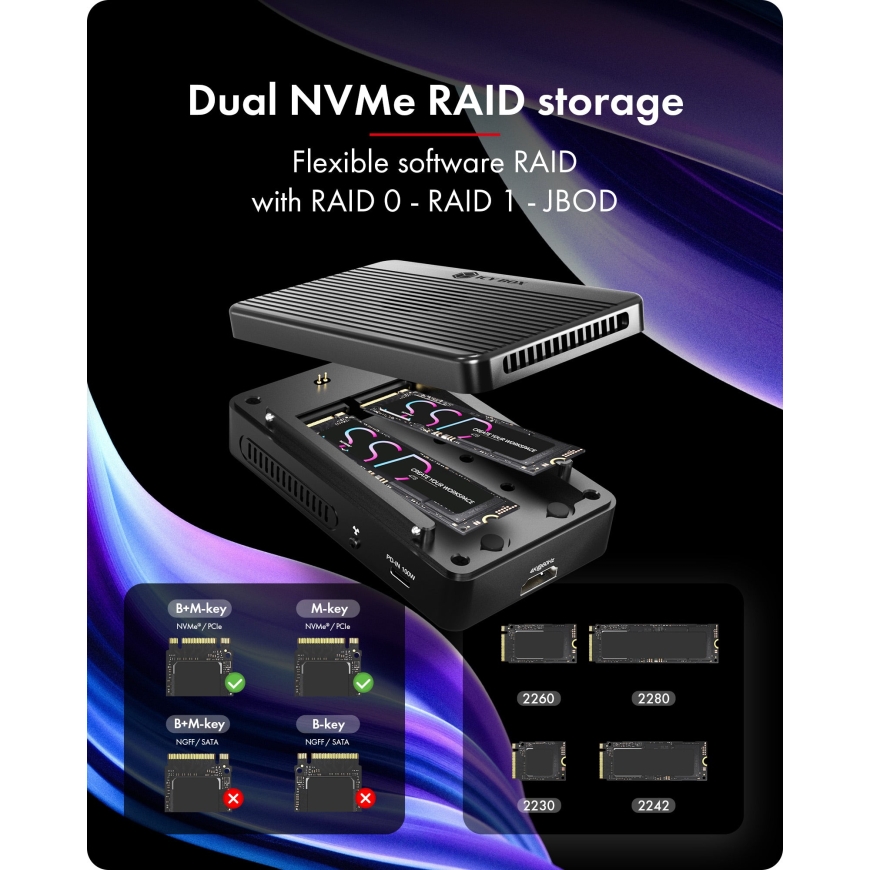

This powerhouse of an enclosure supports 2 M.2 NVMe M-Key SSDs in sizes up to 2280. With software RAID functionality, you can configure the drives for higher performance or data redundancy depending on your needs. This gives you flexibility between speed and security. It transforms 2 SSDs into one powerful storage solution.
8K? 8K!
Beyond storage, Heart RAID 2818 also functions as a DockingStation. It supports video output up to 7680 x 4320 at 60 Hz via the USB Type-C® connection and up to 4096 x 2160 at 60 Hz through HDMI®. This allows you to expand your workspace with high resolution displays.
60 W Power Delivery
The host connection provides up to 60 W Power Delivery, allowing you to charge your notebook while connected. A separate USB Type-C® PD input supports up to 100 W power supply to ensure stable operation. This keeps your setup efficient and reduces the need for additional adapters.
Stay connected
A USB 3.2 Gen 2 Type-A port with up to 10 Gbps transfer speed enables connecting additional devices. Instead of using multiple hubs, you gain expanded connectivity directly from the enclosure. It supports a more structured and capable desk setup.
Keep it cool

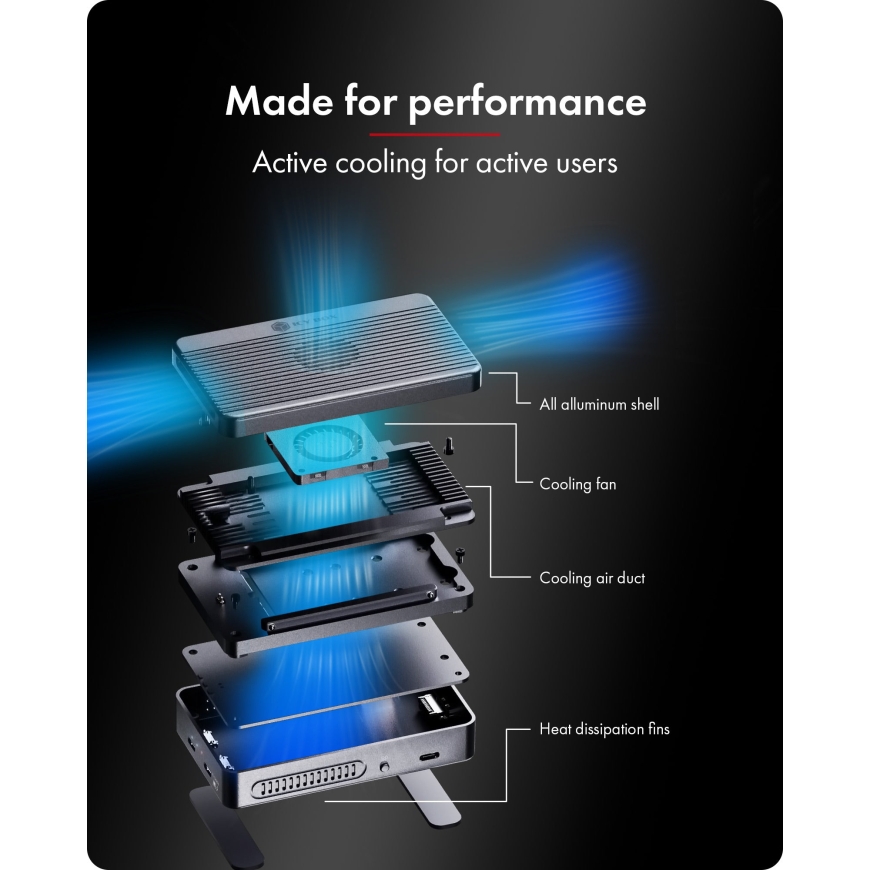

With so much power at hand, things can get a little hot. A built in fan with a dedicated switch helps maintain optimal operating temperatures during heavy workloads. This supports consistent performance when transferring large amounts of data. LED indicators clearly show power and drive activity status.
Storage | |
| Card reader integrated | No |
| Supported storage drive lengths | 30, 42, 60, 80 |
| Maximum storage capacity | 32 TB |
| NVMe | Yes |
Features | |
| Number of storage drives supported | 2 |
| Product colour | Black |
Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Headphone outputs | 0 |
| Microphone in | No |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Design | |
| LED indicators | Yes |
Performance | |
| Plug and Play | Yes |
| Chipset | JHL7440, CH224K, GSV2201E |
| Data transfer rate | 40 Gbit/s |
Logistics data | |
| Country of origin | China |
| Quantity per pack | 150 pc(s) |
| Master (outer) case width | 235 mm |
| Master (outer) case length | 445 mm |
| Master (outer) case height | 195 mm |
| Master (outer) case gross weight | 7.16 kg |
| Products per master (outer) case | 10 pc(s) |
Weight & dimensions | |
| Weight | 242 g |
| Package weight | 680 g |
| Depth | 54 mm |
| Height | 28 mm |
| Package depth | 210 mm |
| Package width | 40 mm |
| Width | 110 mm |
System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Packaging content | |
| Cables included | USB Type-C to USB Type-C |
| Manual | Yes |
Other features | |
| Host interface | USB4 |
Power | |
| Output current | 5 A |
Network | |
| Ethernet LAN | No |
