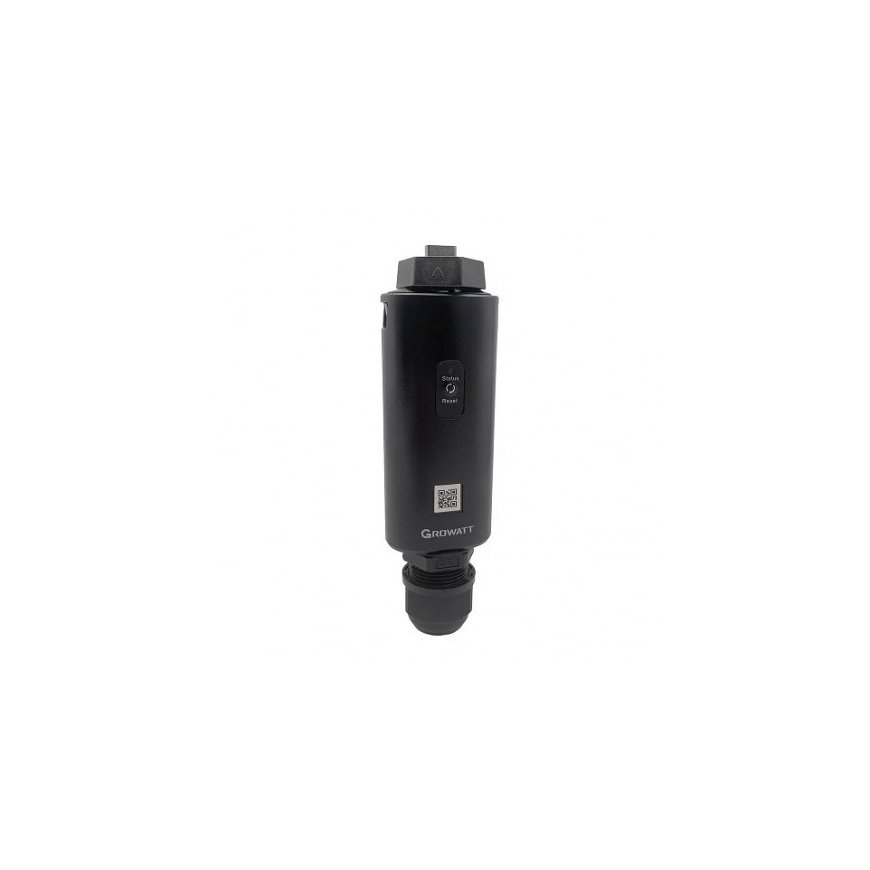

GROWATT internet interface Shine WiLAN-X2
3843771 NV822690
6975609727792
Shipping 2-4 days
Growatt internet interface ShineWiLan-X2
Features:

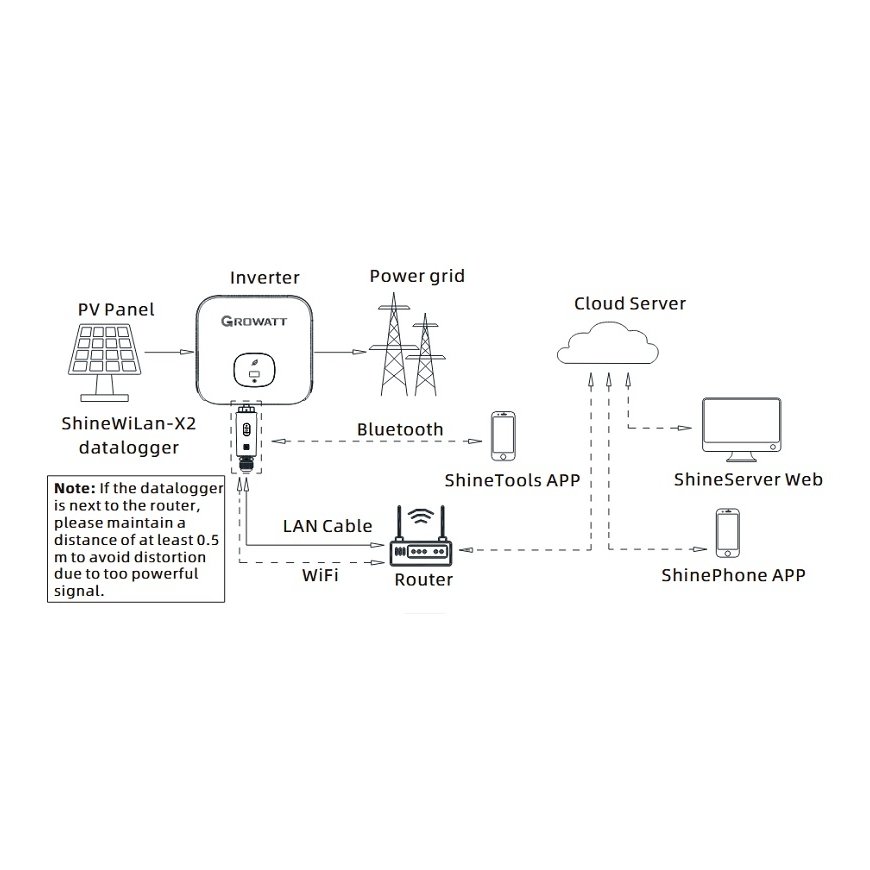

ShineWiLan-X2 is a professional device designed for monitoring and managing PV systems. This interface is intended to connect the parameters of the Growatt inverter to the Growatt Cloud server wirelessly or via wired connection, and to monitor the operation of the solar power plant and the energy produced through the ShinePhone app.
The device supports Wi-Fi, LAN, and Bluetooth communication modules.
A USB dongle with a 50-meter wireless range connects your PV system to Wi-Fi. A LAN connection is recommended for wired installations in suitable environments. The connection to the inverter occurs via a USB interface using the Modbus RTU protocol.
The device has built-in memory, so the data from the connected inverter is stored for about 30 days, even if the internet connection is interrupted.
The information received allows real-time monitoring and analysis of historical energy production data, assessing the condition and efficiency of the PV system.
The app allows you to receive notifications about errors or failures, perform remote diagnostics, and basic troubleshooting without the need to visit the site.
The device supports local configuration and software updates via smartphone using Bluetooth (BLE).
It is an ideal choice for both residential and commercial solar energy systems.
Specifications:
Supported networks: Wi-Fi, Bluetooth, LAN.
Wireless communication standards: 802.11 b/g/n; BLE4.2.
Wireless frequency: 2.4GHz.
Max. Wi-Fi connection range: 50m.
Transmission power:
802.11b: 19.5±2 dBm (@11Mbps).
802.11g: 14±2dBm (@54Mbps).
802.11n: 18±2dBm (@HT20, MCS0).
802.11n: 13±2dBm (@HT20, MCS7).
BLE: 0±2dBm(@1Mbps).
Receiver sensitivity:
CCK, 1 Mbps : -97dBm±2dBm.
CCK, 11 Mbps: -88dBm±2dBm.
6 Mbps (1/2 BPSK): -92dBm±2dBm.
54 Mbps (3/4 64-QAM): -75dBm±2dBm.
HT20, (MCS0) : -92±2dBm.
HT20, (MCS7) : -72±2dBm.
HT40, (MCS0) : -89±2dBm.
HT40, (MCS7) : -69±2dBm.
BLE: -93±2dBm (@1M,30.8%PER).
Ethernet data transmission speed: 100Mbps.
Max. LAN connection range: 100m (Cat5e).
Voltage: 5V.
Power consumption: 2.5W (max. 4W).
Interface: USB Type-A.
Supported server: ShineServer (mqtt.growatt.com).
App: ShinePhone.
Data transmission interval: 5 min.
Operating temperature: -30°C ~ +65°C.
Protection class: IP65.
Dimensions: 152x47x28 mm.
Weight: 94g.
Certifications: CE, UKCA, SAA, RoHS.
Warranty: 12 months.
