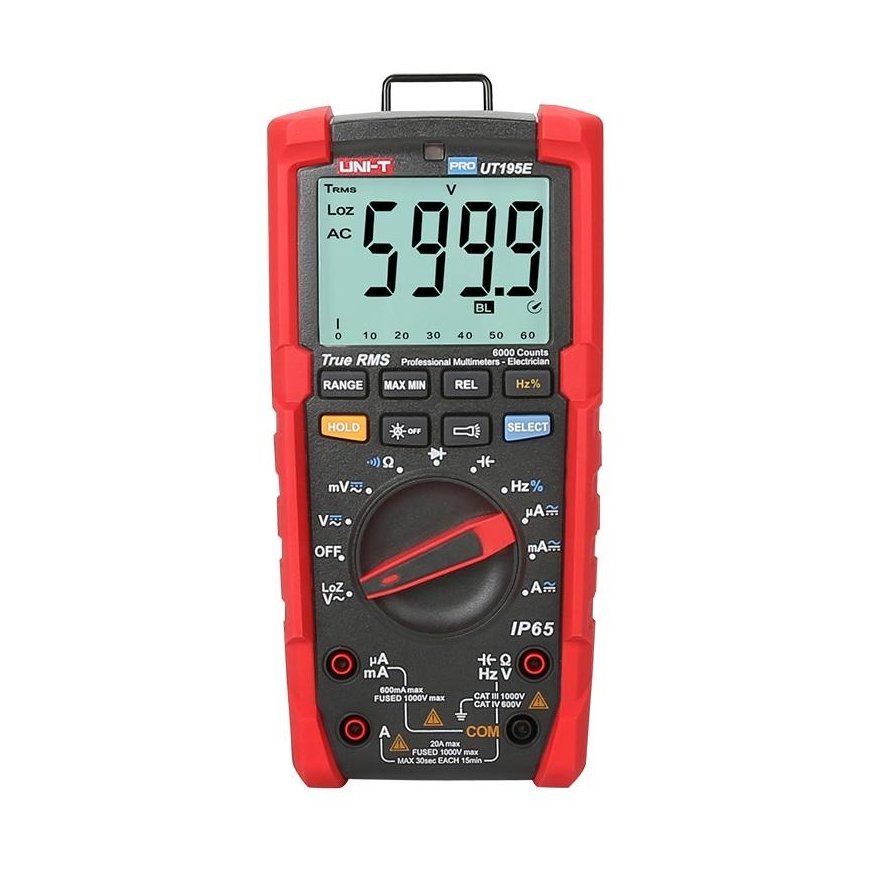

Professional multimeter UT195E UNI-T
3764290 UT195E
6935750519554
Shipping 3-5 b.d.
The UT195 series industrial digital multifunction meters are IP65 rated and resistant to drops from 2 meters, making them ideal for harsh conditions such as heavy industry, outdoor work, mines, and oil fields. These dummy meters are designed for tasks such as motor diagnostics, equipment maintenance, and electrical repairs, combining durability with user-friendly operation.
Features:
True RMS measurement
● IP65 and drop protection from 2 meters
● 3-phase sequence testing (UT195M/UT195DS)
● MAX/MIN/data hold mode
● LPF ACV function (UT195DS)
● APO / flashlight / automatic backlight
| Parameters | Range | UT195E | UT195M | UT195DS |
| DC Voltage | 600mV ~ 1000V | 600mV±(0.5%+3) 1000V ±(0.2%+5) | ||
| AC Voltage | 600mV ~ 1000V | ±(1%+3) | ||
| AC+DC Voltage | 600V | ±(1.5%+4) | ||
| LoZ ACV | 600.0V | ±(2.0%+3) | ||
| DC Current (A) | 600.0mA 6.00A 20.00A | ±(0.8%+3) ±(1.0%+3) ±(1.2%+3) | ||
| AC Current (A) | 600.0mA 6.00A 20.00A | ±(1.0%+3) ±(1.2%+3) ±(1.5%+3) | ||
| Resistance (Ω) | 600.0 Ω 600.00kΩ 6.00MΩ 60.00MΩ | ±(1.0%+2) ±(0.8%+2) ±(1.2%+2) ±(2.5%+2) | ||
| Capacitance | 6.000nF ~ 60.00mF | ±(3%+5) | ±(3%+5) | ±(3%+5) |
| Frequency | 60.00Hz ~ 10.00MHz | ±(0.1%+4) | ±(0.1%+4) | ±(0.1%+4) |
| 60Hz~40MHz | ±(0.1%+4) | ±(0.1%+4) | ||
| Duty Cycle | 0.1% ~ 99.9% | ±(2.0%+5) | N/A | ±(2%+5) |
| Temperature | -10~1000 C | ±(1.5%+4C) | ||
| Features | ||||
| Maximum Display Value | 6000 | |||
| Screen Type (HTN) | Single Digit | Single Digit | AC+DC | |
| Measurement Data Update | times/s | 3 | 3 | 5 |
| Analog Scale Update | times/s | 10 | 20 | |
| Analog Scale | 31 divisions | √ | √ | |
| TRMS/True RMS Measurement | √ | |||
| AC Voltage Frequency Characteristic | 45 ~ 400Hz | 45~1kHz | 45~5kHz | |
| AC Current Frequency Characteristic | 45 ~ 400Hz | 45~1kHz | 45~5kHz | |
| 3-Phase Motor Sequence Test | 600V | √ | ||
| Low Frequency Filter | 1kHz 3dB slope | |||
| Diode/Circuit Testing | 3.5V | 3V | 3V | |
| Peak Hold | 250μs | √ | ||
| Auto/Manual Range | √ | |||
| Automatic Shut-off | √ | |||
| Audible Signal | √ | |||
| Battery Indication | √ | |||
| Data Hold | √ | |||
| MAX/MIN Values | √ | |||
| Function Selection | √ | |||
| Flashlight | √ | |||
| Automatic Backlight | √ | |||
| Operating Temperature | 0 °C ~40 °C | |||
| Drop Resistant from 2m Height | √ | |||
| IP Protection | IP65 | |||
| General Characteristics | ||||
| Power Supply | 9V | |||
| LCD Size | 66mm × 51mm | |||
| Weight | 473g | |||
| Dimensions | 195mm × 95mm × 58mm | |||
| Accessories | Test leads, battery, case, T measurement probe (UT195M) | |||
