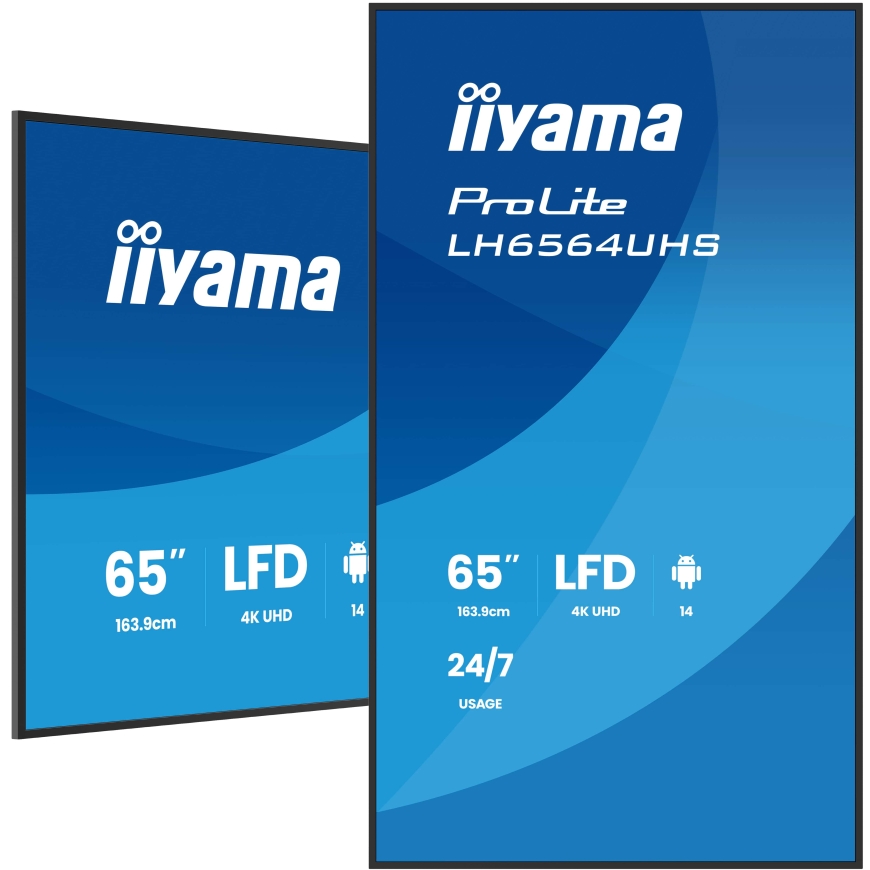

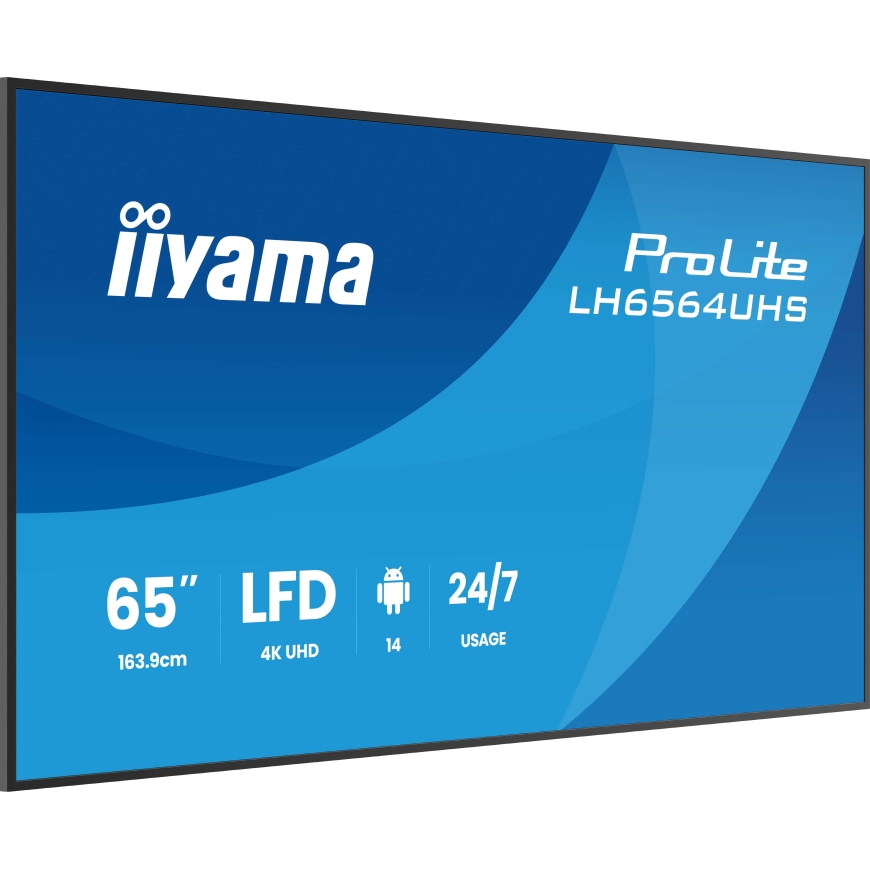

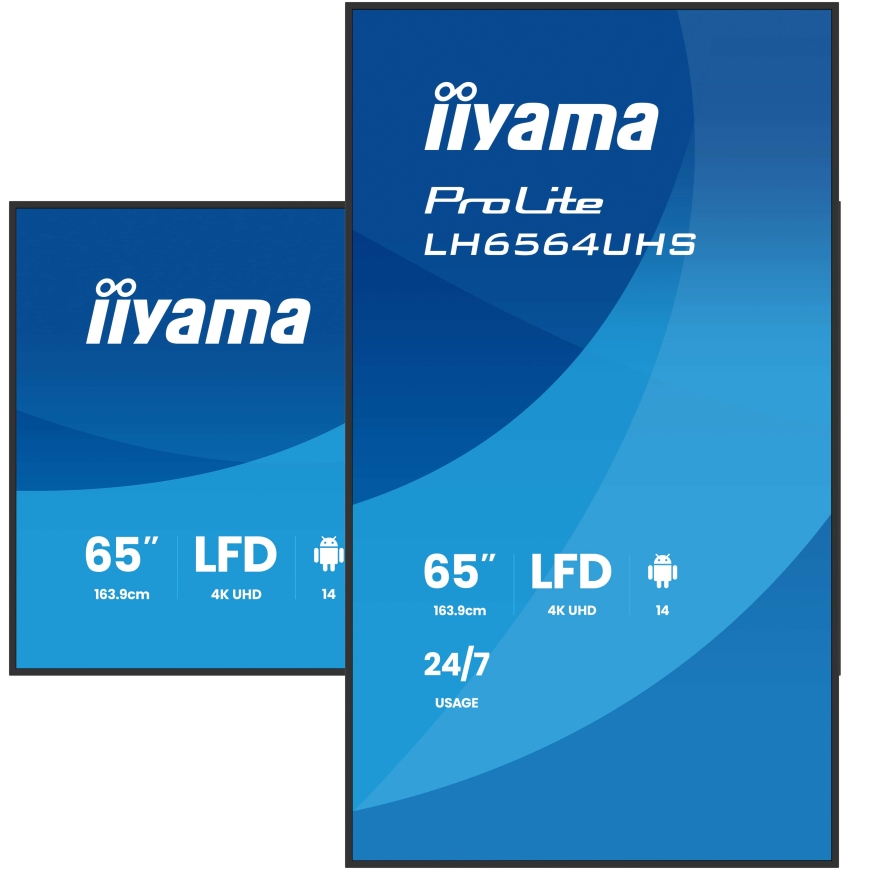

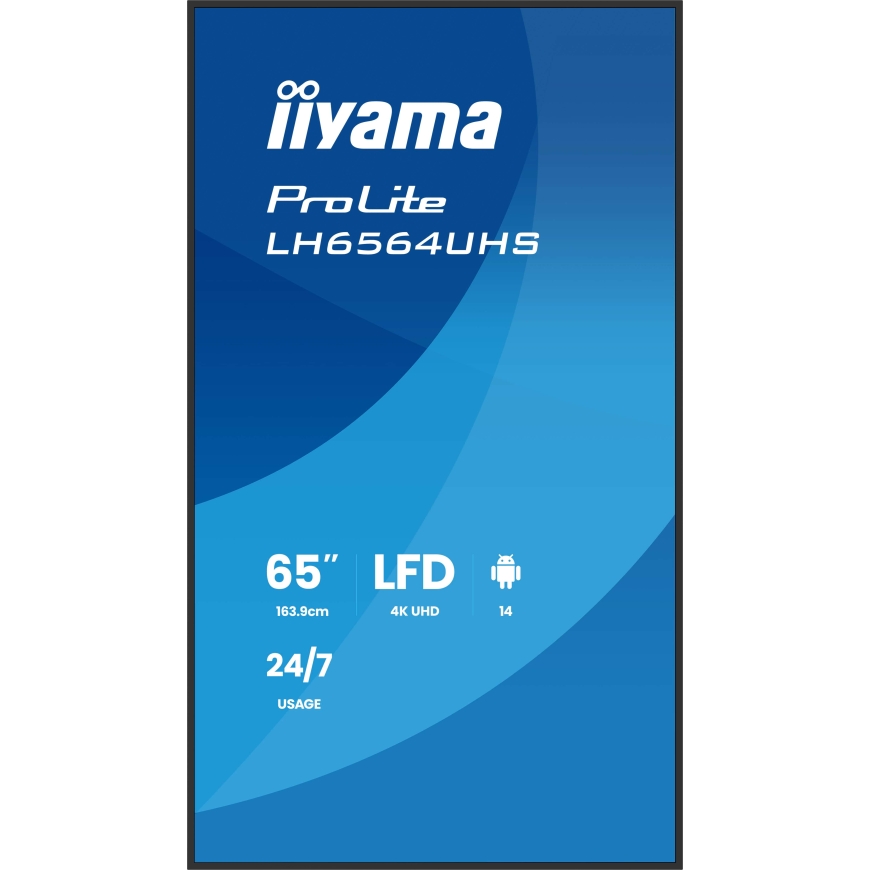

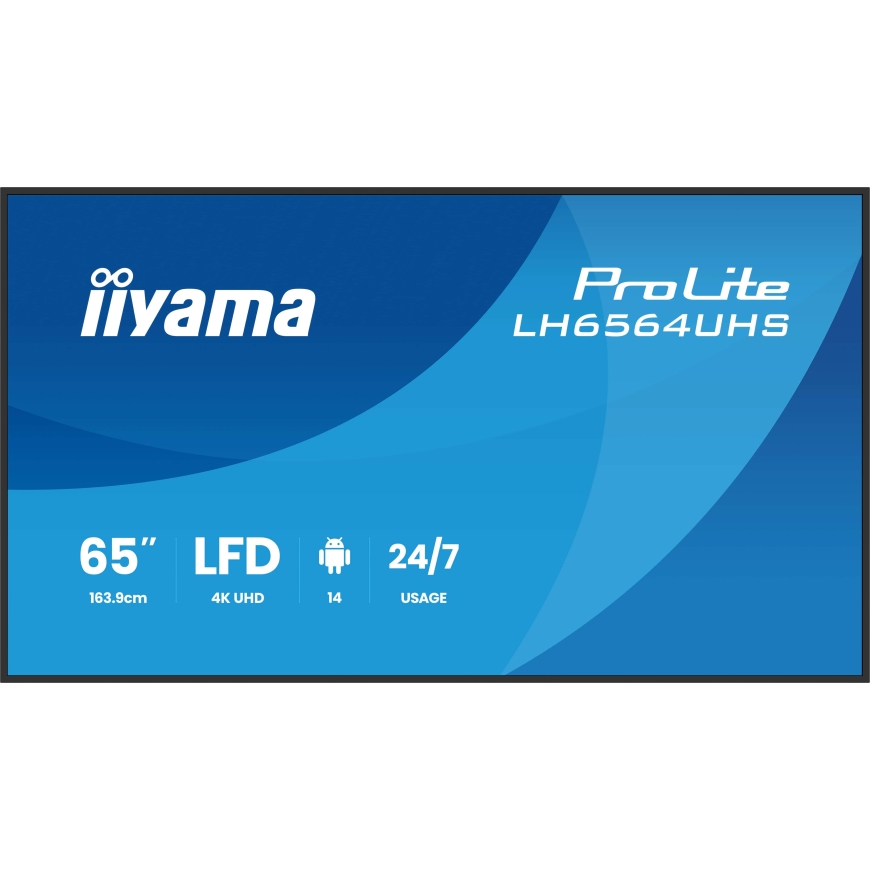

iiyama LH6564UHS-B1AG Signage Display
3638132 LH6564UHS-B1AG
4948570125326
Shipping 4-6 b.d.
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
Flexible Orientation
With the option to switch between landscape and portrait mode, these displays let you get creative with any space. Whether it’s messaging, ads, videos, or safety info, you can tailor your content to grab attention exactly how you want.
| Display diagonal | 165.1 cm (65") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Native refresh rate | 60 Hz |
| Operating system installed | Android |
| RMS rated power | 20 W |
| Wi-Fi | Yes |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 500 x 500 mm |
| HDMI ports quantity | 2 |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 184 kWh |
| Touchscreen | No |
| Display number of colours | 1.07 billion colours |
| Internal storage capacity | 32 GB |
| USB port | Yes |
| USB version | 2.0 |
| Weight | 17.7 kg |
| Width | 1457.7 mm |
| Depth | 68.8 mm |
| Height | 832.4 mm |
| Cables included | AC; HDMI; RS-232 |
| Internal memory | 4 GB |
| Package width | 1640 mm |
| Package depth | 164 mm |
| Package height | 990 mm |
| Package weight | 27.5 kg |
| Sustainability certificates | ErP |
| Power consumption (off) | 0.3 W |
| Quick start guide | Yes |
| Purpose | Universal |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 184 W |
| Built-in speaker(s) | Yes |
| Energy efficiency scale | A to G |
| AC input frequency | 50/60 Hz |
| Remote control included | Yes |
| USB ports quantity | 2 |
| Mean time between failures (MTBF) | 50000 h |
| Orientation | Horizontal/Vertical |
| Batteries included | No |
| Placement supported | Indoor |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 164 cm |
| Operating system version | 14 |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 15 |
| On Screen Display (OSD) languages | Traditional Chinese; Danish; German; Dutch; English; Spanish; Finnish; French; Italian; Norwegian; Polish; Russian; Swedish; Japanese; Czech |
| Number of built-in speakers | 2 |
| HDMI version | 2.0 |
| HDCP | Yes |
| Power consumption (standby) | 0.5 W |
| Display brightness | 500 cd/m² |
| Power supply type | Internal |
| Mounting kit | Yes |
| Product design | Digital signage flat panel |
| RS-232C | Yes |
| Anti-glare screen | Yes |
| Built-in processor | Yes |
| Display width | 1457.7 mm |
| Display depth | 68.8 mm |
| Display height | 832.4 mm |
| Display weight | 17.7 kg |
| On-board graphics card model | ARM Mali-G52 |
| Panel type | VA |
| Pixel pitch | 0.372 x 0.372 mm |
| Response time | 6.5 ms |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 15 W |
| HDCP version | 1.4/2.0 |
| Remote (IR) input | 1 |
| Horizontal scan range | 57 - 62 kHz |
| Active display area (W x H) | 1428.5 x 803.5 mm |
| Remote (IR) output | 1 |
| Bezel width (bottom) | 1.28 cm |
| Bezel width (side) | 1.28 cm |
| Bezel width (top) | 1.28 cm |
| Operating hours (hours/days) | 24/7 |
| Processor architecture | ARM Cortex-A73 |
| Haze rate | 25% |
| Number of displays | 1 |
| User controls | network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export) |
| Playback media | Y |
| Bezel colour | Black |
| Compliance certificates | CE; RoHS; REACH; WEEE; UKCA; EAC; TÜV mark |
