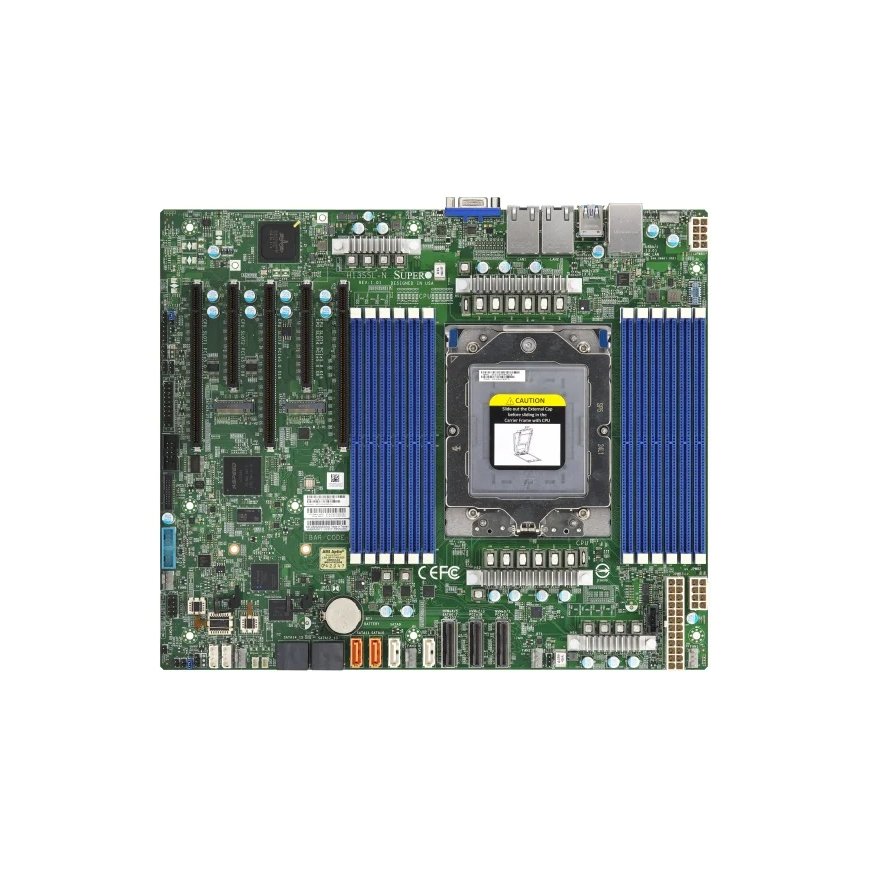

Supermicro MBD-H13SSL-N-O motherboard Socket SP5 ATX
769,00 €
Monthly payment from 20.70 €
3485774 MBD-H13SSL-N-O
0672042516339
2026-09-02
You are interested in this product?
Processor | |
| Compatible processor series | AMD EPYC 9004 |
| Processor socket | Socket SP5 |
| Supported processor sockets | Socket SP5 |
| Processor manufacturer | AMD |
Memory | |
| Maximum internal memory | 3 TB |
| Memory voltage | 1.1 V |
| Supported memory types | DDR5-SDRAM |
| Supported memory module capacities | 16GB, 32GB, 64GB, 128GB, 48GB, 24GB |
| Memory slots type | DIMM |
| Number of memory slots | 12 |
| Supported memory clock speed (max) | 4800 MHz |
| ECC сompatibility | ECC |
Storage controllers | |
| Number of HDDs supported | 8 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
Internal I/O | |
| Number of chassis fan connectors | 6 |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 8 |
Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| IPMI LAN (RJ-45) port | Yes |
Network | |
| LAN controller | Broadcom BCM5720 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
Features | |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Component for | Server |
Expansion slots | |
| PCI Express x8 slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 3 |
BIOS | |
| BIOS type | AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.5 |
Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Width | 304.8 mm |
| Depth | 256.5 mm |
