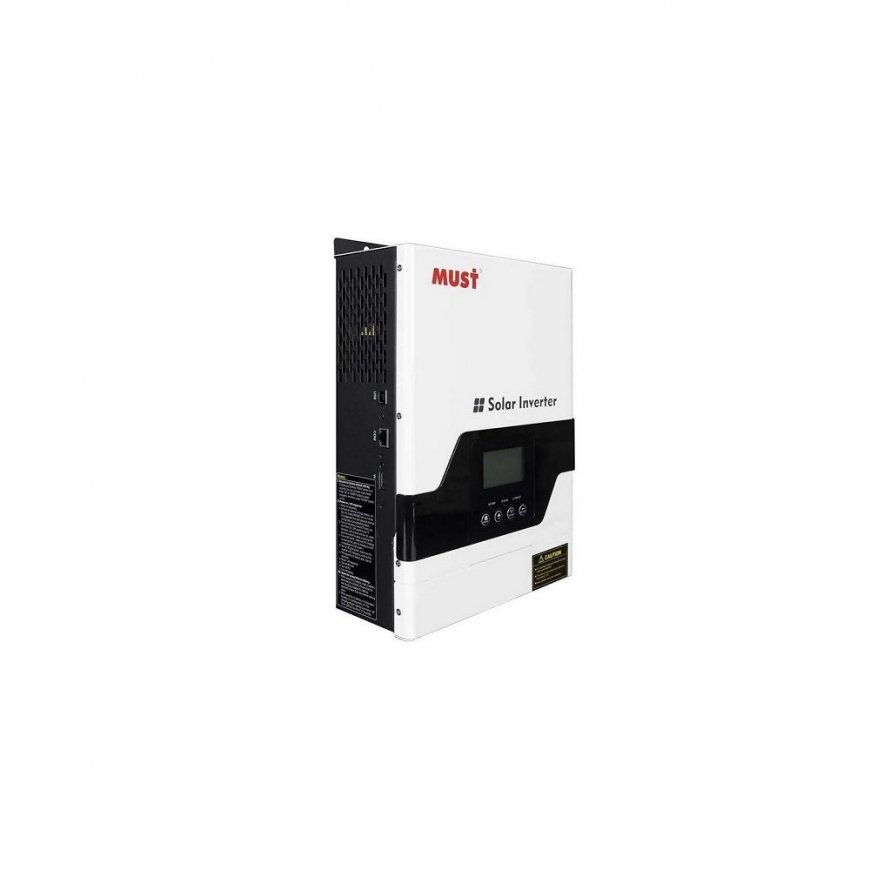

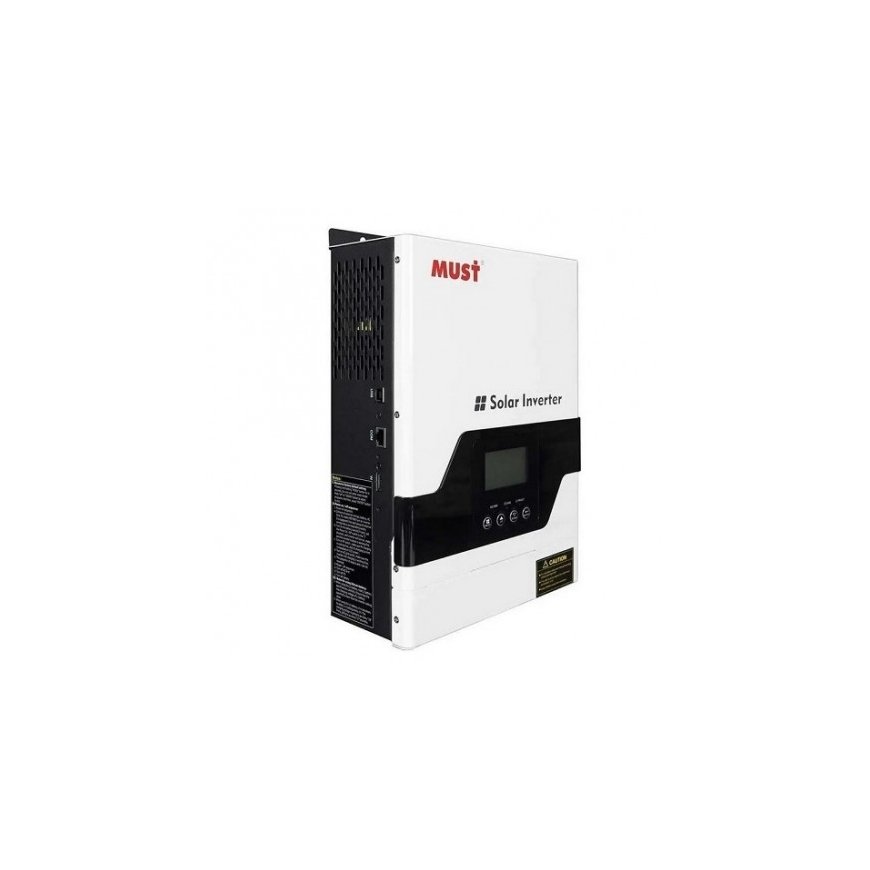

Inverter MUST PV18-3224VPM II, 3.2kW, 1-phase, 24V, 60A MPPT, 160V
279,00 €
Monthly payment from 8.08 €
3091912 NV822379
9990000822379
Shipping 2-4 days
You are interested in this product?
Features:
This inverter combines the functions of an inverter, MPPT 60A solar charger and battery charger to provide uninterrupted power support in a portable size.
Operating parameters and priorities can be set on the LCD screen as needed.
Nominal power 3kW.
Integrated MPPT 60A PV charge controller.
Combines solar, AC or battery power to ensure continuous power. Generator compatibility.
With USB and RS485 communication interfaces.
Protection against overload, short circuit and deep discharge.
CE, SAA, ISO9001 certified.
Technical data:
Battery voltage: 24V DC.
Nominal power: 3200W.
Fuse tripping: at 6000VA.
Waveform: True sinusoid.
Switching time: 10ms/20ms.
Frequency: 50/60Hz.
PV open circuit voltage max.: 160V DC.
MPP voltage range: 30~128V DC.
Max. solar charge current: 60A.
Power of solar panels: 1600W.
Screen: LCD.
Operating temperature: 0°C ~ +50°C.
Dimensions: 254.5x367.4x103 mm.
Weight: 5.5 kg.
Certificates: CE-EMC+LVD(EN6100-6-3, EN6100-6-1+EN IEC62109-1, EN IEC62109-2).
Warranty: The warranty of the voltage converter (inverter) is valid from the day when we (the seller) are provided with the serial number of the inverter, the purchase invoice, a certified electrician's or es certificate at the time of delivery of the solar power plant about the installed:
1) Lightning arrester and overvoltage limiter (on the input side)
2) Lightning protection (between solar panels and inverter)
3) DC voltage disconnector between panels and inverter
4) Separate grounding of solar panels, from common house grounding
The 2-year (24-month) manufacturer's warranty is valid from the date of purchase of the inverter upon submission of the above documents.
Note: Lightning strike is an insurable event, not a warranty event.
Specifications
| Default battery system voltage | 24V DC |
| Inverter Output | |
| Rated power | 3200VA / 3200W |
| Surge power | 6400 VA |
| Waveform | pure sine wave |
| AC voltage regulation (Battery mode) | 220~240V AC (setting) |
| Transfer time | 10ms (UPS/VDE4105) / 20ms(APL) |
| Input AC | |
| Voltage | 230V AC |
| Selectable voltage range | 170~280V AC(UPS) /90~280V AC(APL) /184~253V AC(VDE) |
| Frequency range | 50Hz / 60Hz (Auto sensing) |
| Efficiency | |
| Inverter efficiency (peak) | 90-93% |
| Battery | |
| Normal voltage | 24V DC |
| Floating charge voltage | 27.4V DC |
| Overcharge protection | 30V DC |
| Solar charger & AC charger | |
| Maximum PV array open circuit voltage | 160V DC |
| PV array MPPT voltage range | 30~128V DC |
| Standby power consumption | 2W |
| Maximum PV array power | 1600W |
| Maximum solar charge current | 60A |
| Maximum efficiency | 98% |
| Maximum AC charge current | 60A |
| Maximum charge current | 120A |
| General specifications | |
| Dimensions(W*H*D) | 254.5*367.4*103 mm |
| Package dimensions (W*H*D) | 436*331*189 mm |
| Even weight | 5.5 kg |
| Gross weight | 6.5 kg |
| Operating temperature | 0°C to 50°C |
| Humidity range (non-condensing) | 5% - 95% |
| Storage temperature | -15°C to 60°C |
