Trishield coaxial cable RG6 75 Ohm, 1.02/4.8/6.9 PVC Eca 100m
2385753 KRT102A0PV100
5904204402101
4-6 b.d.

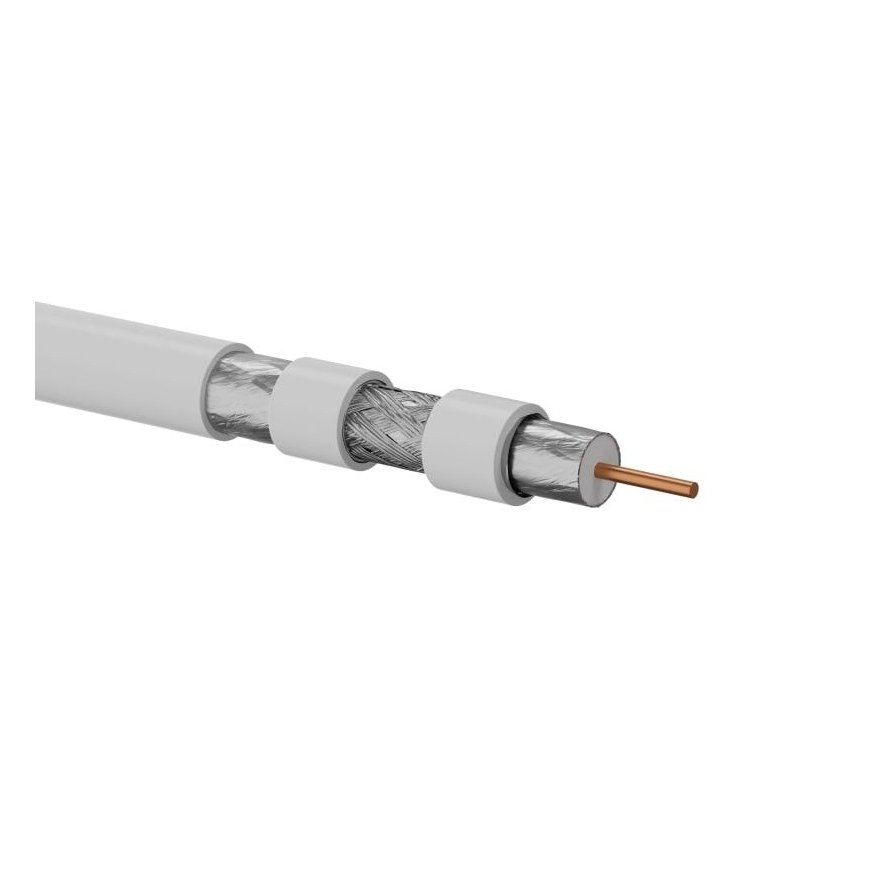

RGTec - reliable coaxial cable, trishield - triple shielded (foil/braid/foil), made in RG6 construction.
Inner conductor made of 100% copper wire with a diameter of 1.02 mm. Braid density 77%. Shielding class A+. Easy cable laying in cable shafts, installation boxes and mounting boxes. Designed for indoor installations of terrestrial, cable and satellite television.
Meets the requirements of the regulation of the Ministry of Transport, Construction and Maritime Economy on "technical conditions to be met by buildings and their location" of November 22, 2012 in the field of cabling dedicated to RTV/SAT installations
Product warranty - 10 years.
Copper core
- Diameter (mm) 1.02 (+/- 0.01)
Physically foamed dielectric
- Dielectric diameter (mm): 4.55 (+/- 0.1)
- Shielding (1) AL/PET/AL foil
- Shielding (2) Aluminum braid 77%
- Shielding (3) AL/PET/AL foil combined with a dielectric
Coat
- Diameter (mm): 6.86 (+/- 0.10)
- Material: UV-resistant PVC
- Euroflammability class: Eca
- White color
Electrical parameters
- Impedance (): 75 (+/- 3)
- Waveform shortening factor: 82% (+/- 1)
Mechanical parameters
- Operating temperature: -20 to +70°C
- Laying temperature: -5 to +40°C
- Weight: 4.8 kg
- Dimensions: 270 x 270 x 120 mm
Cable attenuation
- 5MHz 1.66
- 55MHz 4.89
- 211MHz 9.17
- 250MHz 10/02
- 270MHz 10.41
- 300MHz 10.95
- 330MHz 11.54
- 350MHz 11.91
- 400MHz 12.73
- 450MHz 13.56
- 500MHz 13.37
- 550MHz 15/12
- 600MHz 15.85
- 750MHz 17.88
- 870MHz 19.36
- 1000MHz 20.86
- 1218MHz 23/11
- 1300MHz 24/01
- 1400MHz 24.99
- 1500MHz 25.88
- 1600MHz 26.83
- 1700MHz 27.73
- 1800MHz 28.63
- 2000MHz 30.49
- 2200MHz 32/03
- 2500MHz 34.47
- 2800MHz 36.67
- 3000MHz 38.13
