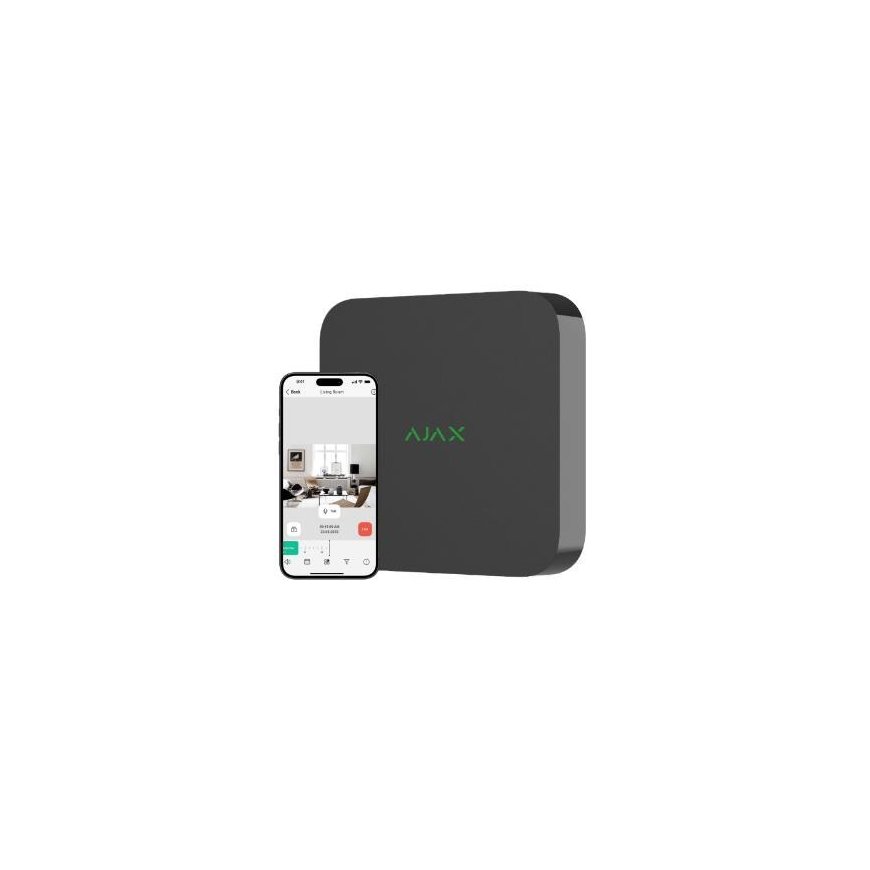

NET VIDEO RECORDER 16CH/BLACK 70935 AJAX

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

NET VIDEO RECORDER 16CH/BLACK 70935 AJAX

269,01 €
Monthly payment from 7.83
2346493

70935

4823114044120

Shipping 3-7 b.d.

Quantity
You are interested in this product?
(Read terms of service)

Video redirection to the highest level of security
NVR provides synergy between video surveillance and Ajax systems. Experience unparalleled system response speed, providing instant access to your video archive even when you are on the go. Wide compatibility allows you to integrate almost any IP camera along with intrusion protection and automation.

Security and reliability
All system data is securely stored in the European Union and fully complies with European data protection standards. Ajax NVR is NDAA compliant, and each component is sourced from US government-approved and trusted manufacturers. It is versatile and can be installed in any location. In addition, Ajax NVR has undergone independent cybersecurity testing to ensure its security and reliability.

Adaptation
Integrate all your visual data into a streamlined interface. The Videowall tab combines the latest IP camera and MotionCam series detector fragments, so you can see a complete picture of your space. Rearrange the elements according to your preferences. Videowall is available on both mobile and desktop apps.

ajax-nvr-16-channel-network-video-recording

Smooth archive search
Easily access the archive by clicking on an event in the message log - you will immediately find the exact location of the camera recording based on the event timestamp. Everything is available with one click using advanced features.

No more scrolling through endless recordings or waiting for hours to find that one important fragment. Experience unparalleled system responsiveness and smooth control. The lightning-fast interface offers two streams and direct access to the archive without the usual waiting. Instantly jump to a specific timestamp with a single click - no more tedious searches.

Fast and encrypted data transfer
Ajax JetSparrow is the “core and brains” of Ajax video. It is responsible for all video transmission, storage, and management.

JetSparrow is a patented video streaming technology that delivers an ultra-fast VMS experience. This streaming technology makes browsing the local HDD archive as smooth as browsing the cloud storage. This makes browsing the archive extremely efficient and starts live viewing without any delay.

Message synchronization
Using the app’s system notifications, you can easily navigate to a specific camera and view a specific event, making the app a complete solution for both security and video surveillance.

High-quality security check
Set a scenario that will cause Ajax detectors to activate specific cameras and initiate video recording. Configure video settings to receive instant high-definition visual alarm confirmations.

Integrated motion sensor
Optimize your video archive with pixel motion detection. Set specific zones to trigger recordings only when motion is detected in the selected zone. This saves hard drive space and simplifies archive navigation.

Ajax provides secure video export with digital signature verification. Each exported recording has an embedded digital signature. The Ajax media player automatically verifies the integrity and authenticity of the file. If someone tries to alter the video file, the digital signature verification will fail and the Ajax media player will reject the file.

Specifications

Video streaming

NVR models
16 channels
With up to 4K resolution (25/30 FPS)

IP cameras
ONVIF (Profile S/T)
RTSP

Storage
Up to 16 TB hard drive (SATA connector, 3.5" size)

HDD not included. It is possible to connect a hard disk with a power consumption not exceeding 7 W

Decoding formats
H.265
H.264

Data traffic throughput
up to 100 Mbps

Recommendations

The operating voltage of the device is 110-240 V~

The NVR is intended for indoor installation only.

Communication channels

Ethernet
up to 100 Mbps

Bluetooth
BLE frequency band: 2.400-2.4835 GHz
To set up an Ethernet connection.

Radio signal strength
2.5 mW (100 mW limit)

Features

Motion detection
The NVR has built-in software for motion detection in the frame. It is possible to switch between video analysis based on NVR or camera algorithms

The app has a built-in video management system
Videowall that combines images from all connected cameras
Event filters
Timeline with smooth preview

Visual Ajax alarm verification
The NVR can be configured with a scenario that triggers Ajax detectors to trigger specific cameras to start recording. This is accessible directly from the mobile and PC (surveillance) apps.

Power supply

Home
110-240V~, 50/60Hz, 0.6A
Up to 24 W power consumption.

Backup
CR2032 battery, 3V
Only for powering the system clock.

Protection

Notifications of attempts to disconnect the device from the base or remove it from the mounting plate.

Other

Dimensions
193 × 193 × 47mm

Weight
700g
Without a hard drive.

Operating temperature range
from 0°C to +40°C

Operating humidity
up to 75%

Protection class
IP20

Included

NVR
SmartBracket mounting panel
Power cable
Ethernet cable
Mounting kit
Quick start guide
