The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

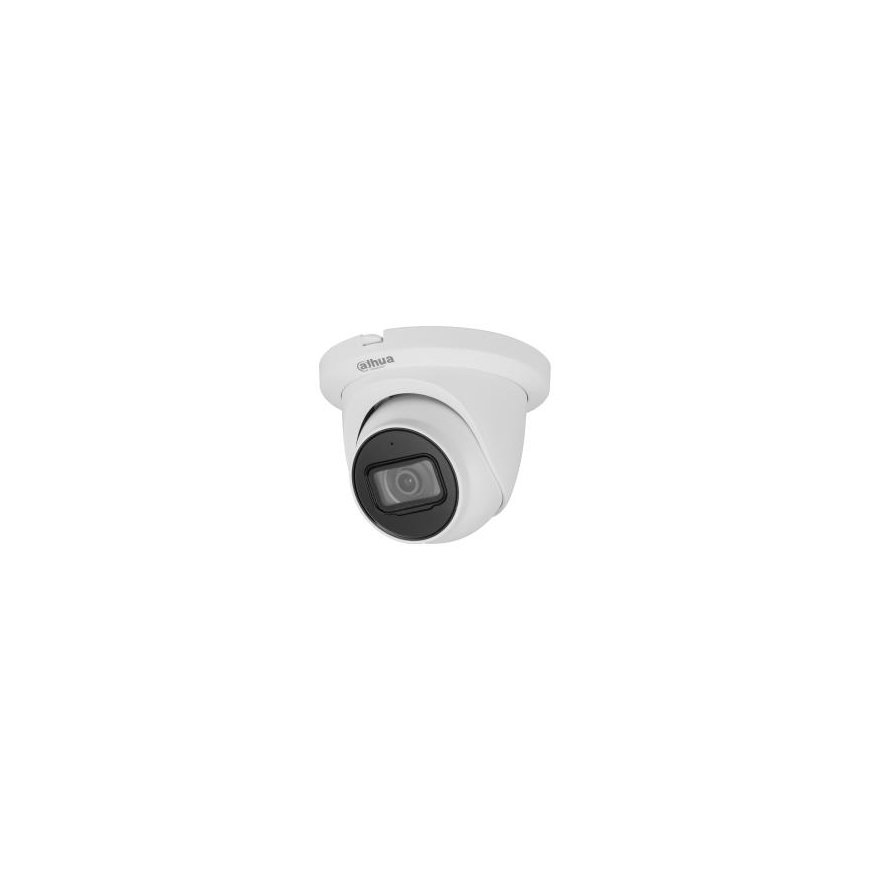

NET CAMERA 5MP IR EYEBALL/HDW5541TM-ASE-0280B-S3 DAHUA
284,00 €
Monthly payment from 8.21 €
2200860 HDW5541TM-ASE-0280B-S3
6923172583468
Shipping 2-3 b.d.
You are interested in this product?
| Alarm In | 1 |
| Alarm Out | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| Camera design | Eyeball |
| Category Code | FNC |
| Colour | White |
| Description | 1/2.7” 5Megapixel progressive CMOS, 2960 × 1668 @ 30FPS max Minimum illumination: 0.0009 lux @F1.6 (Color, 30 IRE); 0.0005 lux @F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) True Day/Night (ICR), BLC/HLC/True WDR 120 dB/3D DNR 2.8 mm fixed lens (111° HFOV) Up to 50 meters IR LED Illumination H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI Built-in MIC, 1/1 Audio I/O, 1/1 Alarm I/O Micro SD card up to 256GB supported Metal core, IP67, -40°C~+60°C, PoE / 12VDC power, 6.8W max With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, people counting, etc. Free IP monitoring software available |
| Dimensions | 99.1 mm × Φ121.9 mm |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Environment | Outdoor |
| Focal Length | 2.8 mm |
| Full Description Line | Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7”|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0009 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power, 6.8W max|Environment Outdoor|Operating temperature range -40°C~+60°C|Colour White|Dimensions 99.1 mm × Φ121.9 mm |
| IR Illumination | Yes |
| Lens Mount | M12 |
| Microphone | Built-in |
| Min. Illumination | 0.0009 Lux |
| Model | IPC-HDW5541TM-ASE-0280B-S3 |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Operating temperature range | -40°C~+60°C |
| Pixel Resolution | 5 Mega Pixel |
| Power consumption | 6.8 Watts |
| Power options | 12V/PoE |
| Power supply requirements | PoE / 12VDC power, 6.8W max |
| RJ45 | 1 |
| Sensor size | 1/2.7” |
| Shipping Box Depth | 58 cm |
| Shipping Box Height | 30 cm |
| Shipping box quantity | 24 |
| Shipping Box Weight | 19.2 kg |
| Shipping Box Width | 48 cm |
| Supports card capacities up to | 256GB |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.15 |
| Unit Brutto Volume | 0.00348 cubm |
| Unit Gross Weight | 0.8 kg |
| Unit Net Weight | 0.5 kg |
| URL | www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HDW5541TM-ASE=S3 |
