Tuotteen sävy ja todellinen väri voivat poiketa kuvassa esitetystä, koska kuvat ovat havainnollistavia. Tuotekuvaus on yleinen eikä välttämättä sisällä kaikkia tuotteen ominaisuuksia.

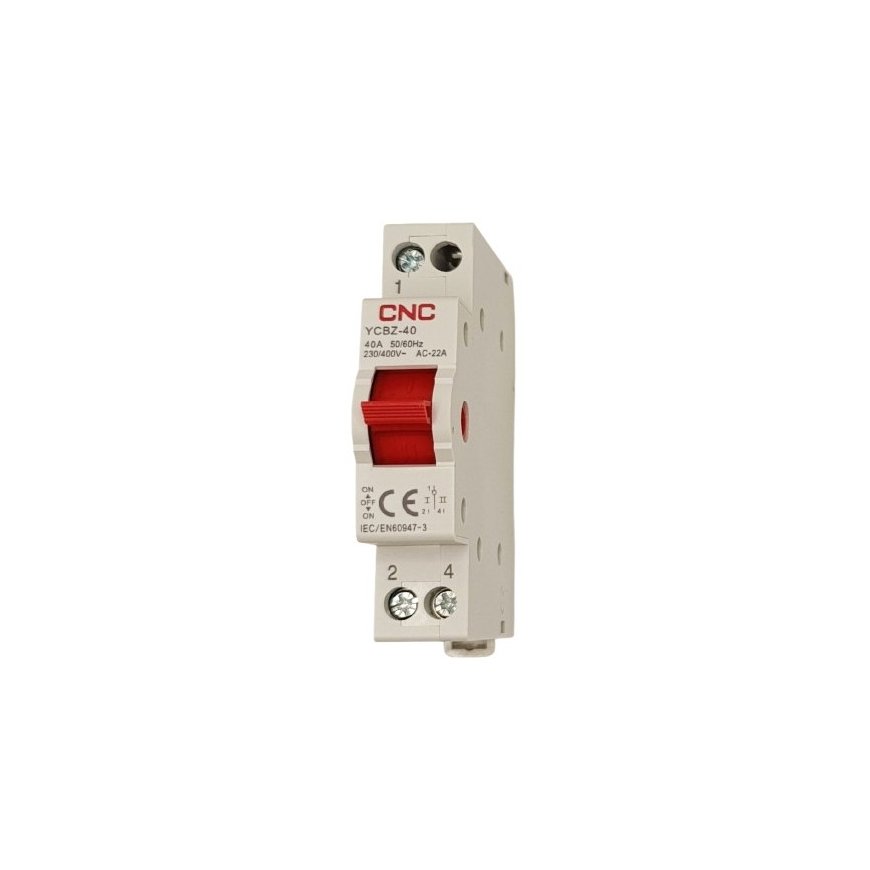

Modulaarinen kytkin CNC YCBZ-40, 1P, 40A, 1-0-2
11.22 €
4174408 EL240357
6942034338251
Shipping 1-2 w.d
Oletko kiinnostunut tästä tuotteesta ?
All about the product
Modular changeover switch, 1P, 40A, 1-0-2Features:The change-over switch can switch on, load and break the circuit under normal conditions, using as switch disconnector.It is an ideal solution when it is necessary to ensure reliable power source switching, for example, between the mains and a backup source (generator or UPS system).Modular three-position load switch is designed for quick switching of the power source in AC 50/60 Hz and 230V/400V electrical circuits.The switch has a common upper contact and a handle for controlling the three-position contact state (1 - 0 - 2).Mounting on Din rail by means of fast clip device.Its design and technical characteristics comply with the requirements of the IEC 60947-3 standard and the applicable electromagnetic compatibility standards for devices.Suitable for use in residential homes, workshops or smaller business facilities.
Technical data:Number of poles: 1.Rated voltage (Ue): AC 230V/ 400V.Maximum voltage: AC 240V/ 415V.Rated current: 40 A.Frequency: 50/60Hz.Contact form: I - 0 - II.Mechanical life: 8500 cycles.Electrical life: 1500 cycles.Mounting: on DIN rail EN60715 (35mm).Cable cross-section area: max. 10mm².Operating temperature: from -5°C to +40°C.Dimensions: 18 x 61 x 77 mm.Protection class: IP20.Colour: white.Standards: IEC 60947-3 / EN 60947-3, cat. AC-22A.
Warranty: 24 months.
